TFE25-XL
Flanged housing unit TFE25-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
25 mm
Bore diameter
H
115 mm
Height flange
U
36.4 mm
Total height unit
Cr
14,900 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
Cur
410 N
Fatigue load limit, radial
≈m
0.83 kg
Weight

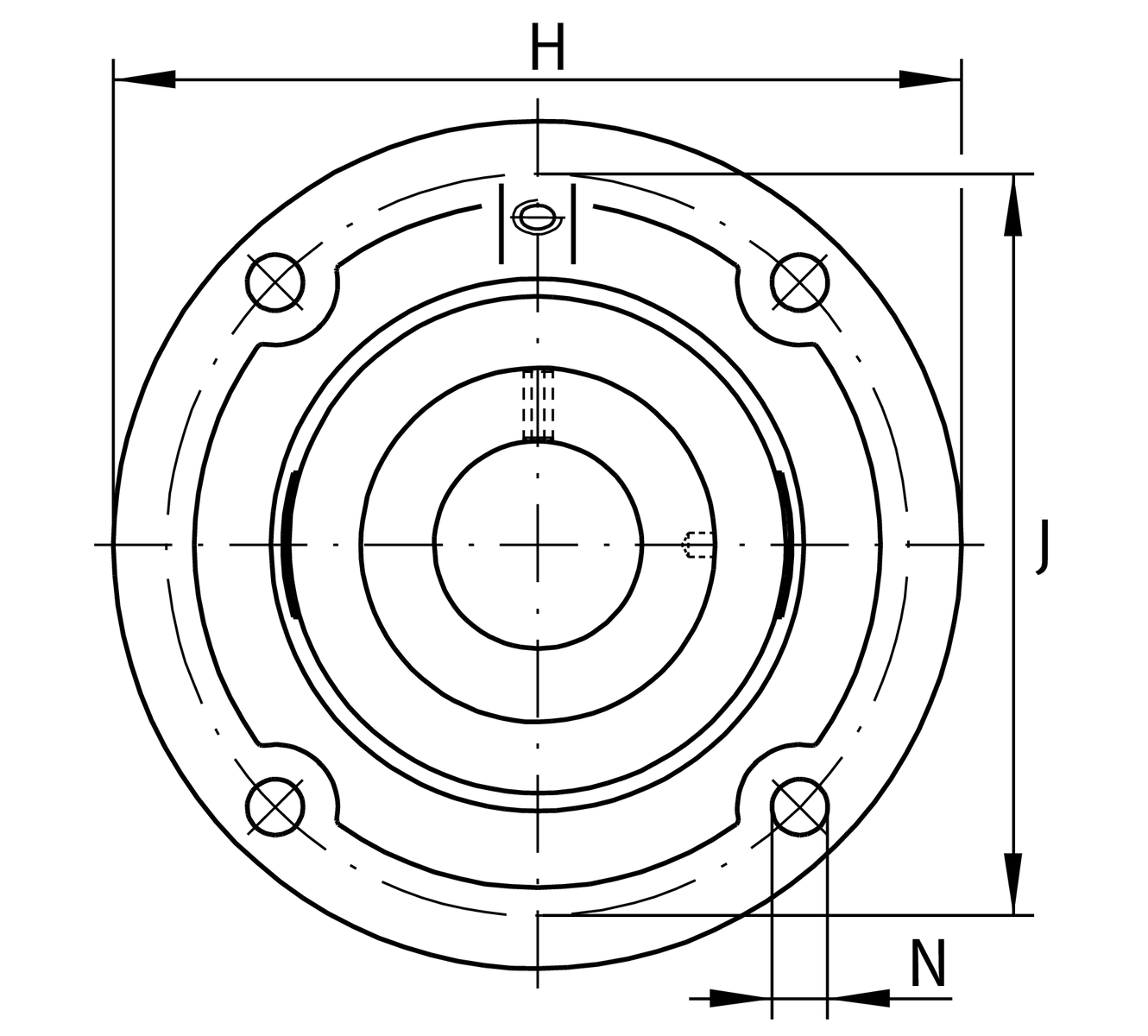

Mounting dimensions
J
92 mm
Distance fixing bore
J
92 mm
Pitch circle diameter (holes)
N
9 mm
Fixing bore
T1
3 mm
Height spigot
Z
75 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

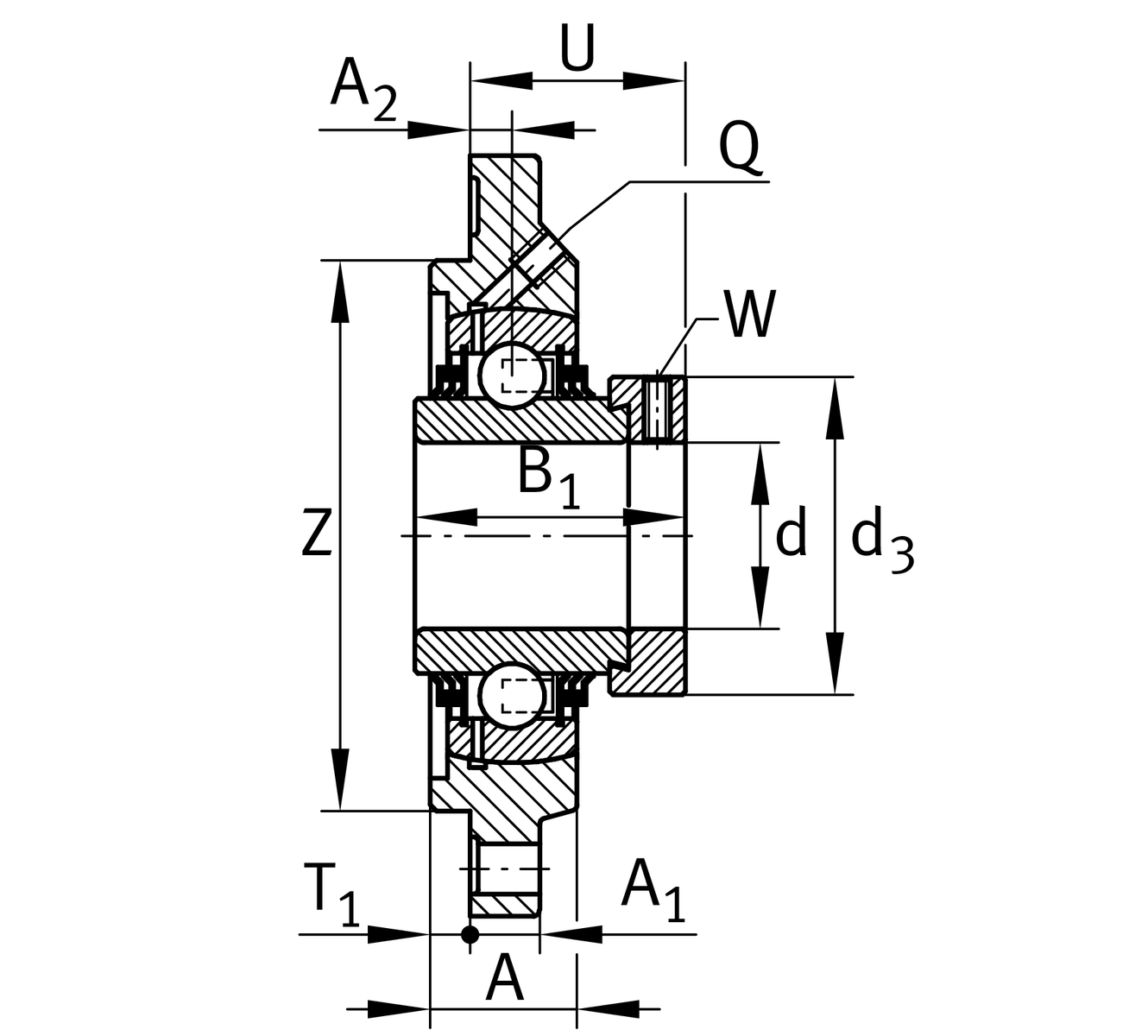

Dimensions
A
22 mm
Height housing
A1
9 mm
Thickness of flange
A2
9.5 mm
Distance raceway
B1
44.5 mm
Locking collar total width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
FE05
Housing
GE25-XL-KTT-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
