Main Dimensions & Performance Data
| d | 101.6 mm | Bore diameter |
| D | 120.65 mm | Outside diameter |
| B | 12.7 mm | Width |
| Cr | 10,400 N | Basic dynamic load rating, radial |
| C0r | 14,400 N | Basic static load rating, radial |
| nG | 2,500 1/min | Limiting speed |
| ≈m | 250 g | Weight |

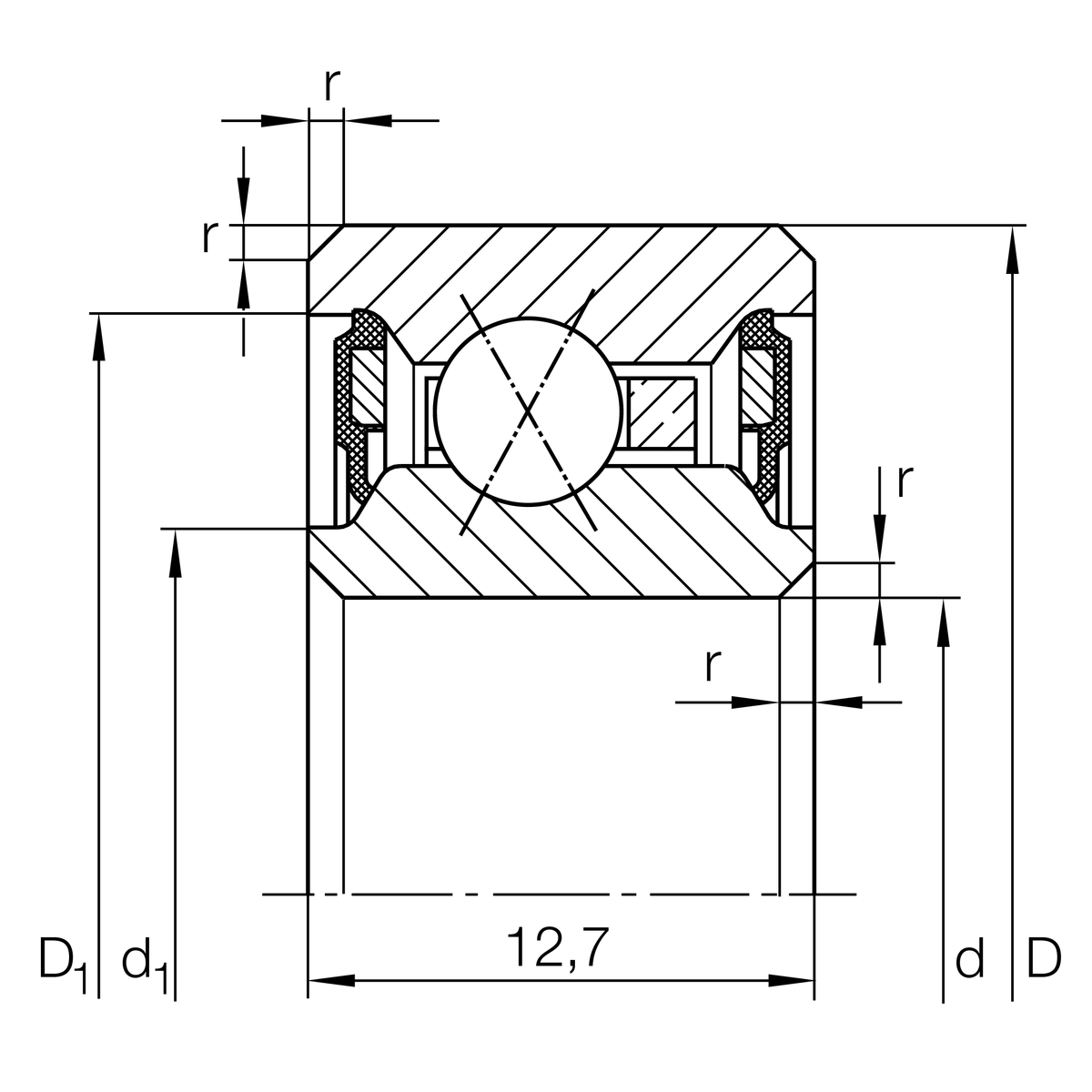

Dimensions
| rmin | 0.38 mm | Minimum chamfer dimension |
| d1 | 108.6 mm | Shoulder diameter inner ring |
| D1 | 113.6 mm | Shoulder diameter outer ring |
| d1 | 105.4 mm | Caliber diameter inner ring |
| D1 | 115.5 mm | Caliber diameter outer ring |
| α | 30 ° | Contact angle |
Temperature range
| Tmin | -25 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Logistical code | HLE | - |
| Sealing | 2RS | Contact seal on both sides |
| Cage | YH | brass sheet metal |
| Tolerance class | PL1 | Class PL1, Normal |
| Lubricant | Lubricating grease | |
| Radial internal clearance | PL1 | Class PL1, Normal |
