Main Dimensions & Performance Data
| D | 52 mm | Outside diameter |
| F | 30 mm | Raceway diameter inner ring |
| C | 17.8 mm | Width, outer ring |
| Cr w | 14,500 N | Basic dynamic load rating, radial |
| C0r w | 20,300 N | Basic static load rating, radial |
| Cur w | 2,950 N | Fatigue load limit, radial |
| nD G | 1,800 1/min | Speed on permanent grease lubrication |
| ≈m | 0.209 kg | Weight |

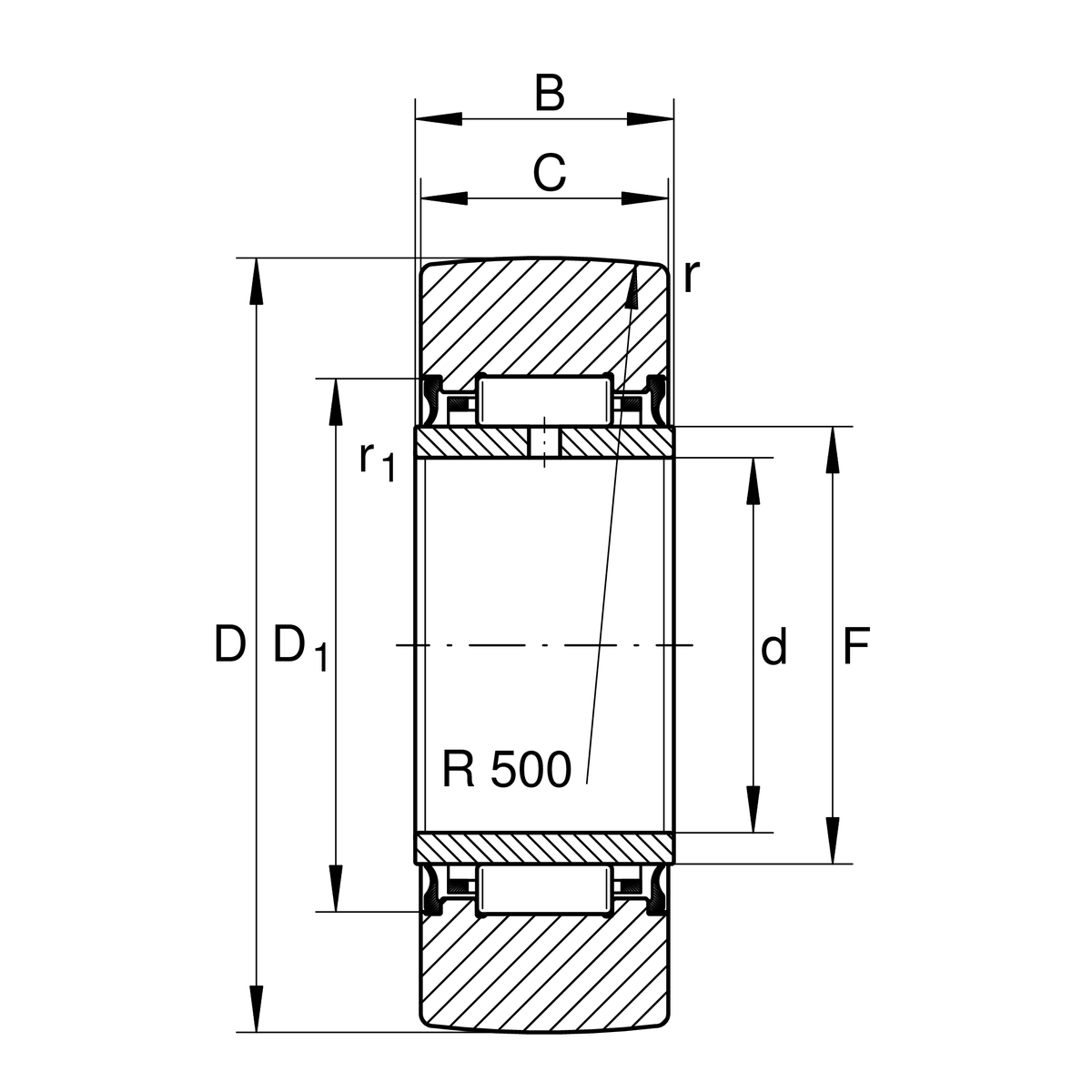

Dimensions
| d | 25 mm | Bore diameter |
| B | 18 mm | Width of the bearing |
| D1 min | 38 mm | Minimum mounting dimension |
| rmin | 1 mm | Minimum chamfer dimension |
| r1 min | 0.3 mm | Minimum chamfer dimension |
| R | 500 mm | Radius of outer ring outside profile |
Your current product variant
| Sealing | 2RSR | Lip seal on both sides |
| Outer Ring profile | R500 | R500 |
| Relubrication feature | IR | Via inner ring lubrication hole |
