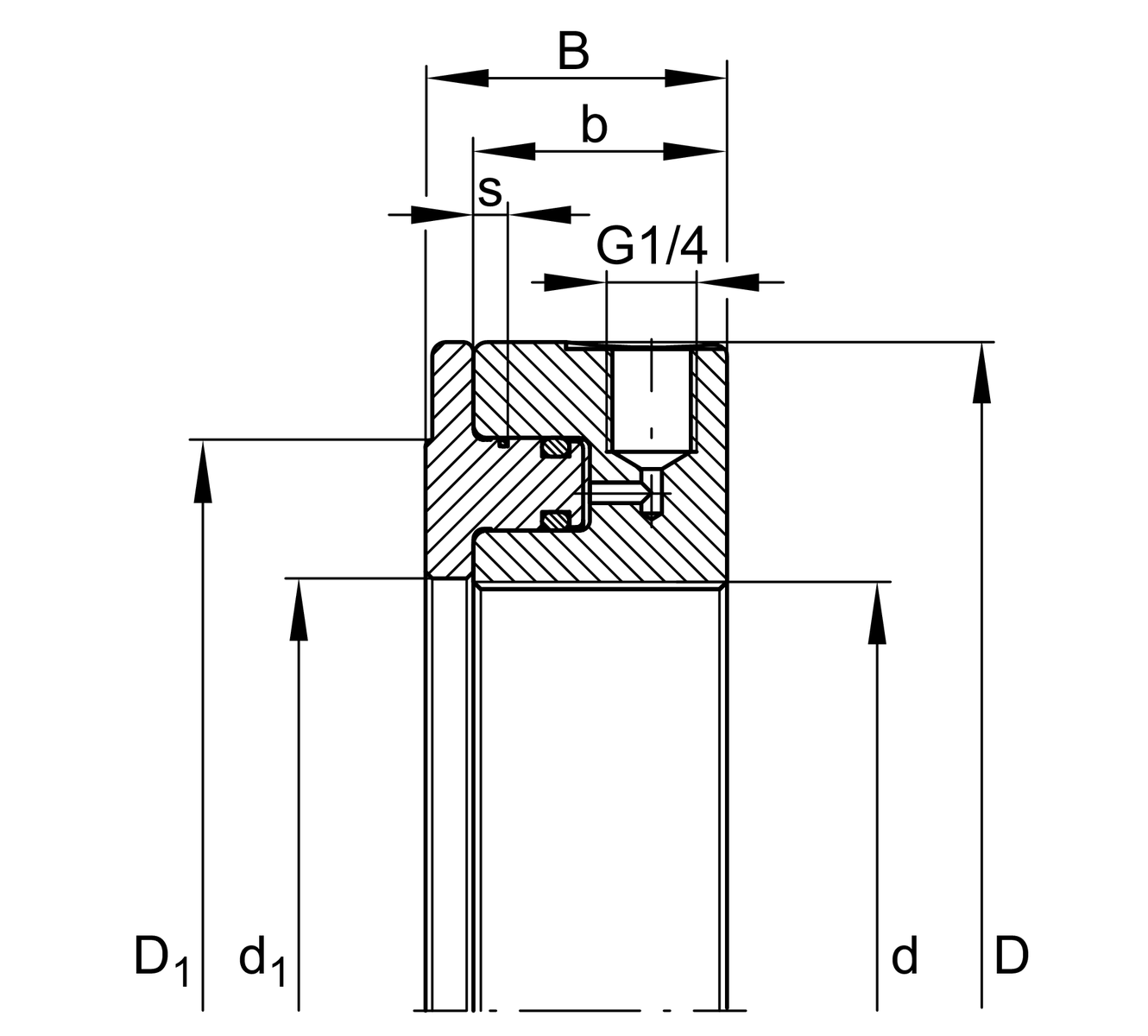

Technical data
| d | 99.517 mm | Thread nominal diameter |
98.143 mm | Thread flank diameter | |
UN | Thread type | |
12 | Number of thread convolutions per inch | |
| D | 170 mm | Outer Diameter |
| B | 41 mm | Width |
| b | 37 mm | Width press ring |
| D1 | 142 mm | |
| d1 | 101 mm | |
| s | 5 mm | Stroke, max. |
54.5 cm² | Piston surface | |
700 bar | Pressure, max. | |
381 kN | Drive-up force, max. | |
| ≈m | 4.87 kg | Weight |
Additional information
1 pc. Hydraulic nut, 3 pcs. Clamping screws, 1 pc. Screw plug, 1 pc. Connection nipple, 3 pcs. to 5 pcs. Threaded pins, 1 pc. Hand lever, 1 pc. Replacement seal set, 1 pc. User manual | Scope of delivery |
Your current product variant
| Series | E-INCH | inch thread by UN/ACME standard |
