FAG INA Schaeffler
INA
GE25-XL-KRR-B-AS2/V
Radial insert ball bearing GE25-XL-KRR-B-AS2/V
Thêm vào yêu cầu báo giá

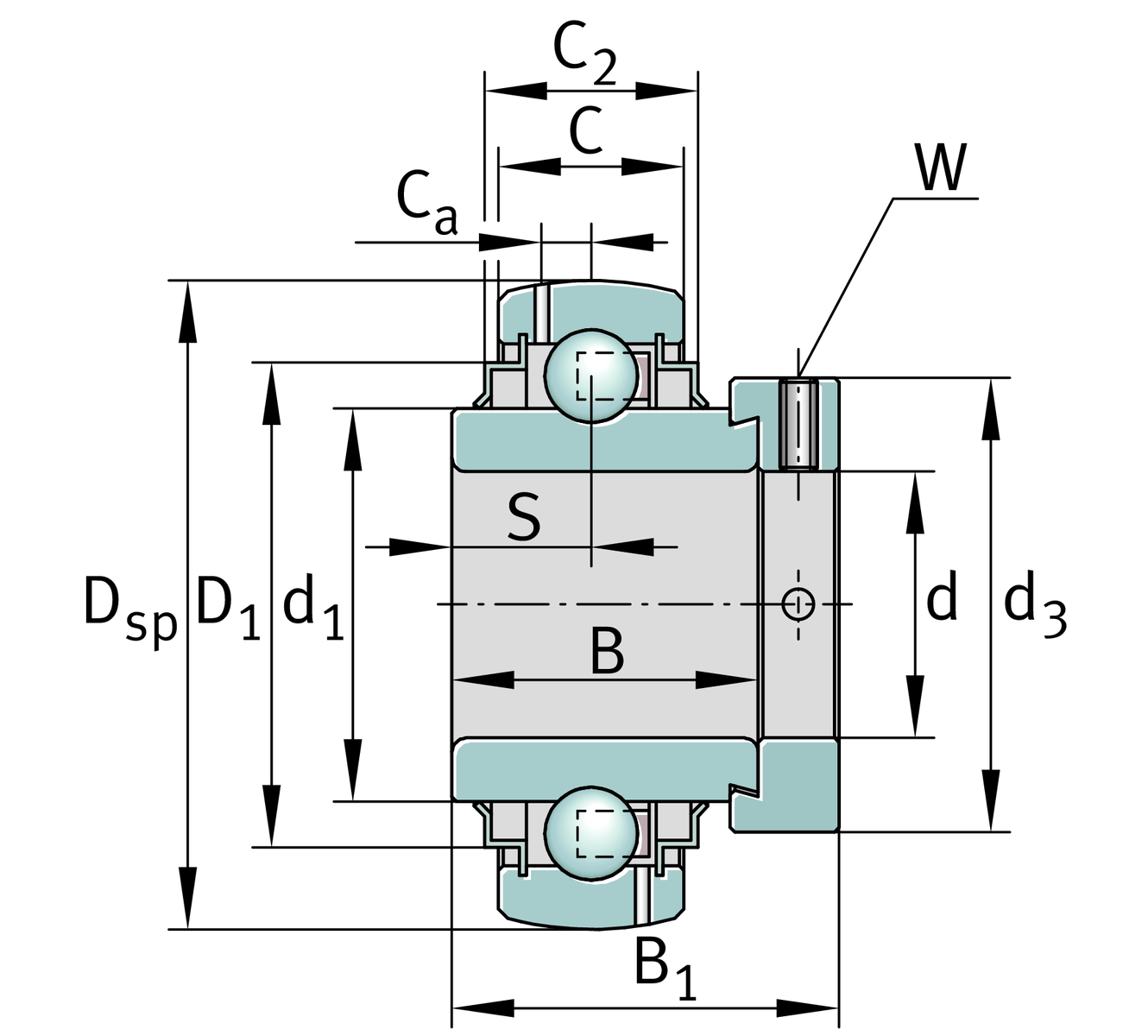

Main Dimensions & Performance Data
d
25 mm
Bore diameter
DSP
52 mm
Outside diameter
B
34.9 mm
Width
B1
44.5 mm
Locking collar total width
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
0.236 kg
Weight

Dimensions
C
15 mm
Width, outer ring
d3
37.5 mm
Outside diameter locking collar/locknut
W
3 mm
Width of flats

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
