GE25-AW
Spherical plain bearing GE25-AW
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
25 mm
Bore diameter bearing
D
62 mm
Outside diameter bearing
T
22.5 mm
Height
B
16 mm
Width Inner ring
Ca
388,000 N
Basic dynamic load rating, axial
C0a
646,000 N
Basic static load rating, axial
≈m
0.377 kg
Weight

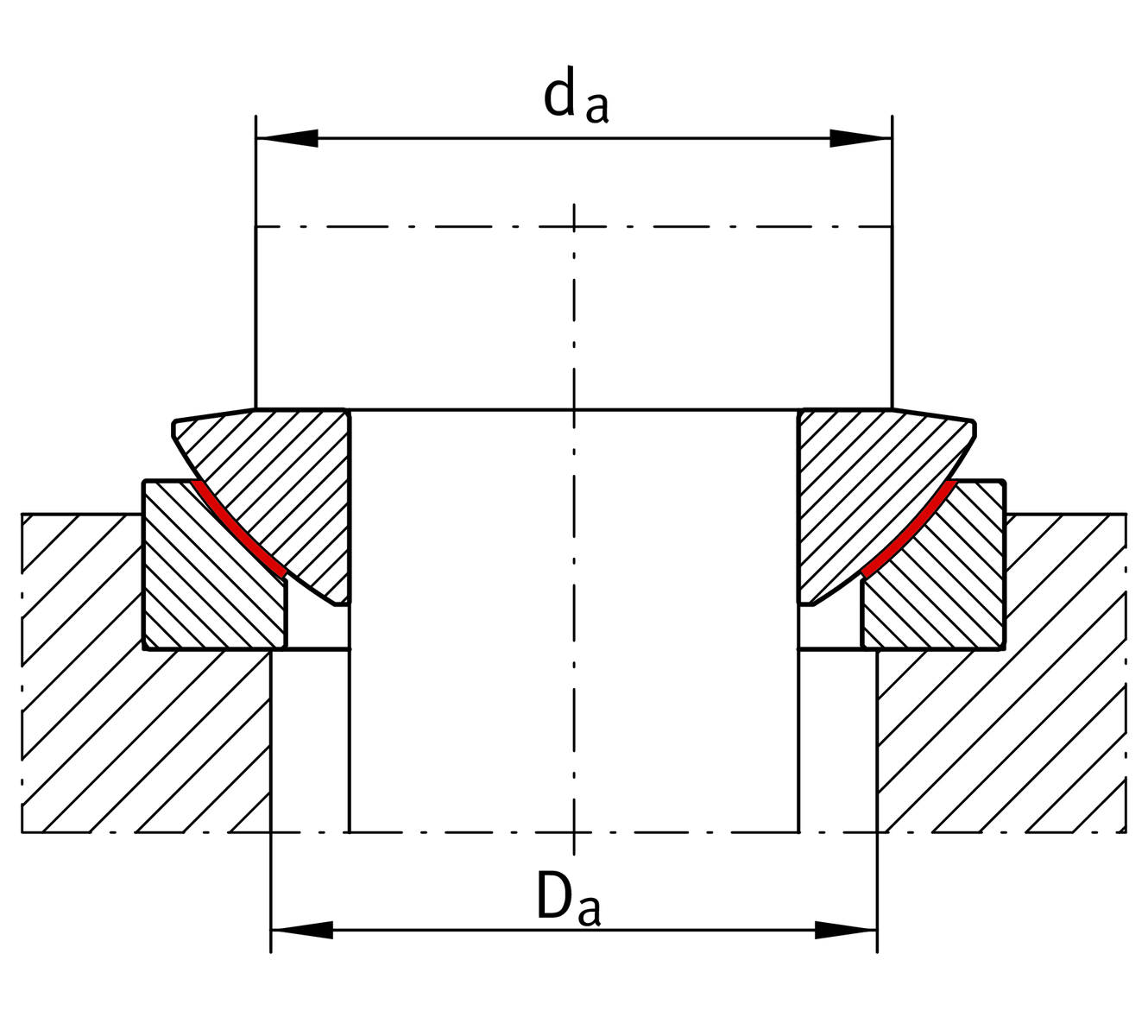

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
45 mm
Connection measure Inner ring
Da min
39 mm
Housing Connection Diameter

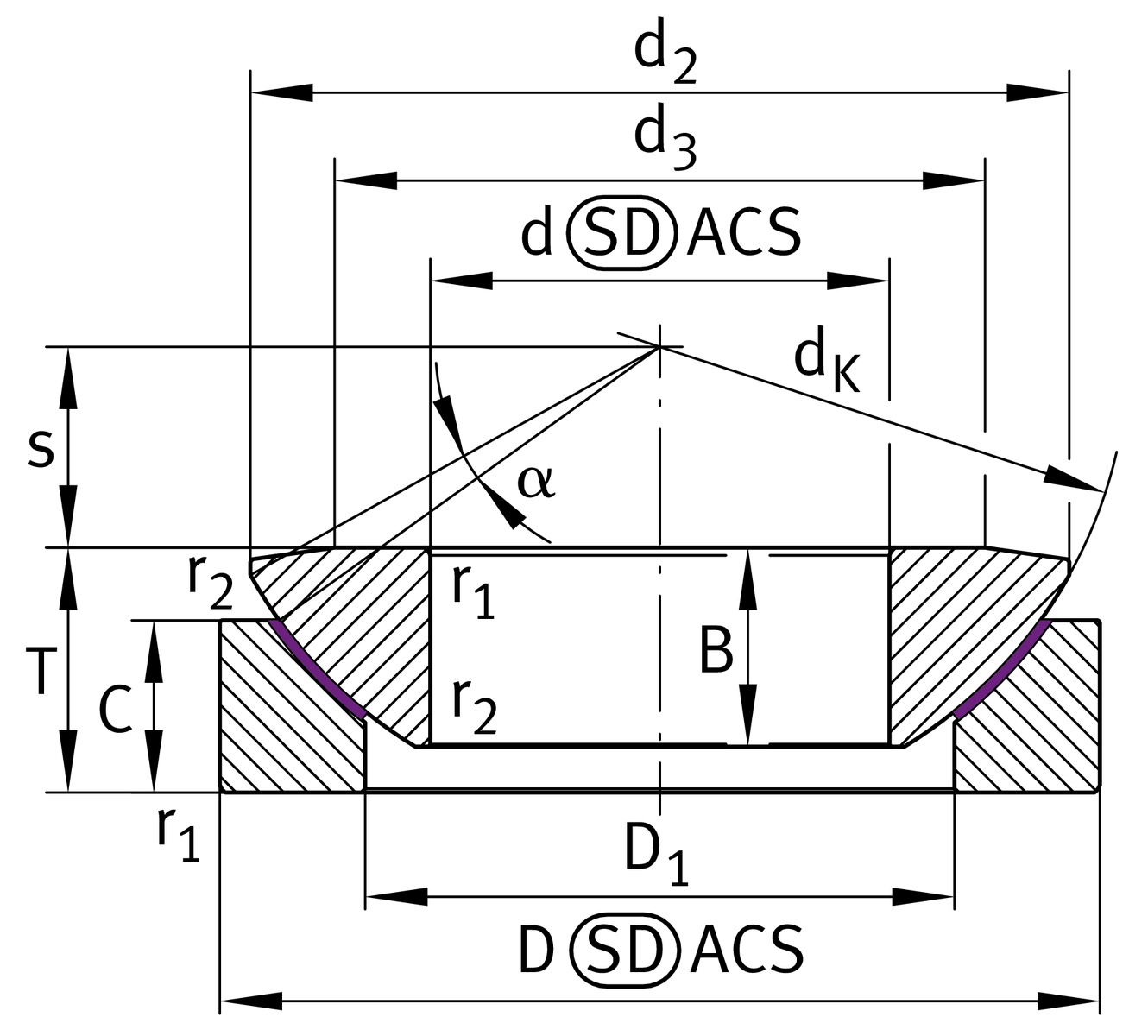

Dimensions
dK
66 mm
Ball diameter
d2
57.5 mm
Outer eye diameter
d3
45 mm
Front surface diameter of shaft washer
D1
34.5 mm
Bore diameter of housing washer
C
17 mm
Width Outer ring
s
14 mm
Plane Surface Spacing
α
7 °
Tilt angle
dOT
0 mm
Bore diameter bearing, upper tolerance
dUT
-0.01 mm
Bore diameter bearing, lower tolerance
DOT
0 mm
Outside diameter, upper tolerance
DUT
-0.013 mm
Outside diameter, lower tolerance
TOT
0 mm
Height, upper tolerance
BOT
0 mm
Width inner ring, upper tolerance
TUT
-0.4 mm
Height, lower tolerance
BUT
-0.24 mm
Width inner ring, lower tolerance
COT
0 mm
Width outer ring, upper tolerance
CUT
-0.24 mm
Width outer ring, lower tolerance

Temperature range
Tmin
-50 °C
Operating temperature min.
Tmax
150 °C
Operating temperature max.

Your current product variant
FabricELGOGLIDEELGOGLIDE
