Main Dimensions & Performance Data
| d | 100 mm | Bore diameter |
| DSP | 180 mm | Outside diameter |
| B | 57.5 mm | Width |
| Cur | 4,100 N | Fatigue load limit, radial |
| B1 | 75 mm | Locking collar total width |
| Cr | 122,000 N | Basic dynamic load rating, radial |
| C0r | 93,000 N | Basic static load rating, radial |
| ≈m | 5 kg | Weight |

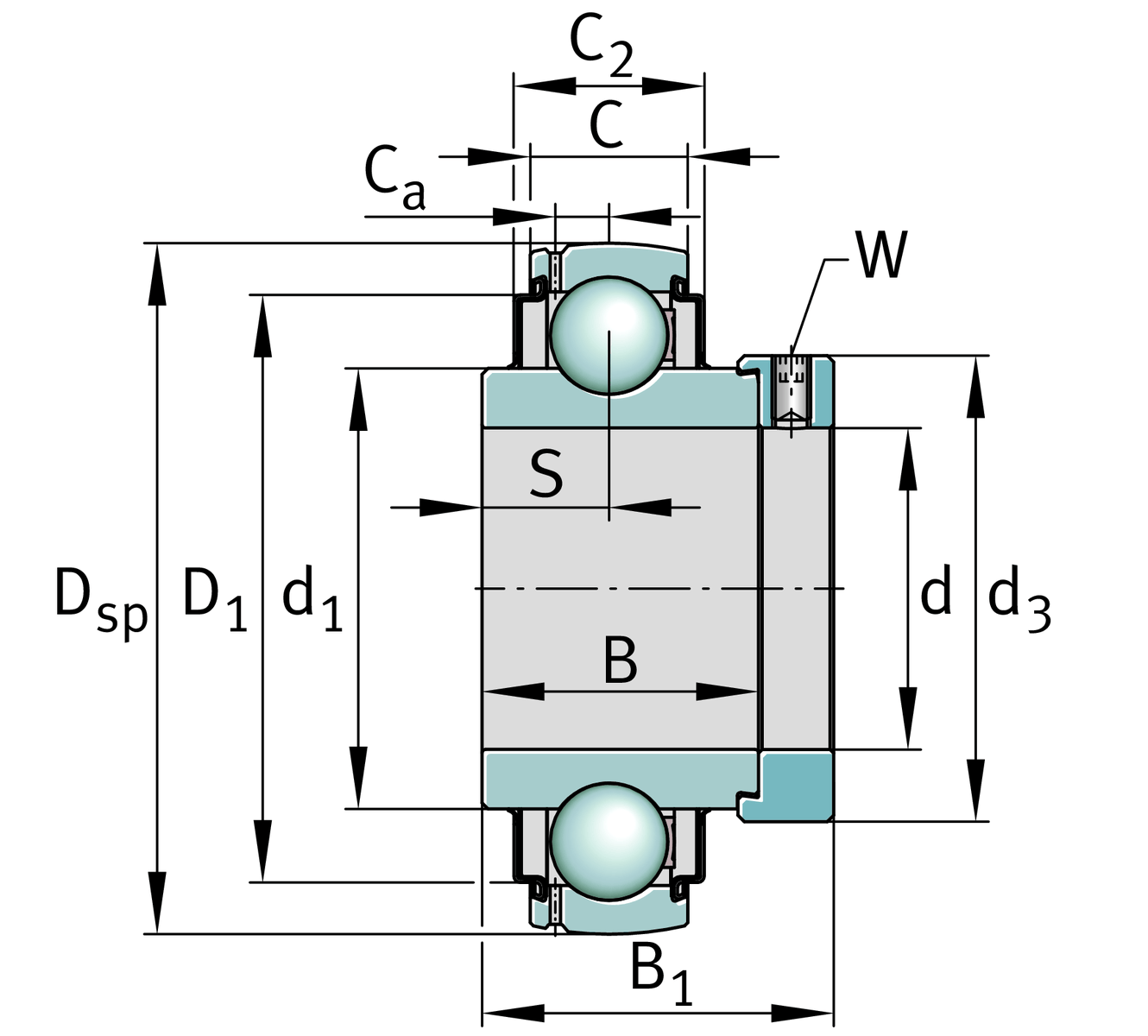

Dimensions
| C | 36 mm | Width, outer ring |
| C2 | 39 mm | Sealing total width |
| S | 25.5 mm | Distance raceway |
| d1 | 122.2 mm | Rib diameter inner ring |
| D1 | 155.5 mm | Outside diameter seal |
| Ca | 11.2 mm | Distance to lubrication hole |
| d3 | 132 mm | Outside diameter locking collar/locknut |
| W | 6 mm | Width of flats |
Calculation factors
| f0 | 14.4 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
| Shape of outer surface | B |
