GE100-AX
Spherical plain bearing GE100-AX
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
100 mm
Inner diameter bearing
D
210 mm
Outside diameter bearing
T
59 mm
Height
Ca
1,200,000 N
Basic dynamic load rating, axial
C0a
6,020,000 N
Basic static load rating, axial
≈m
10.76 kg
Weight

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
155 mm
Connection measure Inner ring
Da min
141 mm
Housing Connection Diameter

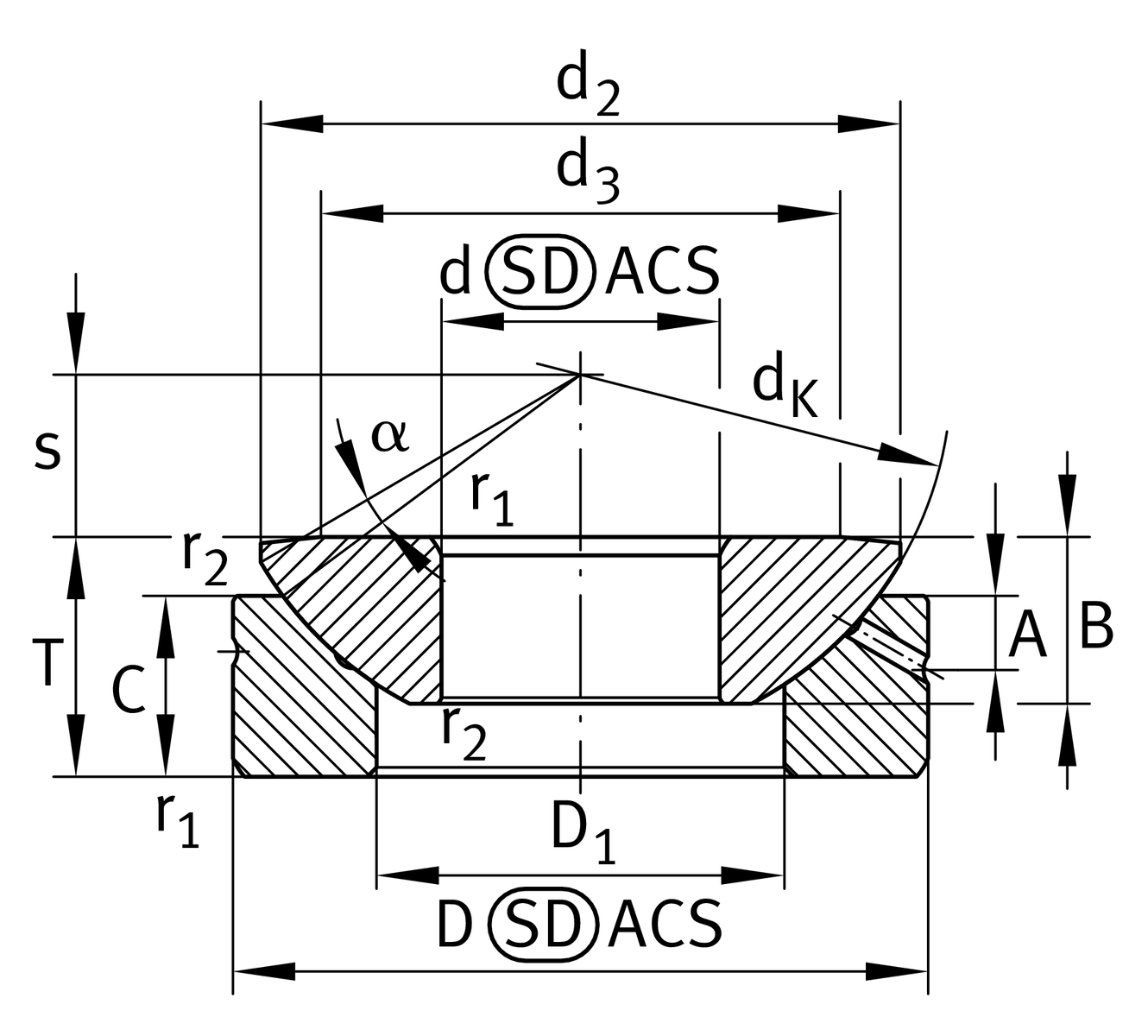

Dimensions
dK
220 mm
Ball diameter
d3
155
Front surface diameter of shaft washer
D1
133 mm
Inner diameter of housing washer
B
50 mm
Width Inner ring
C
42 mm
Width Outer ring
s
45 mm
Plane Surface Spacing
A
15 mm
Distance lubrication Bore
α
7 °
Tilt angle
dOT
0 mm
Bore diameter bearing, upper tolerance
dUT
-0.02 mm
Bore diameter bearing, lower tolerance
DOT
0 mm
Outer diameter, upper tolerance
DUT
-0.03 mm
Outside diameter, lower tolerance
TOT
0 mm
Height, upper tolerance
TUT
-0.4 mm
Height, lower tolerance
CUT
0 mm
Width outer ring, upper tolerance
COT
-0.4 mm
Width outer ring, lower tolerance
BOT
0 mm
Width inner ring, upper tolerance
BUT
-0.4 mm
Width inner ring, lower tolerance
d2
195.5 mm
Connection measure Inner ring

Temperature range
Tmin
-60 °C
Operating temperature min.
Tmax
200 °C
Operating temperature max.
