E25-XL-KRR-B
Radial insert ball bearing E25-XL-KRR-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
25 mm
Bore diameter
DSP
52 mm
Outside diameter
B
34.9 mm
Width
Cur
410 N
Fatigue load limit, radial
B1
44.5 mm
Locking collar total width
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
0.24 kg
Weight

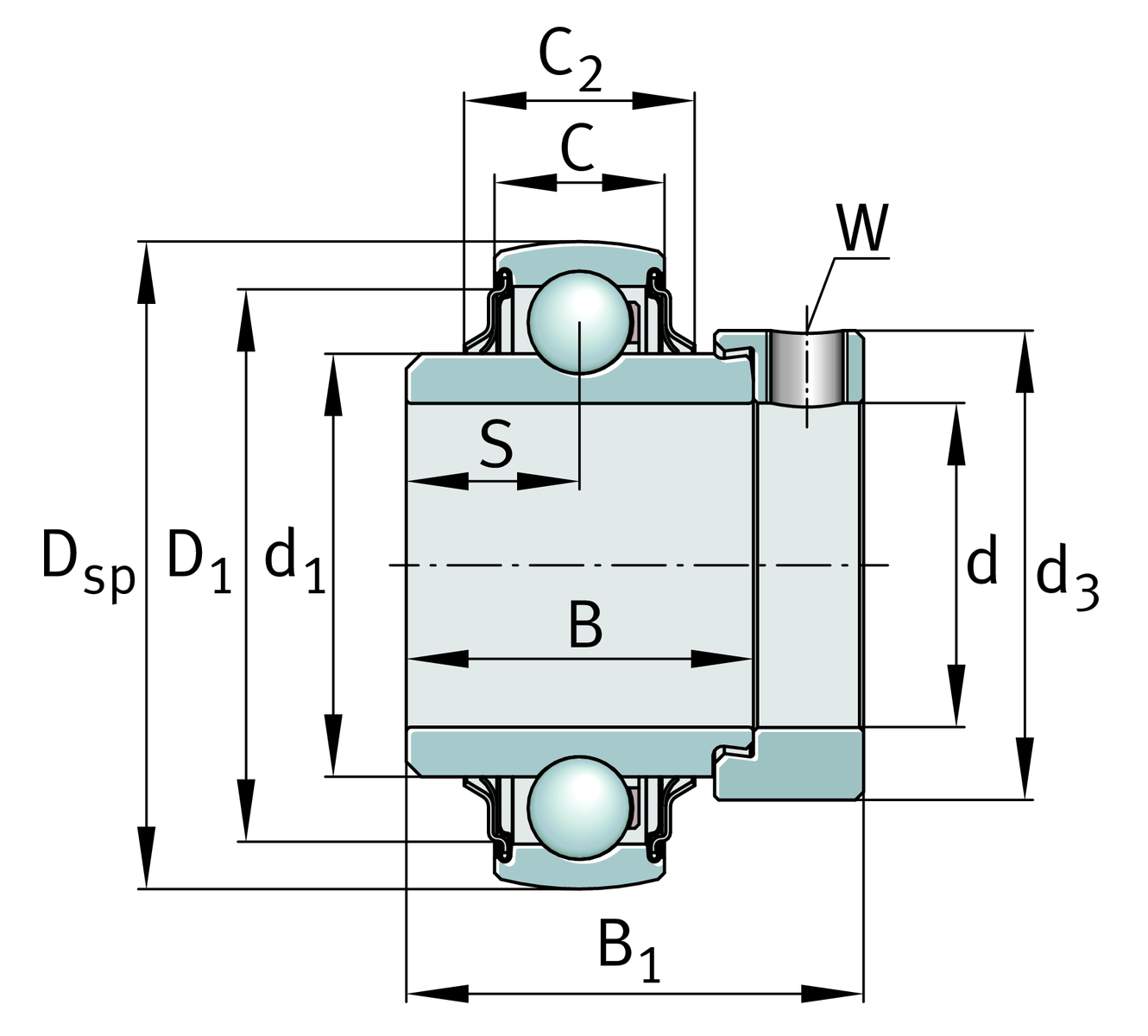

Dimensions
C
15 mm
Width, outer ring
C2
16.7 mm
Sealing total width
S
17.5 mm
Distance raceway
d1
33.8 mm
Rib diameter inner ring
D1
42.5 mm
Outside diameter seal
d3
37.5 mm
Outside diameter locking collar/locknut
W
3 mm
Width of flats

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
