GLCTE25-XL

Flanged housing unit GLCTE25-XL

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	25 mm	Bore diameter
L	71 mm	Flange width
H	97 mm	Height flange
U	33.4 mm	Total height unit
C_r	14,000 N	Basic dynamic load rating, radial
C_0r	7,800 N	Basic static load rating, radial
C_ur	370 N	Fatigue load limit, radial
≈m	0.47 kg	Weight

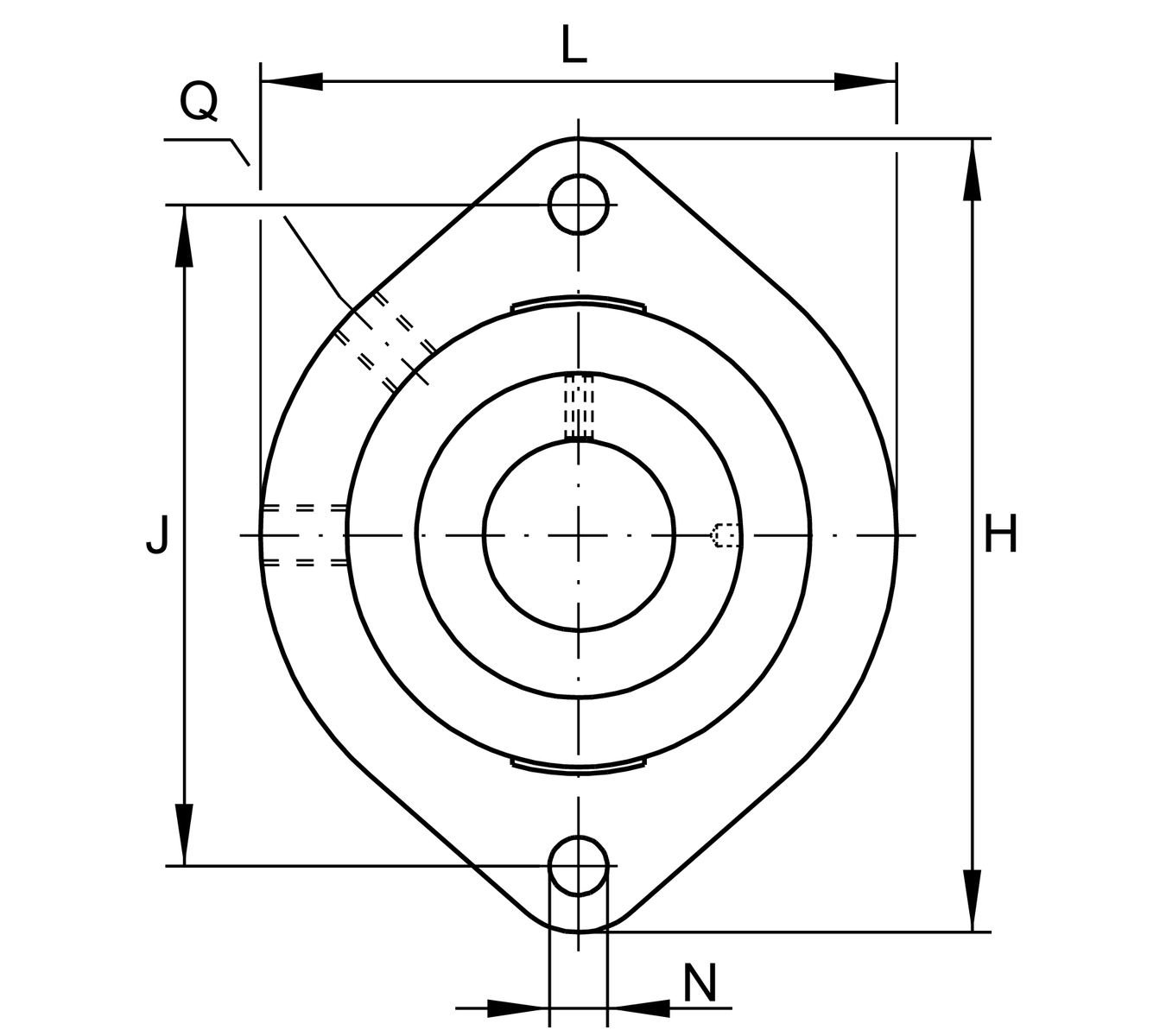

Mounting dimensions

J	76.2 mm	Distance fixing bore
N	9 mm	Fixing bore
W	3 mm	Width across flats
n	2	Number of screwing holes

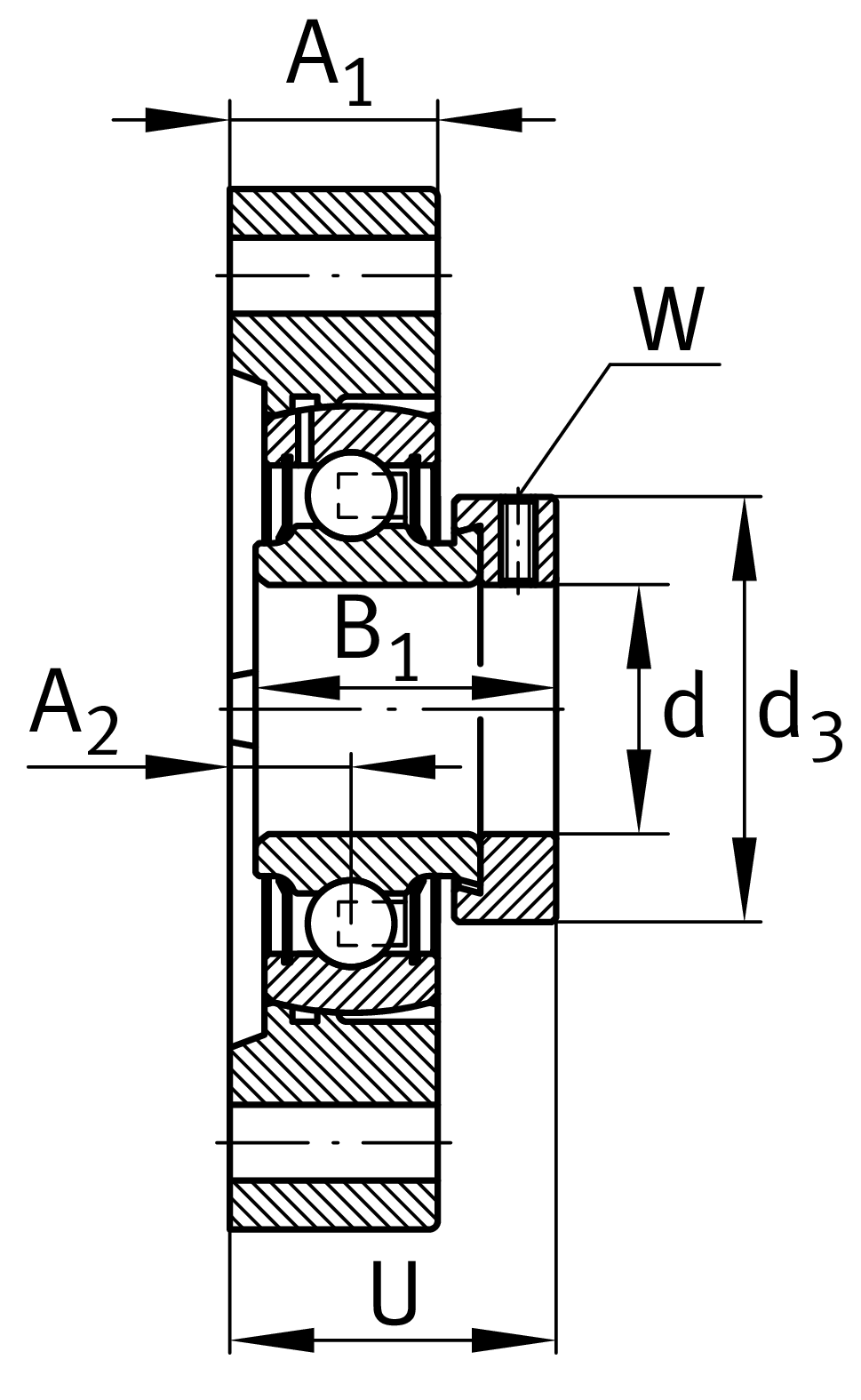

Dimensions

A₁	19.5 mm	Thickness of flange
A₂	9.9 mm	Distance raceway
B₁	31 mm	Locking collar total width
Q	M6	Connection thread for lubrication
d₃	37.5 mm	Outside diameter eccentric locking collar

Additional information

	GEHGLCTE05-GG	Housing
	GRAE25-NPP-B-OSE	Bearing designation

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	100 °C	Operating temperature max.

Your current product variant

Material	GG	Grey cast iron
