Main Dimensions & Performance Data
| d | 130 mm | Bore diameter |
| D | 280 mm | Outside diameter |
| B | 93 mm | Width |
| Cr | 1,260,000 N | Basic dynamic load rating, radial |
| C0r | 1,380,000 N | Basic static load rating, radial |
| Cur | 225,000 N | Fatigue load limit, radial |
| nG | 1,810 1/min | Limiting speed |
| nϑr | 1,040 1/min | Reference speed |
| ≈m | 27.8 kg | Weight |

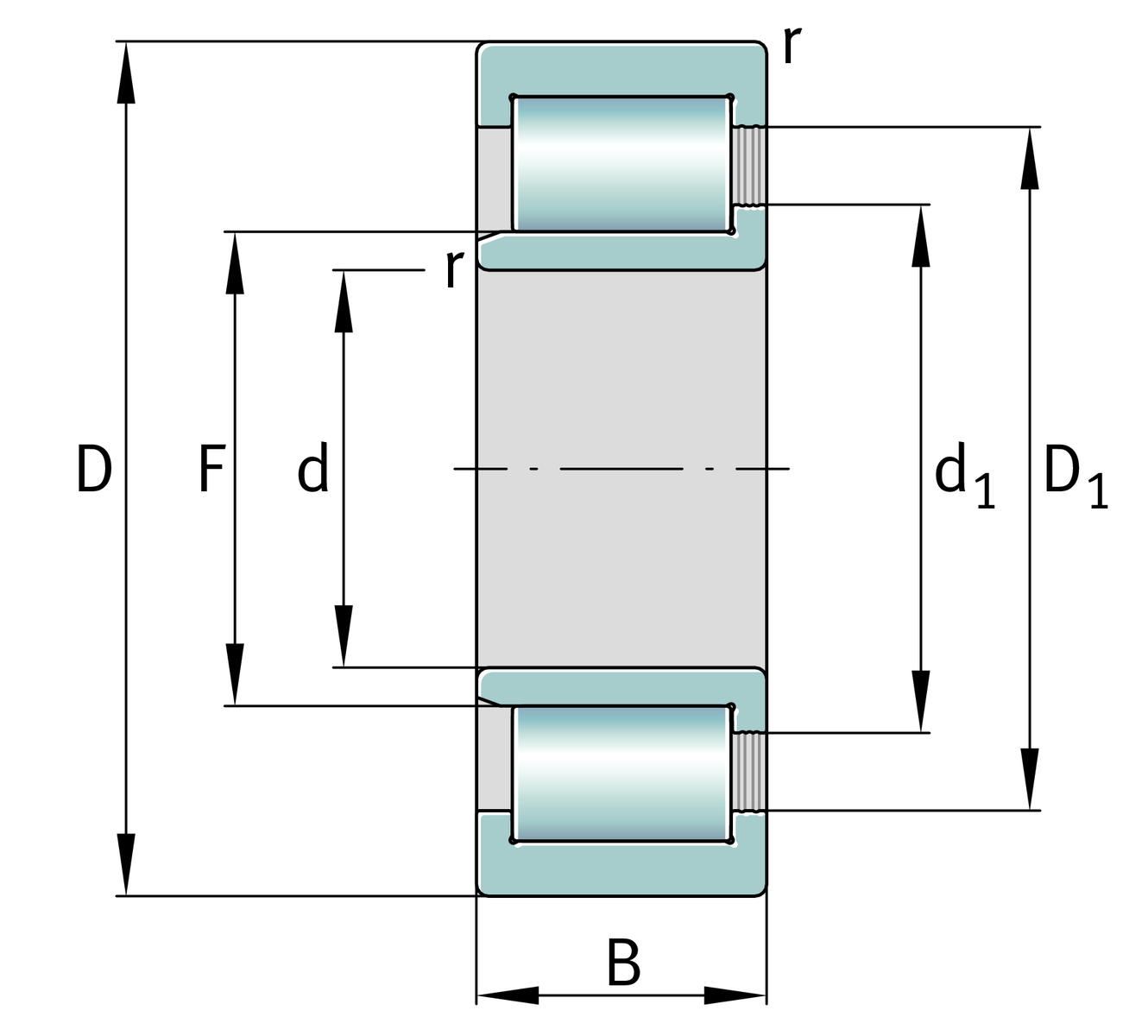

Dimensions
| D1 | 227.9 mm | Shoulder diameter outer ring |
| Da max | 227.5 mm | Maximum diameter of housing shoulder |
| d1 | 176 mm | Shoulder diameter inner ring |
| da min | 157.5 mm | Minimum diameter shaft shoulder |
| dc min | 176 mm | Minimum shaft shoulder |
| F | 157.9 mm | Raceway diameter inner ring |
| ra max | 4 mm | Maximum fillet radius |
| rmin | 4 mm | Minimum chamfer dimension |
| s | 5 mm | Axial displacement |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Number of rolling element rows | 1 | Single-row design |
