Main Dimensions & Performance Data
| d | 130 mm | Bore diameter |
| D | 165 mm | Outside diameter |
| B | 35 mm | Width |
| Cr | 134,000 N | Basic dynamic load rating, radial |
| C0r | 310,000 N | Basic static load rating, radial |
| Cur | 49,500 N | Fatigue load limit, radial |
| nG | 3,250 1/min | Limiting speed |
| nϑr | 1,930 1/min | Reference speed |
| ≈m | 1.781 kg | Weight |

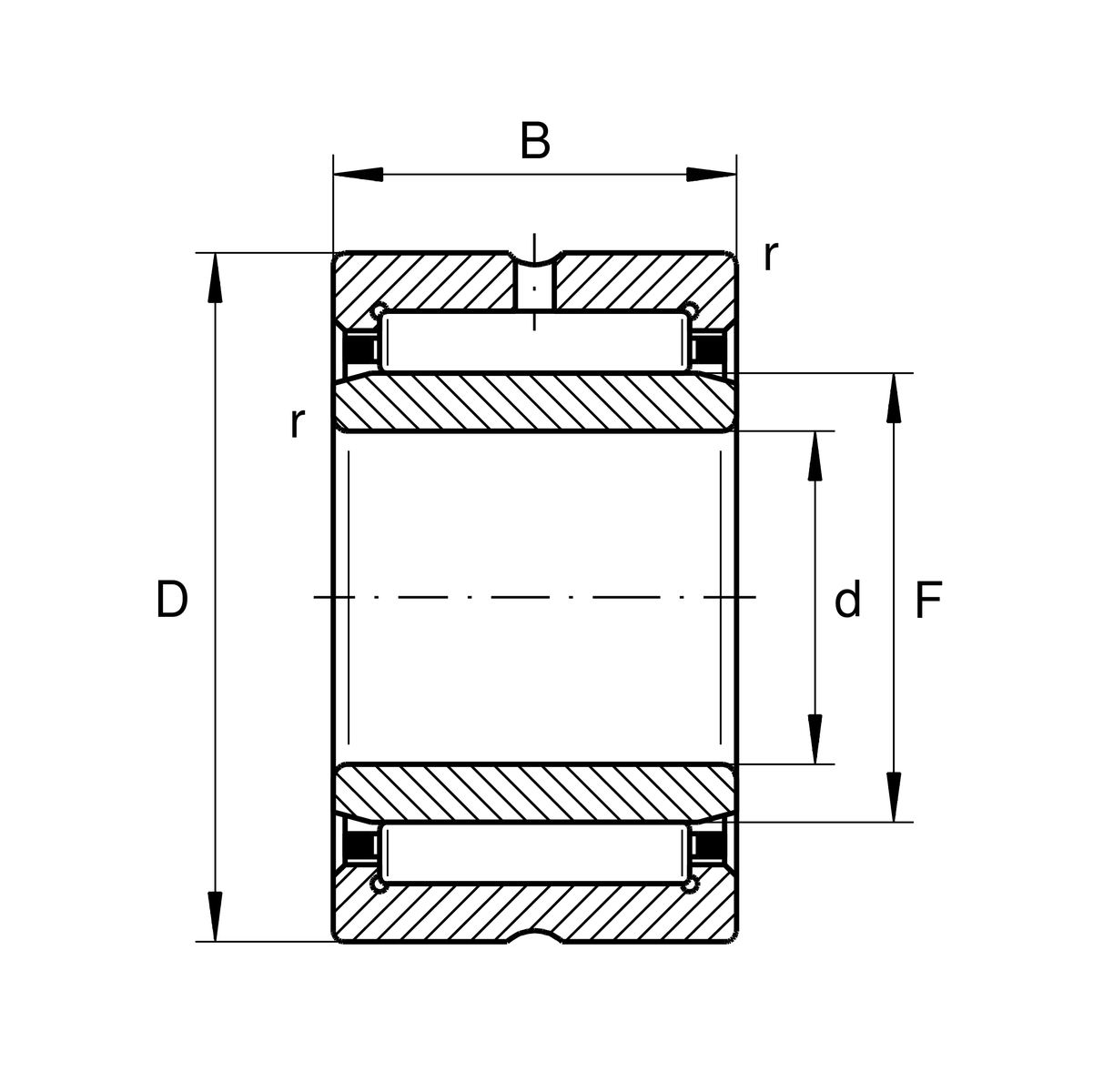

Dimensions
| F | 145 mm | Raceway diameter inner ring |
| rmin | 1.1 mm | Minimum chamfer dimension |

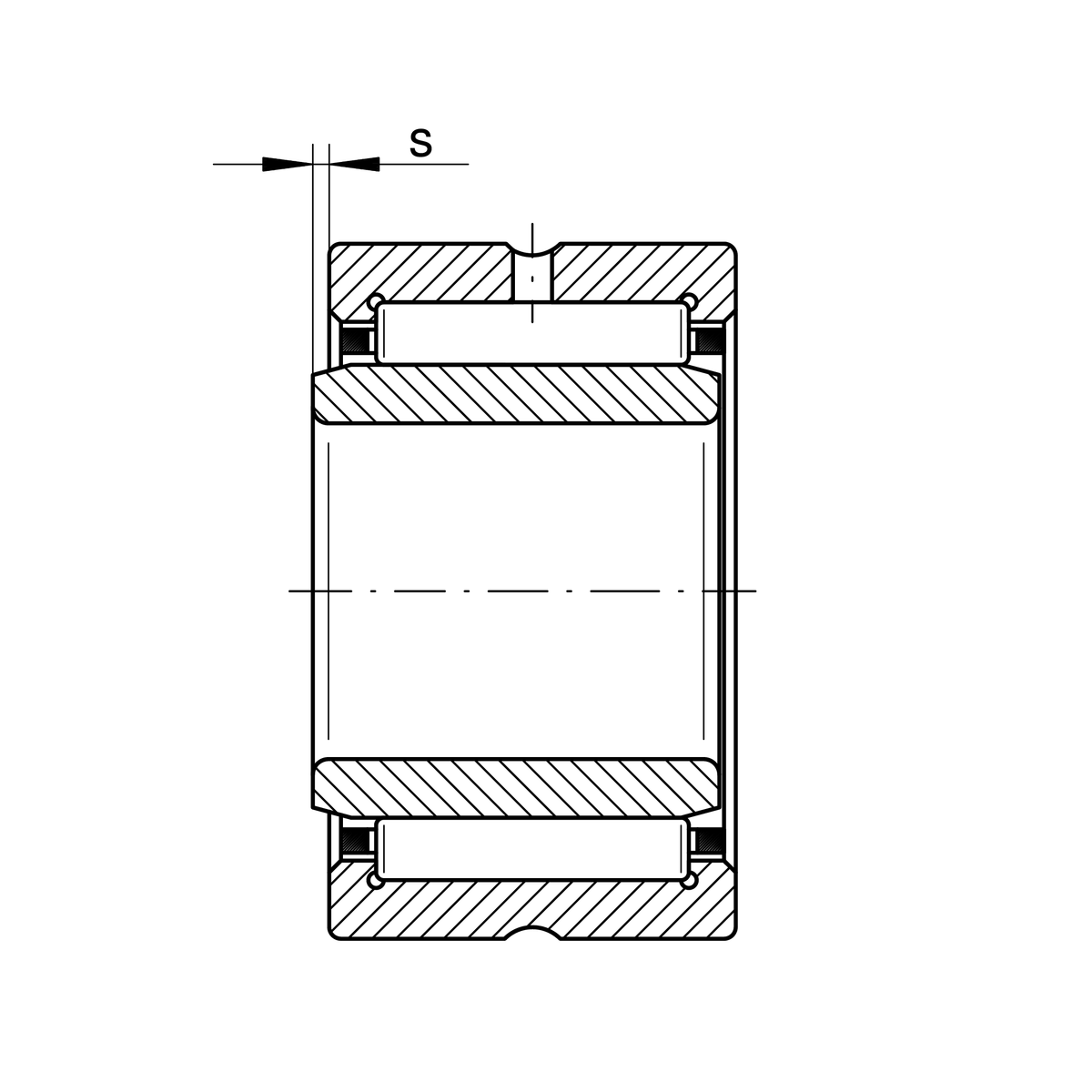

| s | 1 mm | Axial displacement |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Cage | Standard | Standard |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Tolerance class | PN | Normal (PN) |
| Lubrication hole | with | |
| Coating | Without | |
| Lubricant | Without | |
| Assorted bearings | 3S | 3 bearings sorted together |
