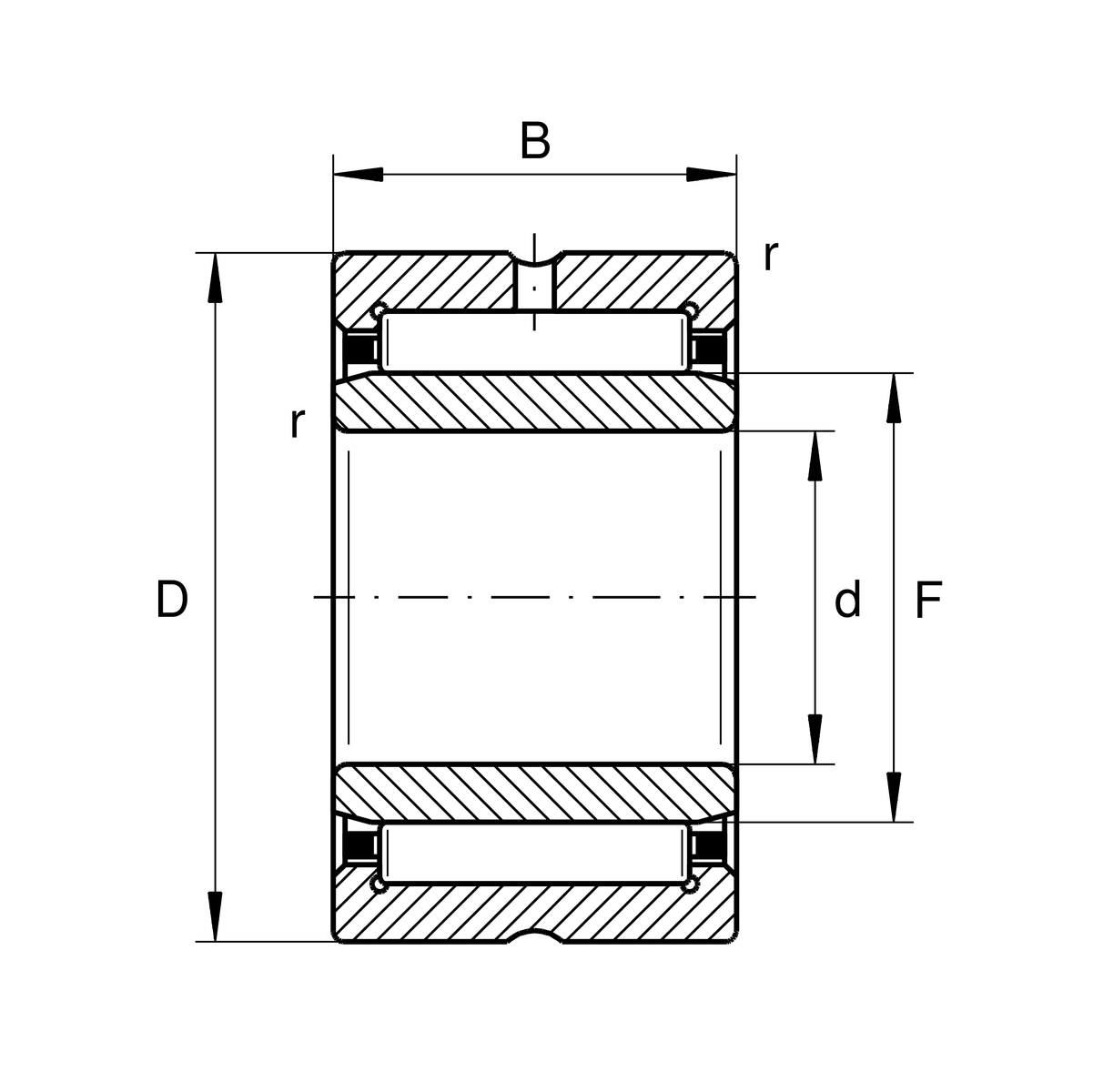

Main Dimensions & Performance Data
| d | 22 mm | Bore diameter |
| D | 34 mm | Outside diameter |
| B | 16 mm | Width |
| Cr | 17,300 N | Basic dynamic load rating, radial |
| C0r | 23,600 N | Basic static load rating, radial |
| Cur | 4,450 N | Fatigue load limit, radial |
| nG | 17,200 1/min | Limiting speed |
| nϑr | 9,500 1/min | Reference speed |
| ≈m | 52.2 g | Weight |
Dimensions
| F | 26 mm | Raceway diameter inner ring |
| rmin | 0.3 mm | Minimum chamfer dimension |

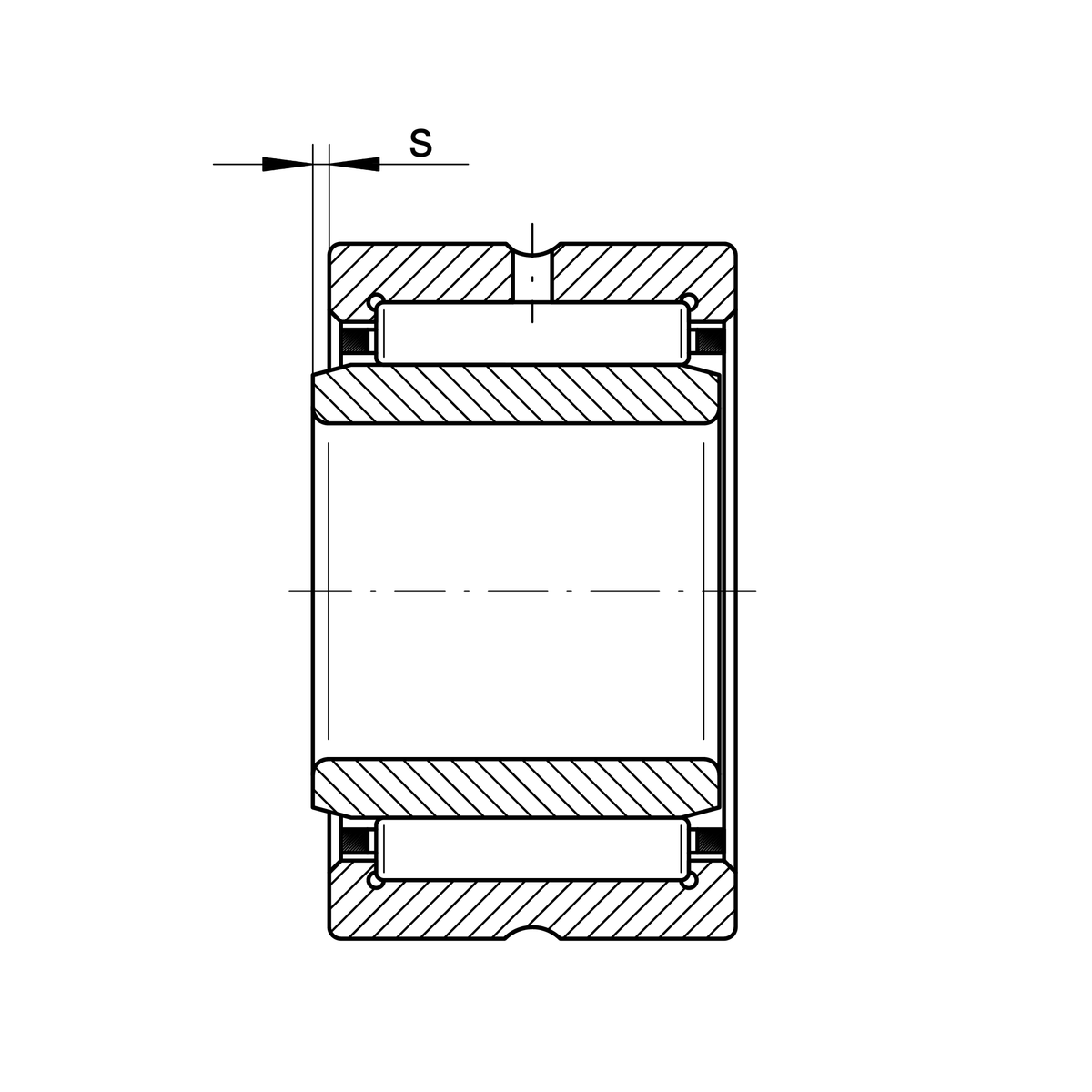

| s | 0.5 mm | Axial displacement |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Cage | Standard | Standard |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
| Coating | Without |
