RALE20-XL-NPP-FA106
Radial insert ball bearing RALE20-XL-NPP-FA106
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
42 mm
Outside diameter
B
16.7 mm
Width
B1
24.5 mm
Locking collar total width
Cr
9,400 N
Basic dynamic load rating, radial
C0r
5,000 N
Basic static load rating, radial
Cur
213 N
Fatigue load limit, radial
≈m
0.1 kg
Weight

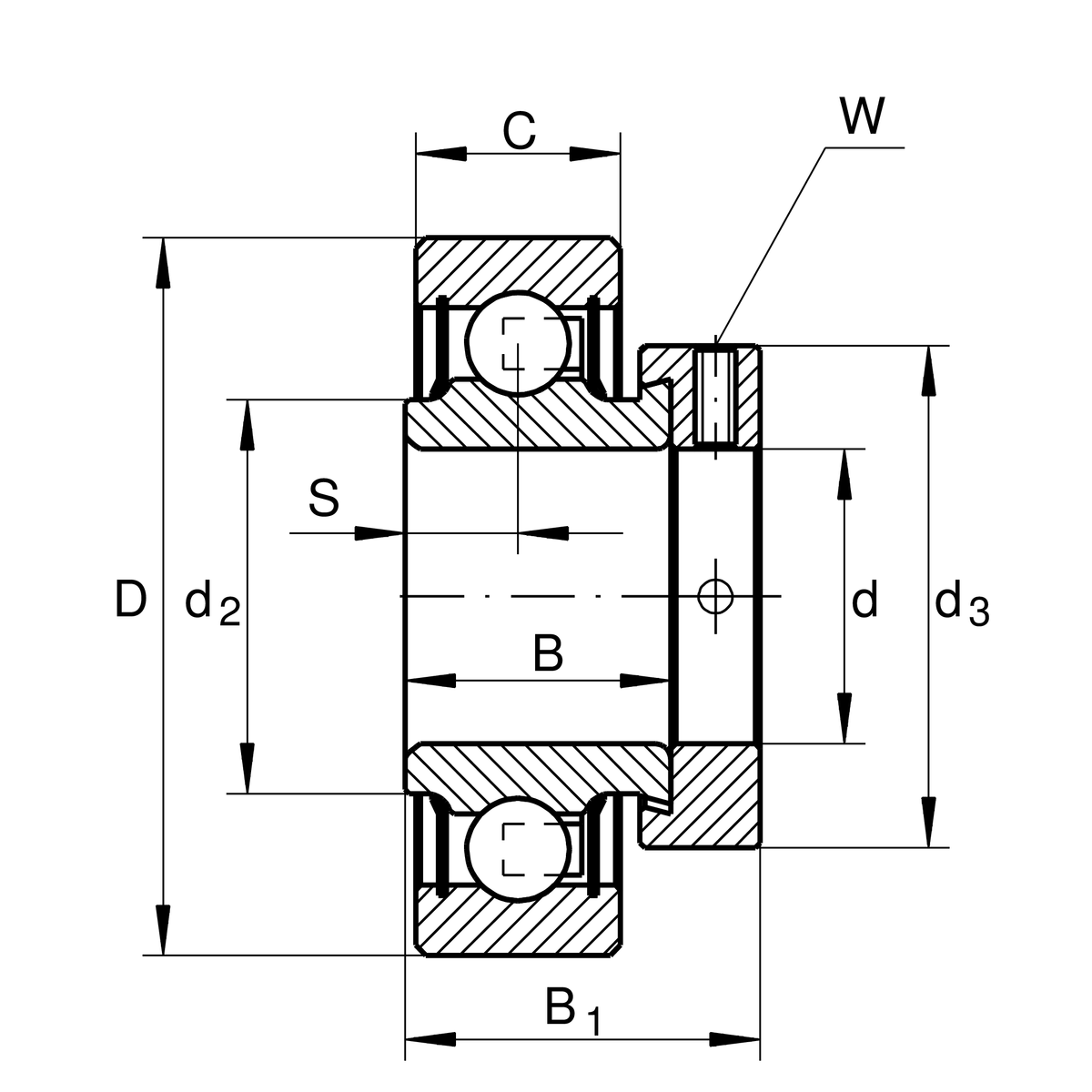

Dimensions
C
12 mm
Width, outer ring
S
6 mm
Distance raceway
d2
25.4 mm
Rib diameter sealing inner ring
d3
30 mm
Outside diameter locking collar/locknut
W
2.5 mm
Width of flats

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Manufacturing instructionFA106Bearing subjected to special noise testing
