RAE20-XL-NPP-B-OSE
Radial insert ball bearing RAE20-XL-NPP-B-OSE
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
20 mm
Bore diameter
DSP
47 mm
Outside diameter
B
21.4 mm
Width
Cur
345 N
Fatigue load limit, radial
Cr
12,800 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
≈m
0.11 kg
Weight

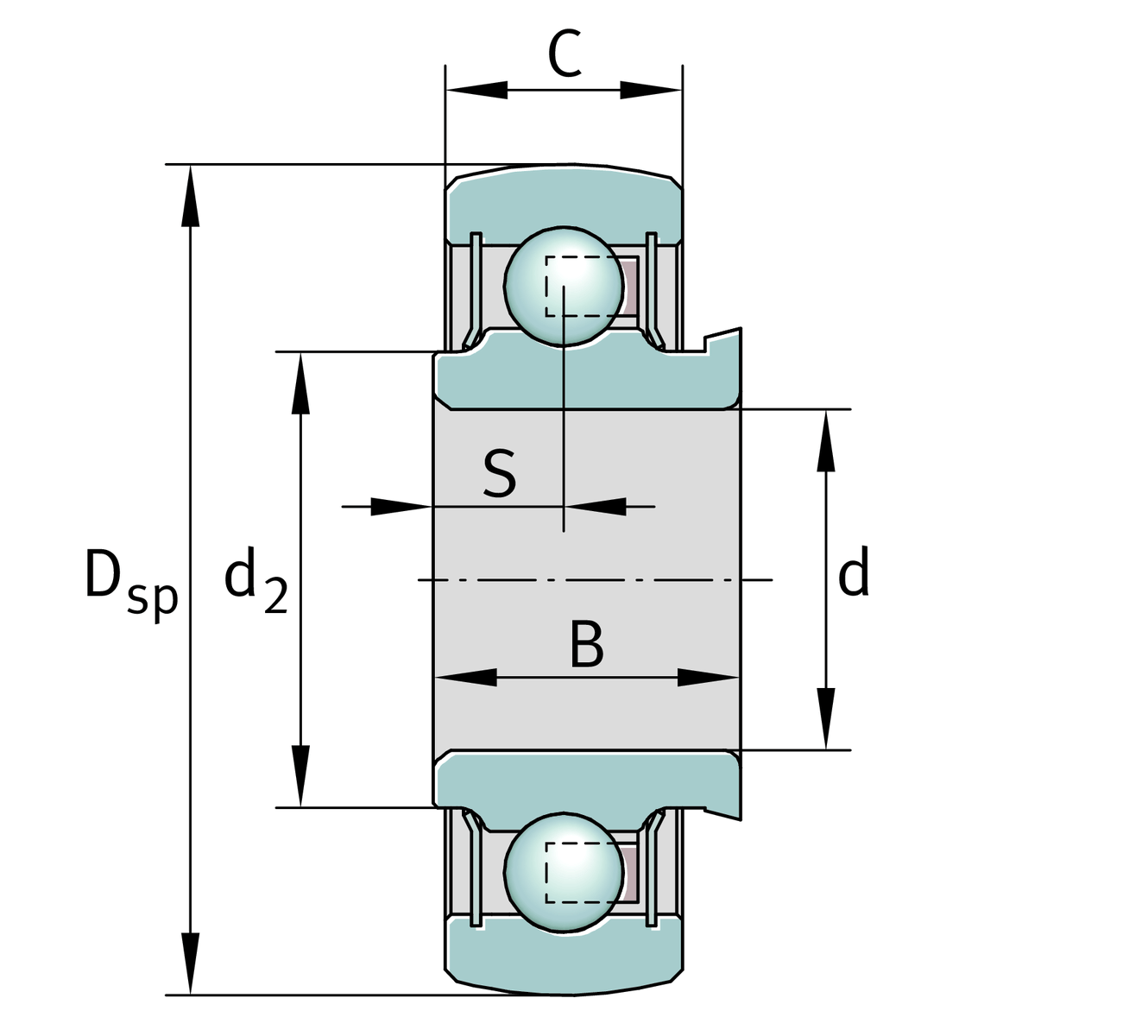

Dimensions
C
14 mm
Width, outer ring
S
7.5 mm
Distance raceway
d2
26.9 mm
Rib diameter sealing inner ring

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Calculation factors
f0
13.1
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Shape of outer surfaceB
Without locking deviceOSEBearing without locking element
