GE90-XL-KRR-B-FA164
Radial insert ball bearing GE90-XL-KRR-B-FA164
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
90 mm
Bore diameter
DSP
160 mm
Outside diameter
B
52 mm
Width
Cur
3,650 N
Fatigue load limit, radial
B1
69.5 mm
Locking collar total width
Cr
109,000 N
Basic dynamic load rating, radial
C0r
79,000 N
Basic static load rating, radial
≈m
3.68 kg
Weight

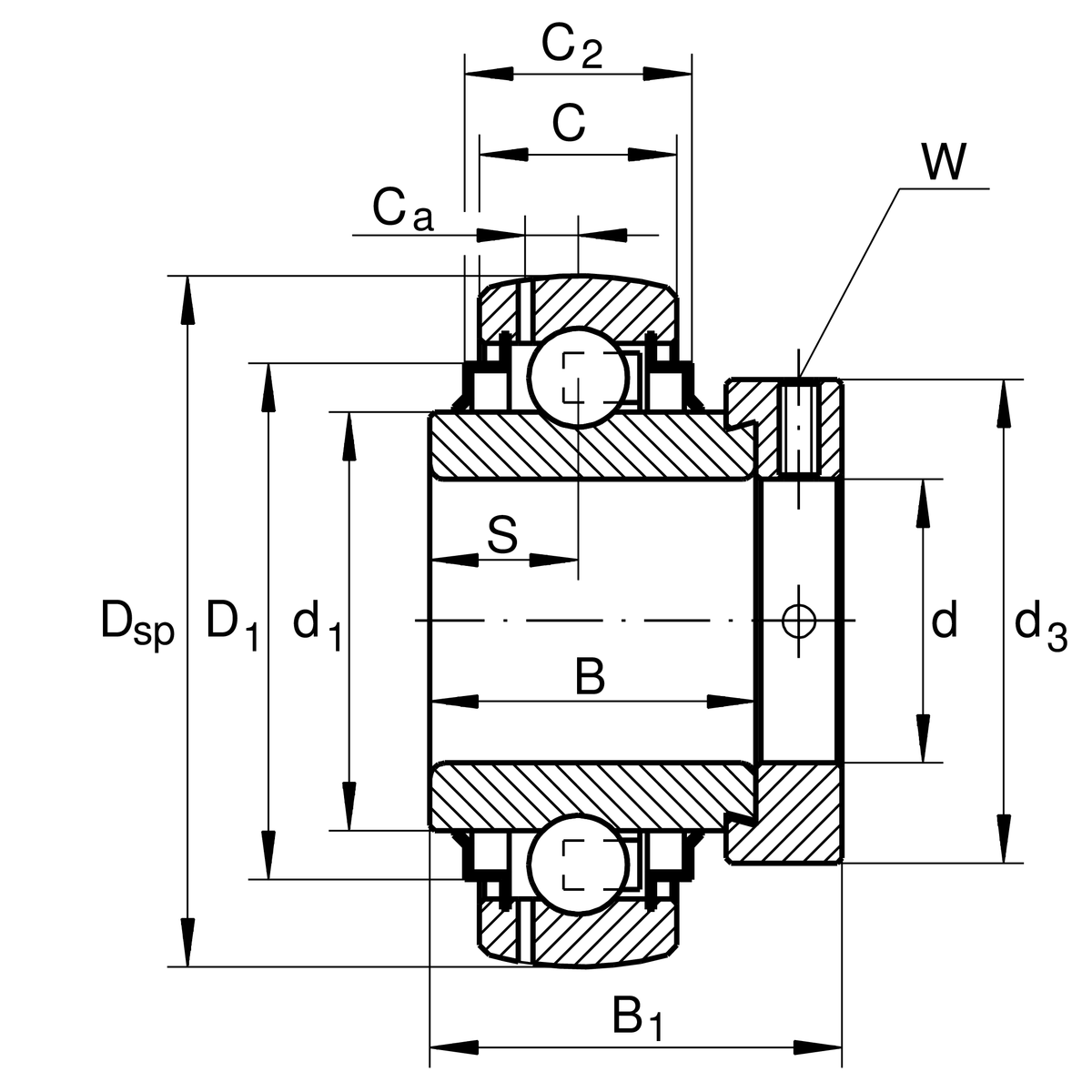

Dimensions
C
32 mm
Width, outer ring
C2
35 mm
Sealing total width
S
23 mm
Distance raceway
d1
109.4 mm
Rib diameter inner ring
D1
138 mm
Outside diameter seal
Ca
10 mm
Distance to lubrication hole
d3
118 mm
Outside diameter locking collar/locknut
W
6 mm
Width of flats

Calculation factors
f0
14.5
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Manufacturing instructionFA164High temperature design up to +250°C
