GLCTE20-TV-VA-FD
Flanged housing unit GLCTE20-TV-VA-FD
Thêm vào yêu cầu báo giá

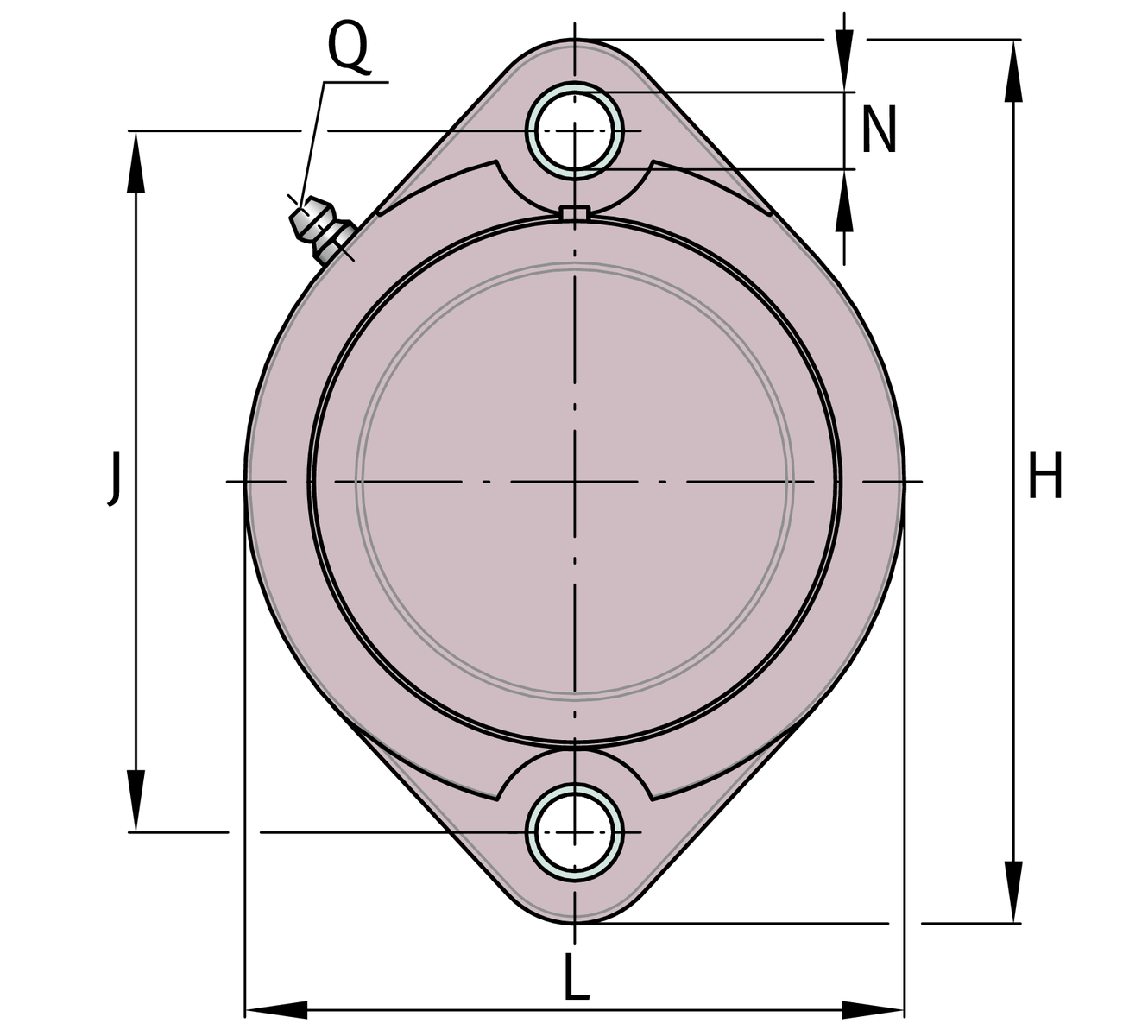

Main Dimensions & Performance Data
d
20 mm
Bore diameter
L
66.5 mm
Flange width
H
90.5 mm
Height flange
U
33.6 mm
Total height unit
Cr
12,840 N
Basic dynamic load rating, radial
C0r
6,650 N
Basic static load rating, radial
Cur
280 N
Fatigue load limit, radial
C0r G
9,600 N
Load carrying capacity (housing)
≈m
0.25 kg
Weight

Mounting dimensions
J
71.4 mm
Distance fixing bore
N
9.2 mm
Fixing bore
W
3 mm
Width across flats

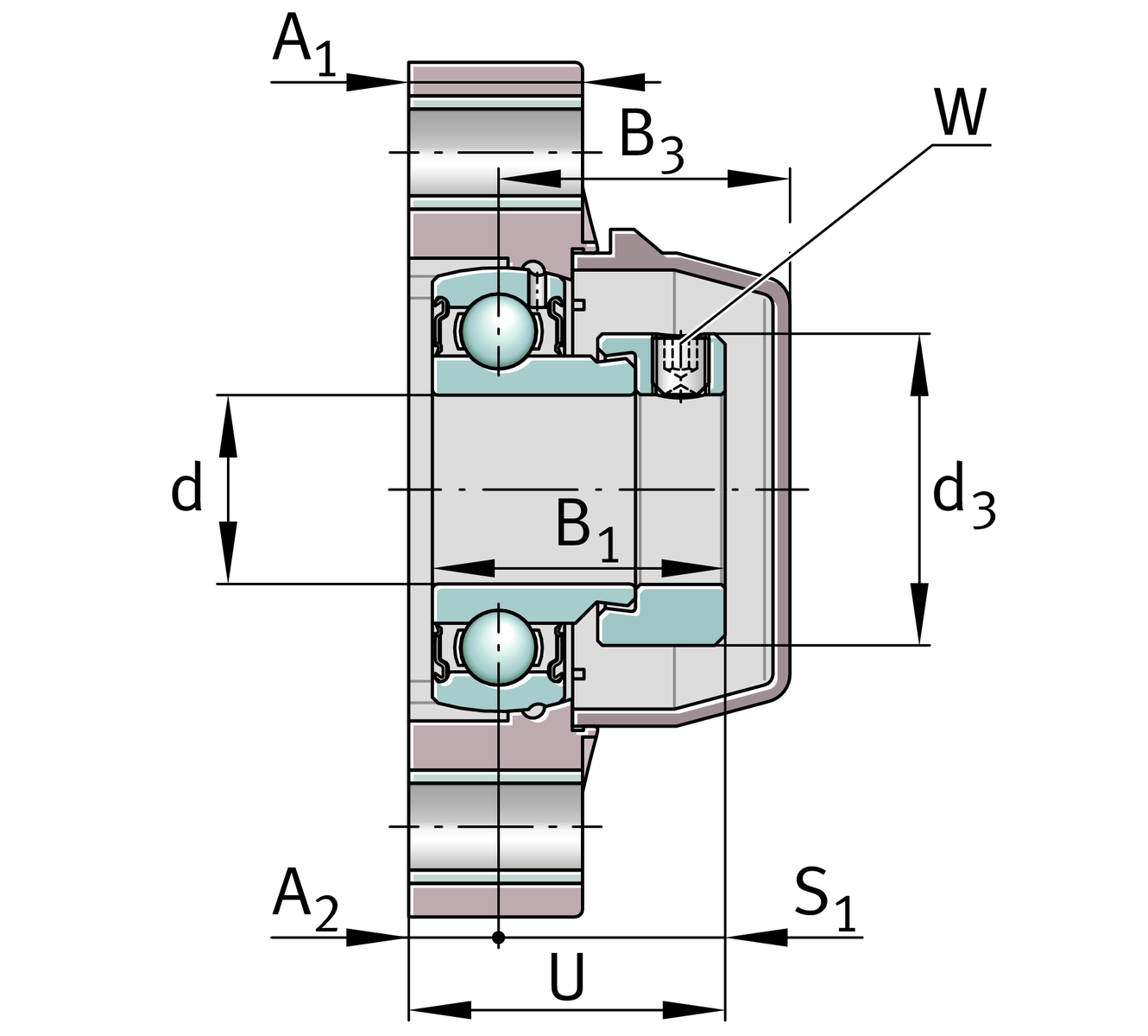

Dimensions
A1
18.4 mm
Thickness of flange
A2
9.5 mm
Distance raceway
B1
31.1 mm
Locking collar total width
B3
30.8 mm
Distance housing centre to cap end
S1
24 mm
Distance raceway to locking collar
Q
1/4"-28 UNF
Connection thread for lubrication
d3
33.3 mm
Outside diameter eccentric locking collar

Additional information
GEH.GLCTE04-TV-WHT
Housing
GE20-KRR-B-FA107-VA-FD
Bearing designation
KASK04-S-G-WHT
Protecting cap

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialTV-FDPlastic for food industry
