GE20-KRR-B-FA107-VA-FD
Radial insert ball bearing GE20-KRR-B-FA107-VA-FD
Thêm vào yêu cầu báo giá

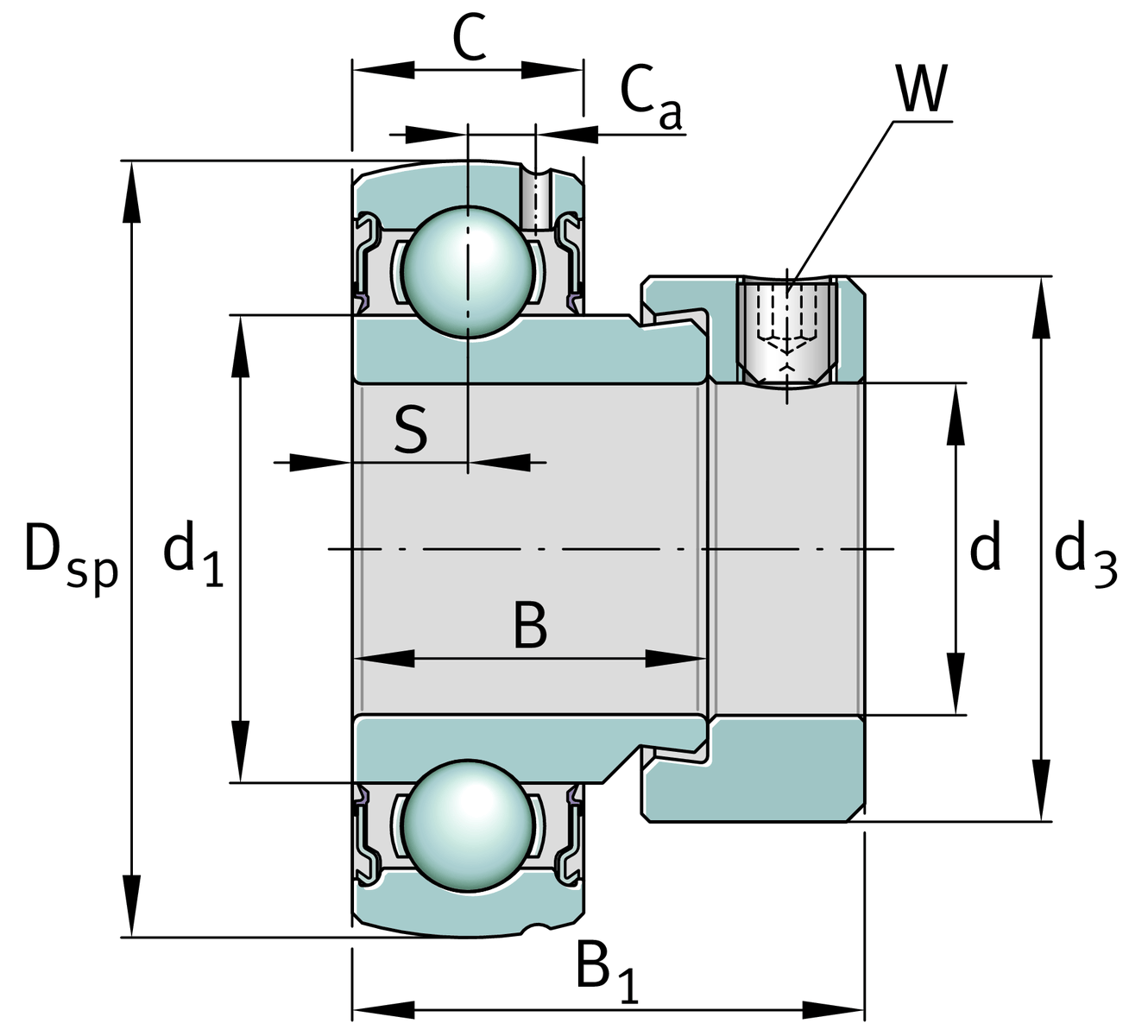

Main Dimensions & Performance Data
d
20 mm
Bore diameter
DSP
47 mm
Outside diameter
B
21.5 mm
Width
Cur
280 N
Fatigue load limit, radial
B1
31 mm
Locking collar total width
Cr
12,840 N
Basic dynamic load rating, radial
C0r
6,650 N
Basic static load rating, radial
≈m
0.17 kg
Weight

Dimensions
C
14 mm
Width, outer ring
S
7 mm
Distance raceway
d1
28.3 mm
Rib diameter inner ring
Ca
4.1 mm
Distance to lubrication hole
d3
33.3 mm
Outside diameter locking collar/locknut
W
3 mm
Width of flats

Temperature range
Tmin
-35 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Calculation factors
f0
13.1
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Special materialVACorrosion-resistant VA design
