Main Dimensions & Performance Data
| d | 20 mm | Bore diameter |
| DSP | 47 mm | Outside diameter |
| B | 34.1 mm | Width |
| Cur | 345 N | Fatigue load limit, radial |
| Cr | 13,600 N | Basic dynamic load rating, radial |
| C0r | 6,600 N | Basic static load rating, radial |
| ≈m | 0.15 kg | Weight |

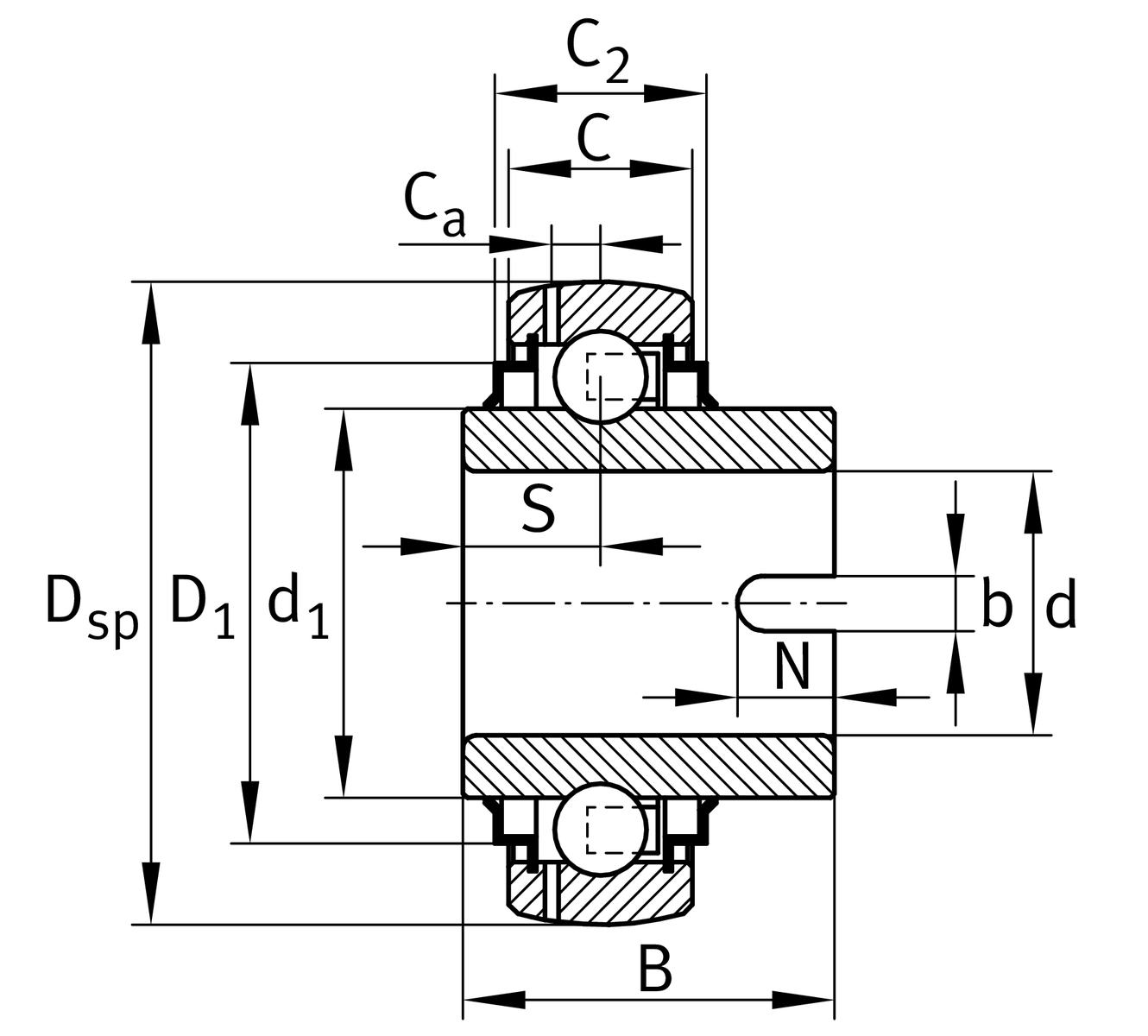

Dimensions
| C | 14 mm | Width, outer ring |
| C2 | 16.6 mm | Sealing total width |
| S | 15.6 mm | Distance raceway |
| d1 | 27.6 mm | Rib diameter inner ring |
| D1 | 37.4 mm | Outside diameter seal |
| Ca | 4 mm | Distance to lubrication hole |
| N | 7 mm | Hight retaining slot |
| b | 7 mm | Width retaining slot |
H11 | Width retaining slot clearance |
Calculation factors
| f0 | 13.1 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
| Shape of outer surface | B |
