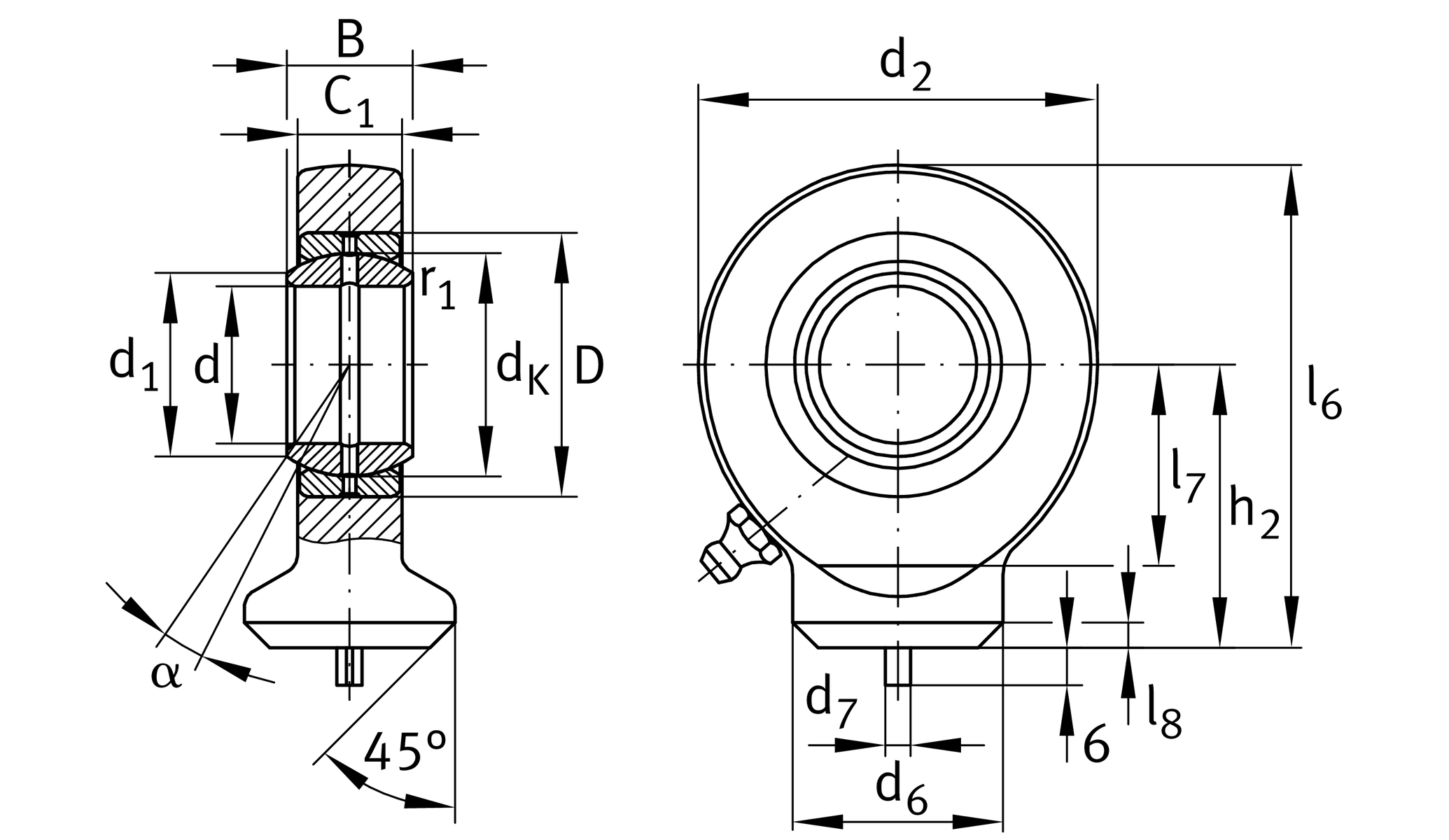

Main Dimensions & Performance Data
| Cr | 29,600 N | Basic dynamic load rating, radial |
| C0r | 53,700 N | Basic static load rating, radial |
| d | 20 mm | Bore diameter bearing |
| d2 | 53 mm | Outer eye diameter |
| l6 | 64.5 mm | Total length welding head |
| D | 35 mm | Outside diameter bearing |
| B | 16 mm | Width inner ring, |
| ≈m | 0.239 kg | Weight |
Dimensions
| α | 9 ° | Tilt angle |
| C1 | 13 mm | Width of the rod end |
| dK | 29 mm | Ball diameter |
| d 6 | 27.5 mm | Welding Shank Diameter |
| d7 | 4 mm | Centering pin diameter |
| h2 | 38 mm | Shank Length Welding Head |
| l7 | 27 mm | Distance drilling with/shaft start |
| l8 | 3 mm | Chamfer |
| dUT | -0.01 mm | Bore diameter bearing, lower tolerance |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| BUT | -0.12 mm | Width inner ring, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| Grmax | 0.082 mm | Radial clearance, maximum |
| Grmin | 0.03 mm | Radial clearance, minimum |
| Gr | 0,03 - 0,082 | Radial Clearance |
Mounting dimensions
| r1smin | 0.3 mm | Edge Spacing |
| d1 | 24.1 mm | Outer flange diameter inner ring |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
