GF20-DO
Rod end GF20-DO
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
Cr
29,600 N
Basic dynamic load rating, radial
C0r
65,600 N
Basic static load rating, radial
d
20 mm
Bore diameter bearing
d2
50 mm
Outer eye diameter
l6
63 mm
Total length welding head
D
35 mm
Outside diameter bearing
B
16 mm
Width inner ring
≈m
0.346 kg
Weight

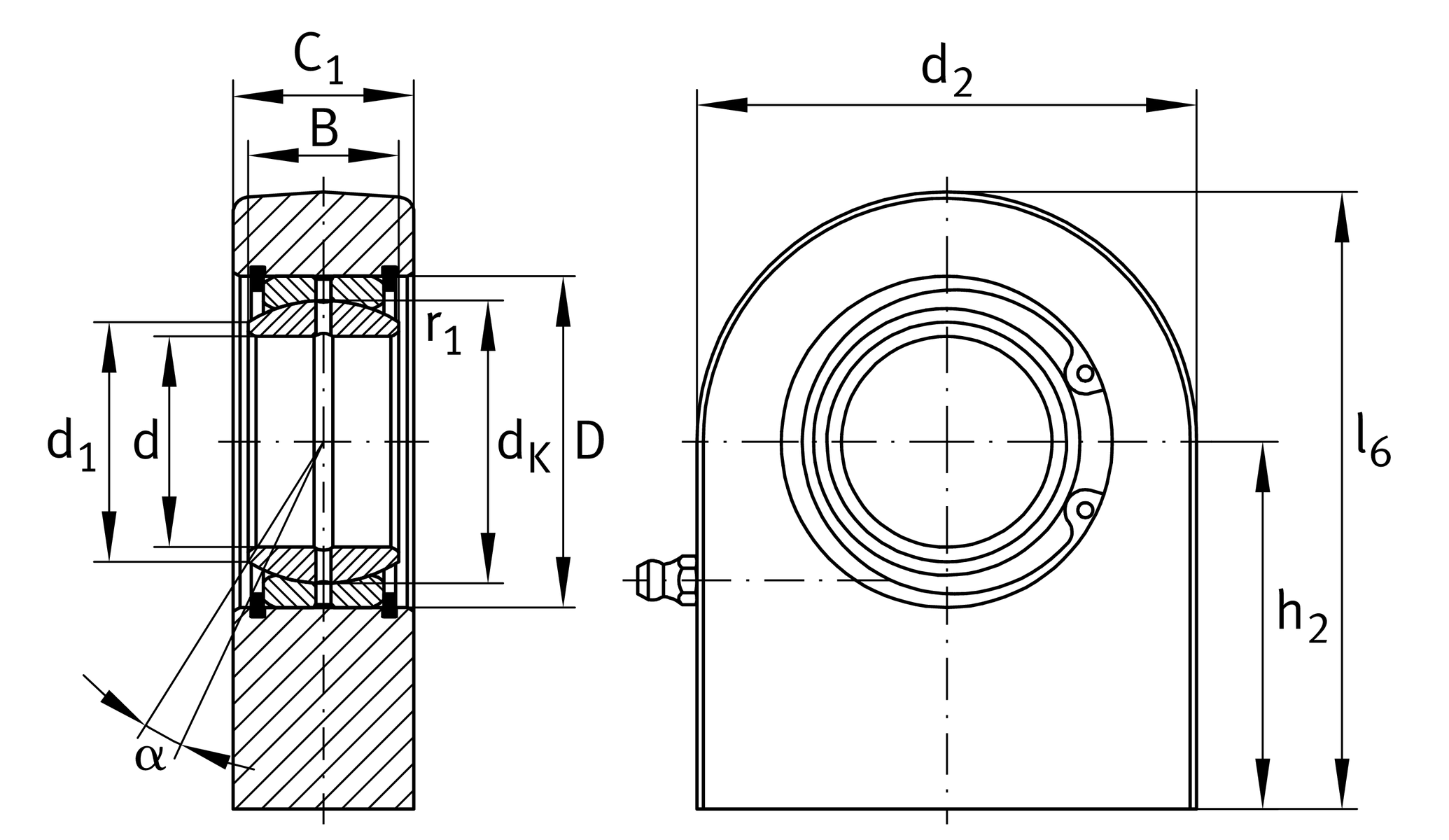

Dimensions
dK
29 mm
Ball diameter
α
9 °
Tilt angle
C1
19 mm
Width of the rod end
C1 max
20 mm
Width of the rod end, max.
h2
38 mm
Shank Length Welding Head
dUT
-0.01 mm
Bore diameter bearing, lower tolerance
dOT
0 mm
Bore diameter bearing, upper tolerance
BUT
-0.12 mm
Width inner ring, lower tolerance
BOT
0 mm
Width inner ring, upper tolerance
Gr
0,03 - 0,082
Radial Clearance
Grmax
0.082 mm
Radial clearance, maximum
Grmin
0.03 mm
Radial clearance, minimum

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
d1
24.1 mm
Outer flange diameter inner ring

Temperature range
Tmin
-60 °C
Operating temperature min.
Tmax
200 °C
Operating temperature max.

Your current product variant
SealingWithout
Thêm vào yêu cầu báo giá
