FAG INA Schaeffler
INA
GE20-XL-KRR-B-FA164
Radial insert ball bearing GE20-XL-KRR-B-FA164
Thêm vào yêu cầu báo giá

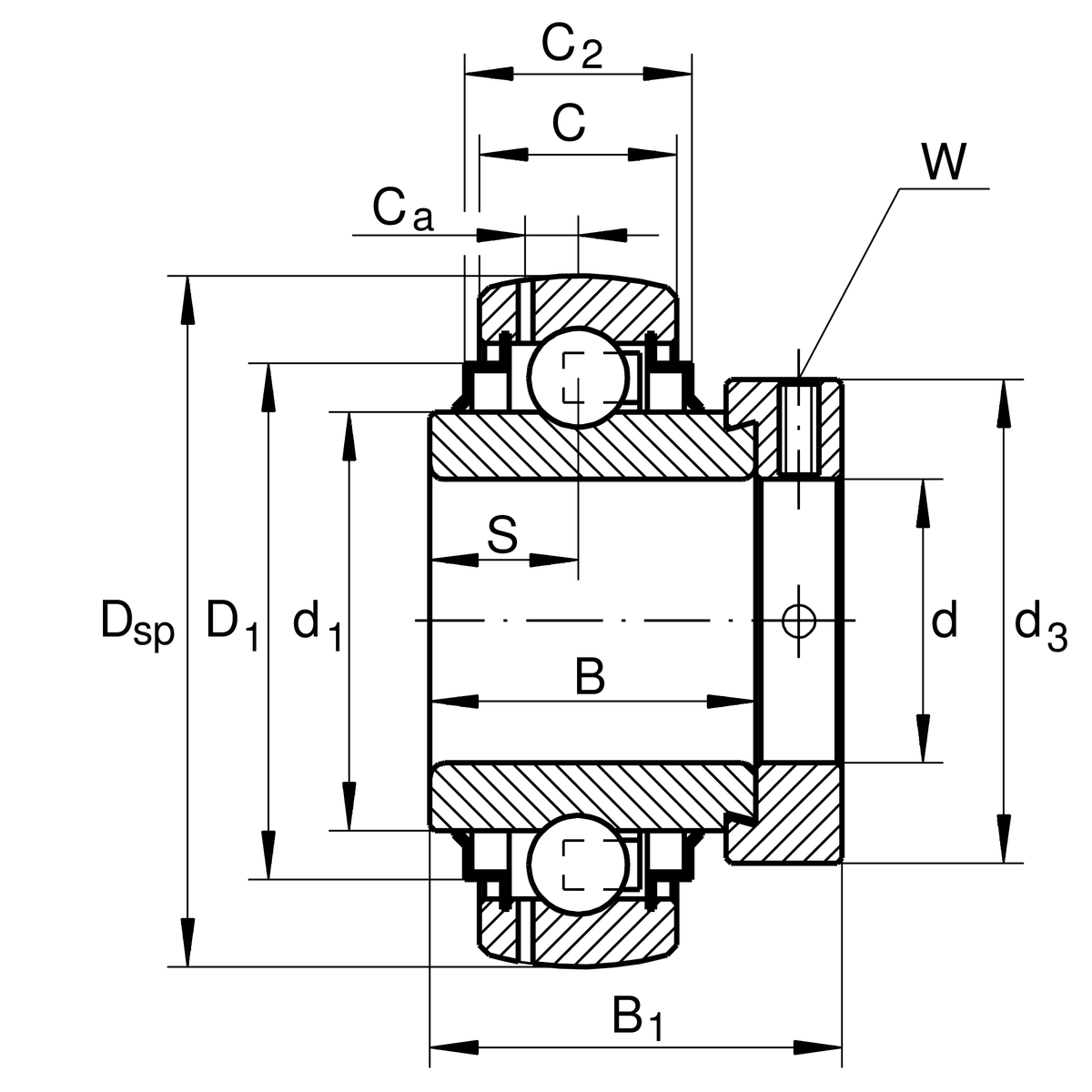

Main Dimensions & Performance Data
d
20 mm
Bore diameter
DSP
47 mm
Outside diameter
B
34.1 mm
Width
Cur
315 N
Fatigue load limit, radial
B1
43.7 mm
Locking collar total width
Cr
12,800 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
≈m
0.2 kg
Weight

Dimensions
C
14 mm
Width, outer ring
C2
16.6 mm
Sealing total width
S
17.1 mm
Distance raceway
d1
27.6 mm
Rib diameter inner ring
D1
37.4 mm
Outside diameter seal
Ca
4 mm
Distance to lubrication hole
d3
33 mm
Outside diameter locking collar/locknut
W
3 mm
Width of flats

Calculation factors
f0
13.1
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Manufacturing instructionFA164High temperature design up to +250°C
