OPTIME-SET-AW5A-GLB4
Wireless condition monitoring sensor OPTIME-SET-AW5A-GLB4
Thêm vào yêu cầu báo giá
Measurement
fl
2 Hz
Lower frequency limit
fh
5,000 Hz
Upper frequency limit
amax
16
Amplitude range ±
3
Number of measurement axis
RMSLow, RMSHigh, ISO, KurtosisLow, KurtosisHigh, H
Calculated KPI
Yes
Time waveform
≈m
0.1 kg
Weight

Communication
f
2,4 GHz ISM band
Frequency band communication, sensor - gateway
l
100 m
Sensor range (line of sight)
per NFC
Sensor activation

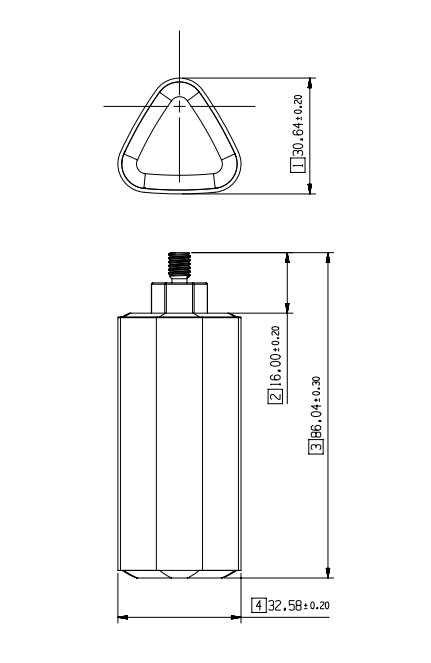

Main Dimensions & Performance Data
h
86.04 mm
Sensor height (with bolt)
b1
32.58 mm
Sensor width (1)
b2
30.64 mm
Sensor width (2)

Technical data
Tmax
85 °C
Upper temperature limit
Tmin
-40 °C
Lower temperature limit
IP 69K
Ingress protection
tbat
5
Calculated battery life

Your current product variant
Measurement typesVibration, TemperatureVibration, Temperature
Communication sensor - gatewayWirepasWirepas mesh network
Mounting boltM6DIN13-1 metric thread
Explosion Protectionnonenone
