Main Dimensions & Performance Data
| d | 20 mm | Bore diameter |
| D | 47 mm | Outside diameter |
| B | 34.1 mm | Width |
| B1 | 43.7 mm | Locking collar total width |
| Cr | 12,800 N | Basic dynamic load rating, radial |
| C0r | 6,600 N | Basic static load rating, radial |
| Cur | 315 N | Fatigue load limit, radial |
| ≈m | 0.2 kg | Weight |

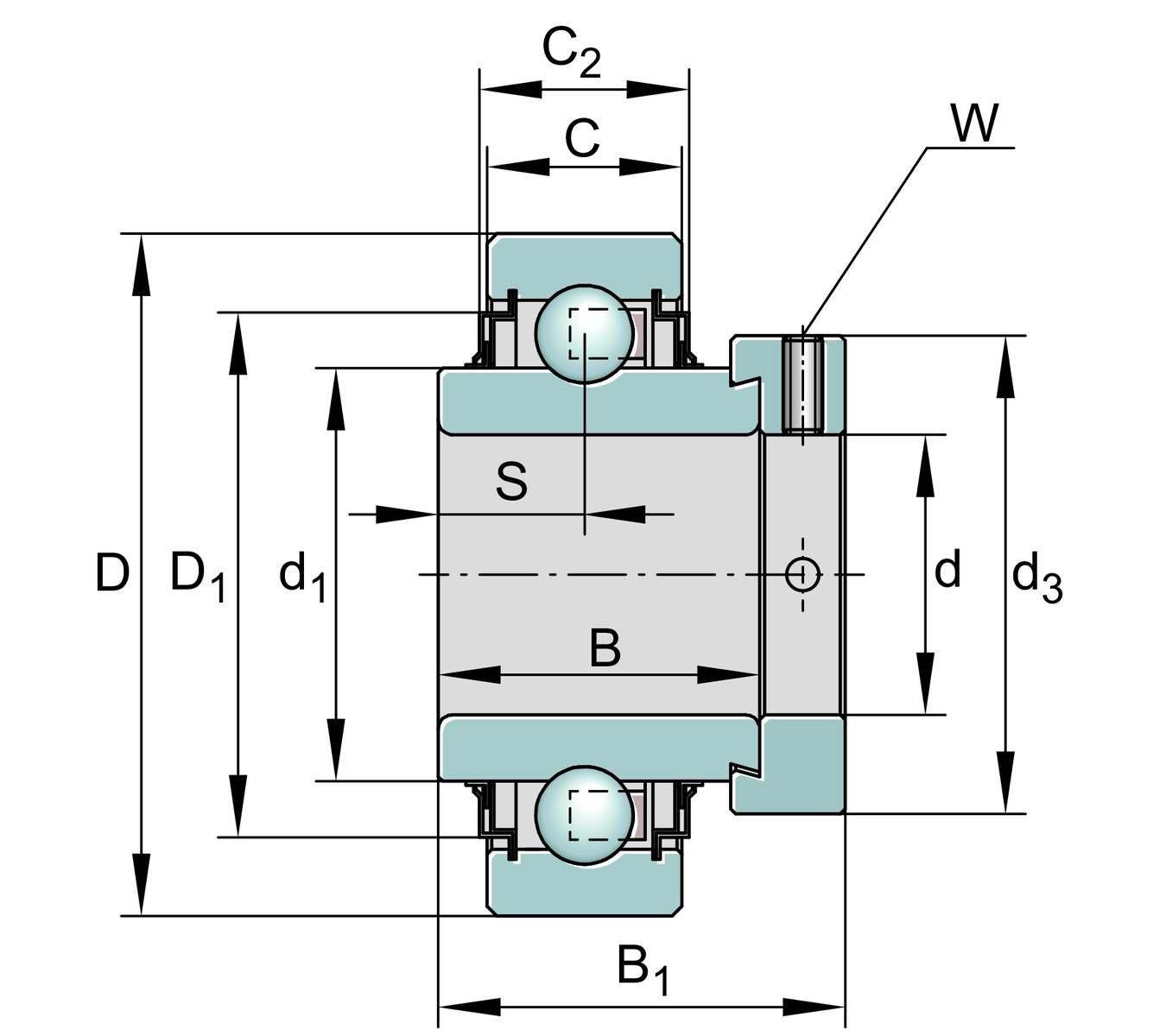

Dimensions
| C | 14 mm | Width, outer ring |
| C2 | 16.6 mm | Sealing total width |
| S | 17.1 mm | Distance raceway |
| d1 | 27.6 mm | Rib diameter inner ring |
| D1 | 37.4 mm | Outside diameter seal |
| d3 | 33 mm | Outside diameter locking collar/locknut |
| W | 3 mm | Width of flats |
Calculation factors
| f0 | 13.1 | Calculation factor |
Your current product variant
| Sealing | KLL | Labyrinth seals on both sides |
