G1012-KRR-B-AS2/V
Radial insert ball bearing G1012-KRR-B-AS2/V
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
19.05 mm
Bore diameter
d
19.05 mm
Bore diameter, inch
DSP
47 mm
Outside diameter
B
34.1 mm
Width
Cur
300 N
Fatigue load limit, radial
B1
43.7 mm
Locking collar total width
Cr
12,800 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
≈m
228 g
Weight

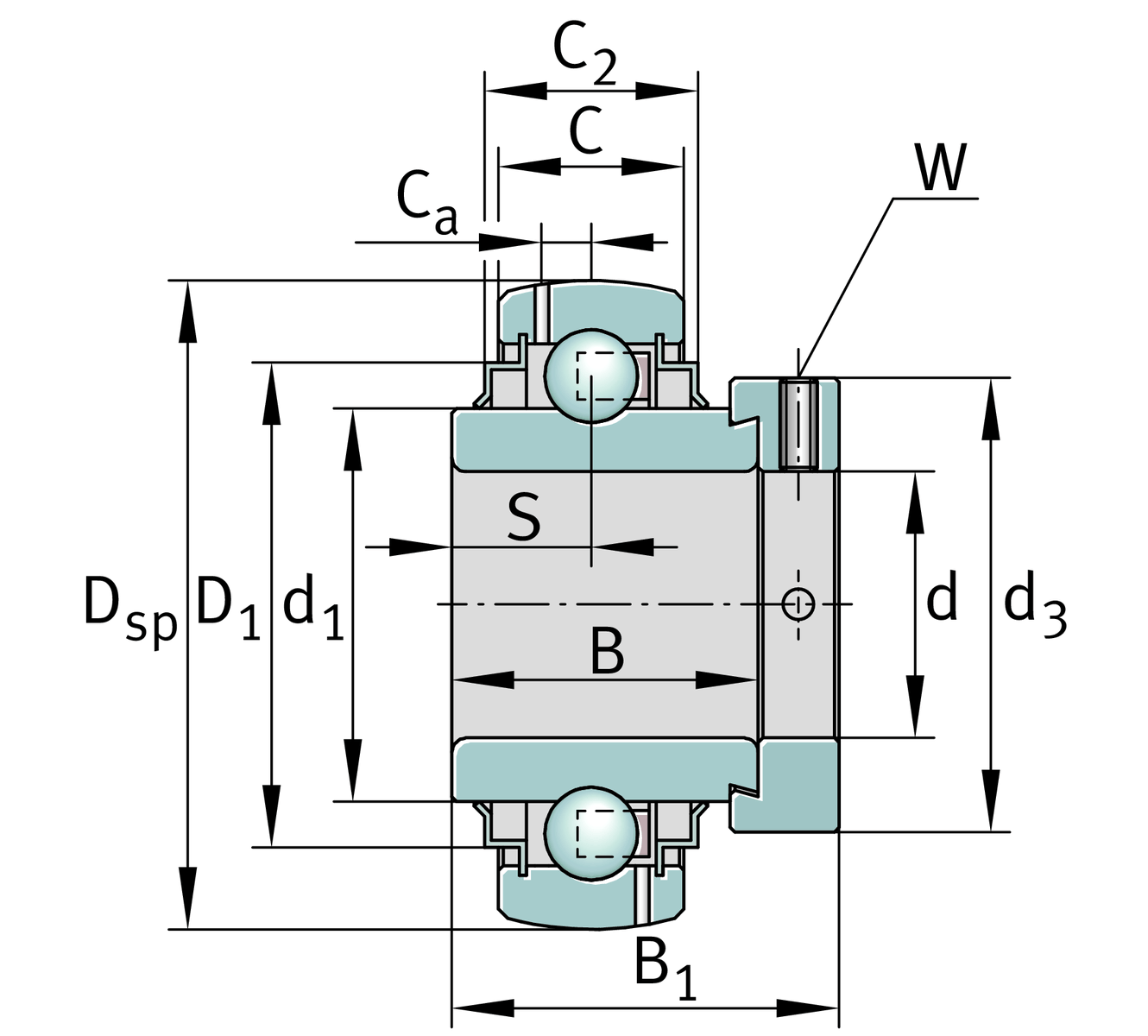

Dimensions
C
14 mm
Width, outer ring
C2
16.2 mm
Sealing total width
S
17.1 mm
Distance raceway
d1
27.6 mm
Rib diameter inner ring
D1
37.4 mm
Outside diameter seal
Ca
3.9 mm
Distance to lubrication hole
d3
33 mm
Outside diameter locking collar/locknut

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Calculation factors
f0
13.1
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
