NSSS-756
Hydraulic cylinder, 700 bar NSSS-756
Thêm vào yêu cầu báo giá
Technical data
75
Capacity class (tons)
sp
155 mm
Stroke
Fa
791 kN
Advance force, max.
pmax
700 bar
Operating pressure, max.
Voil
1,752 cm³
Oil capacity

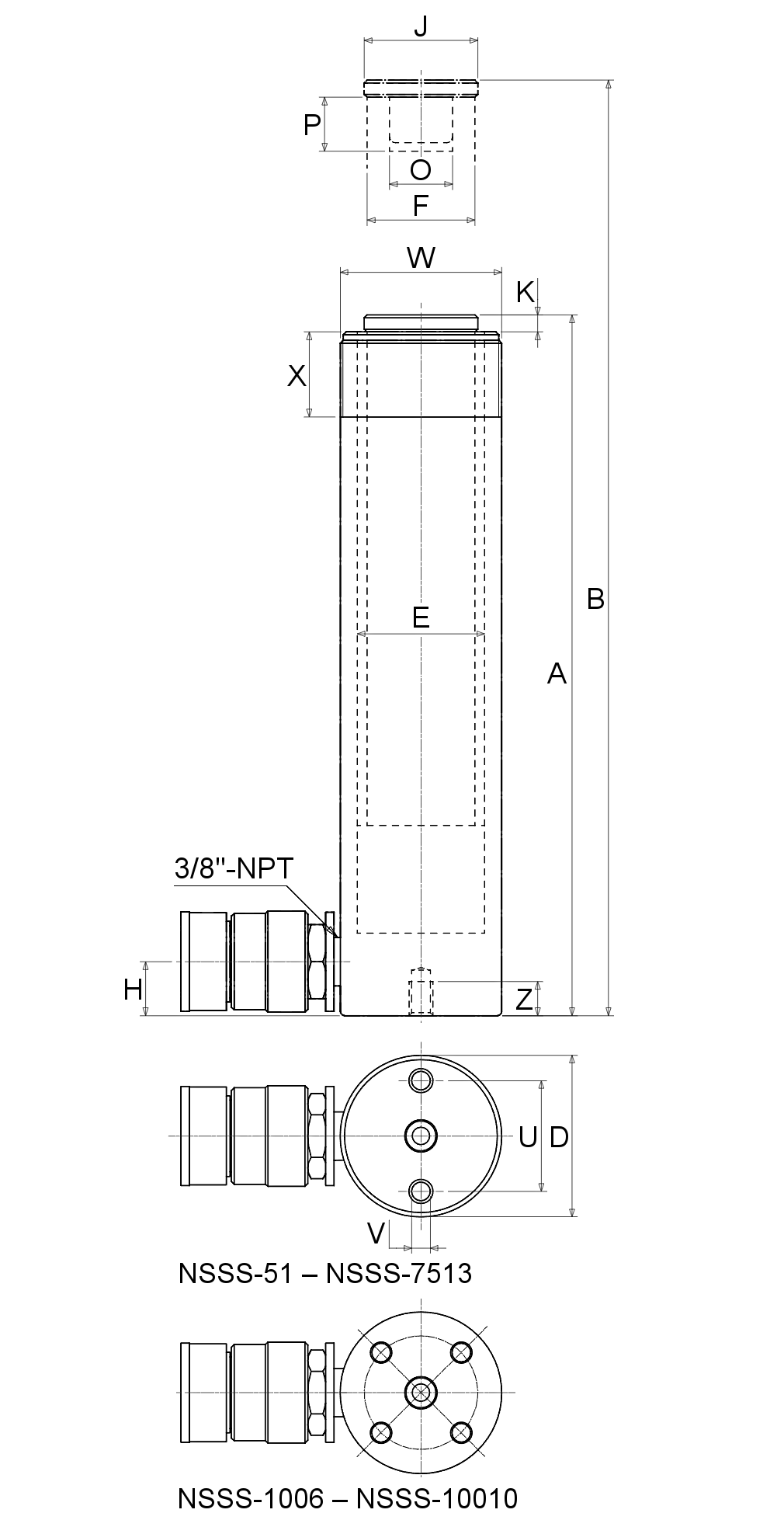

A
285 mm
Height, retracted
B
440 mm
Height, extended
D
152 mm
Outer diameter
E
120 mm
Cylinder bore diameter
F
95 mm
Plunger diameter
H
30 mm
Base to advance port
J
70 mm
Saddle diameter
K
3 mm
Saddle protrusion from plunger
W
5¾"-12 UN
Collar thread (UN)
X
45 mm
Collar thread, length
≈m
29.5 kg
Weight

Additional information
Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap
Product specifics

Your current product variant
SeriesNSSSStandard cylinder
Version75TCapacity class 75
