Main Dimensions & Performance Data
| d | 80 mm | Bore diameter |
0 mm | Bore diameter upper tolerance | |
-0.009 mm | Bore diameter lower tolerance | |
| D | 146 mm | Outside diameter |
0 mm | Outside diameter upper tolerance | |
-0.011 mm | Outside diameter lower tolerance | |
| H | 35 mm | Height |
| Cr | 44,000 N | Basic dynamic load rating, radial |
| C0r | 98,000 N | Basic static load rating, radial |
| Ca | 38,000 N | Basic dynamic load rating, axial |
| C0a | 158,000 N | Basic static load rating, axial |
| nG | 350 1/min | Limiting speed |
| MR | 3 Nm | Bearing friction torque at 5 1/min |
| ≈m | 2.179 kg | Weight |

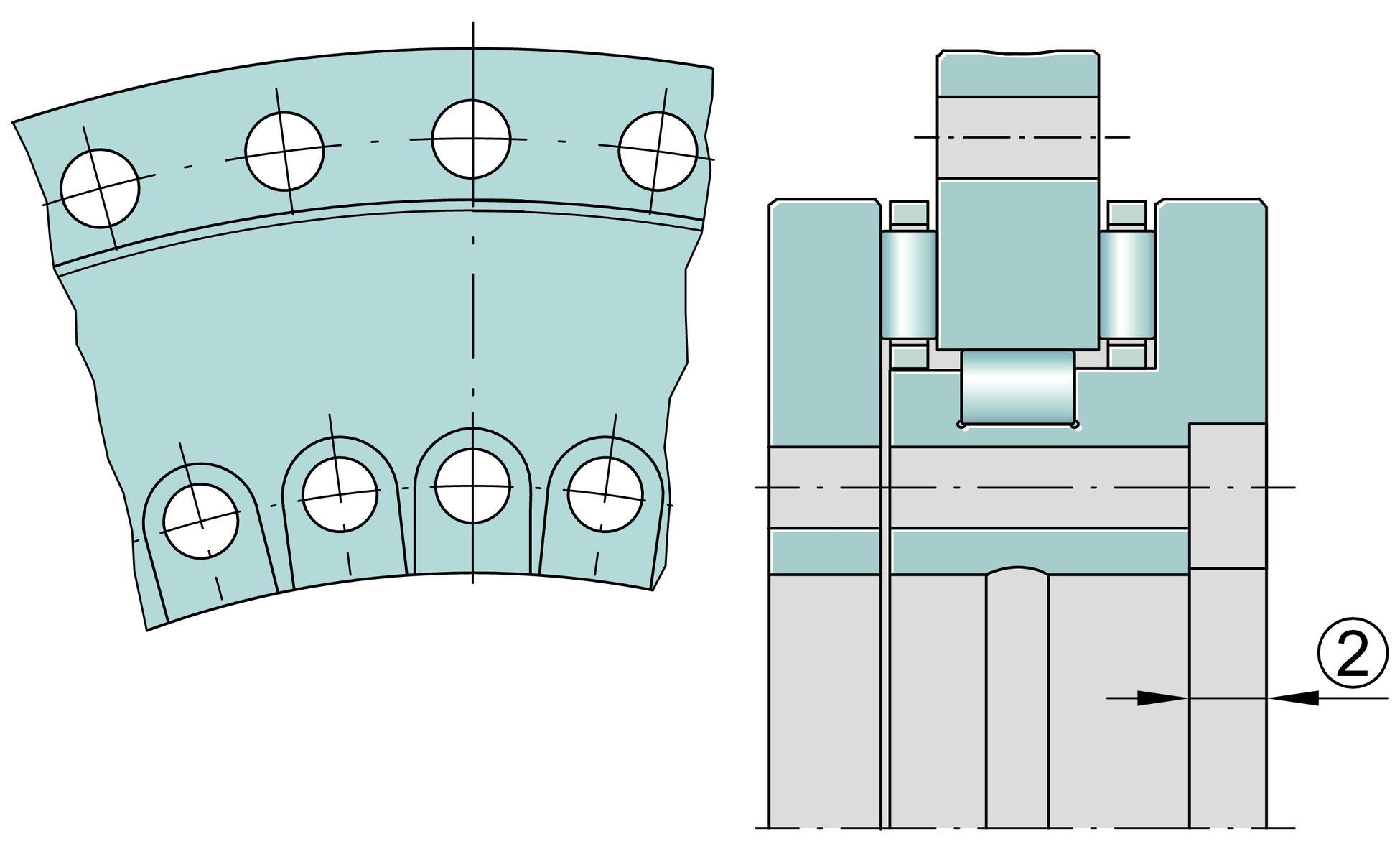

Mounting dimensions
| J | 92 mm | Pitch circle diameter fixing holes in inner ring |
| J1 | 138 mm | Pitch circle diameter fixing holes in outer ring |
| d1 | 5.6 mm | Fixing holes diameter inner ring |
| d2 | 10 mm | Counterbore diameter of fixing holes |
| a | 4 mm | Counterbore depth of fixing holes |
10 | Quantity of fixing holes inner ring | |
| d3 | 4.6 mm | Fixing holes diameter outer ring |
12 | Quantity of fixing holes outer ring | |
| n | 12 | Pitch quantity |
| t | 30 ° | Pitch separation angle |
| MA | 8.5 Nm | Screw tightening torque |
2 | Quantity of retaining screws | |
| t1 | 3 µm | Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction. |
Dimensions
| H1 | 23.35 mm | Height contact face outer ring |
0.025 mm | Height contact face outerring H1 upper tolerance | |
-0.025 mm | Height contact face outerring H1 lower tolerance | |
| H2 | 11.65 mm | Height contact face outer ring |
0.2 mm | Height contact face outerring H2 upper tolerance | |
-0.2 mm | Height contact face outerring H2 lower tolerance | |
| D1 max | 130 mm | Maximum diameter inner ring |
| C | 12 mm | Width of outer ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
| caL | 1,600 N/µm | Axial rigidity of bearing position |
| crL | 1,800 N/µm | Radial rigidity of bearing position |
| ckL | 2,500 Nm/mrad | Tilting rigidity of bearing position |
| caL | 4,000 N/µm | Axial rigidity of rolling element set |
| crL | 2,600 N/µm | Radial rigidity of rolling element set |
| ckL | 6,300 Nm/mrad | Tilting rigidity of rolling element set |
Your current product variant
| Cage | TV | Plastic Cage made from PA66 |
