K16X20X17
Needle roller cage assembly K16X20X17
Thêm vào yêu cầu báo giá

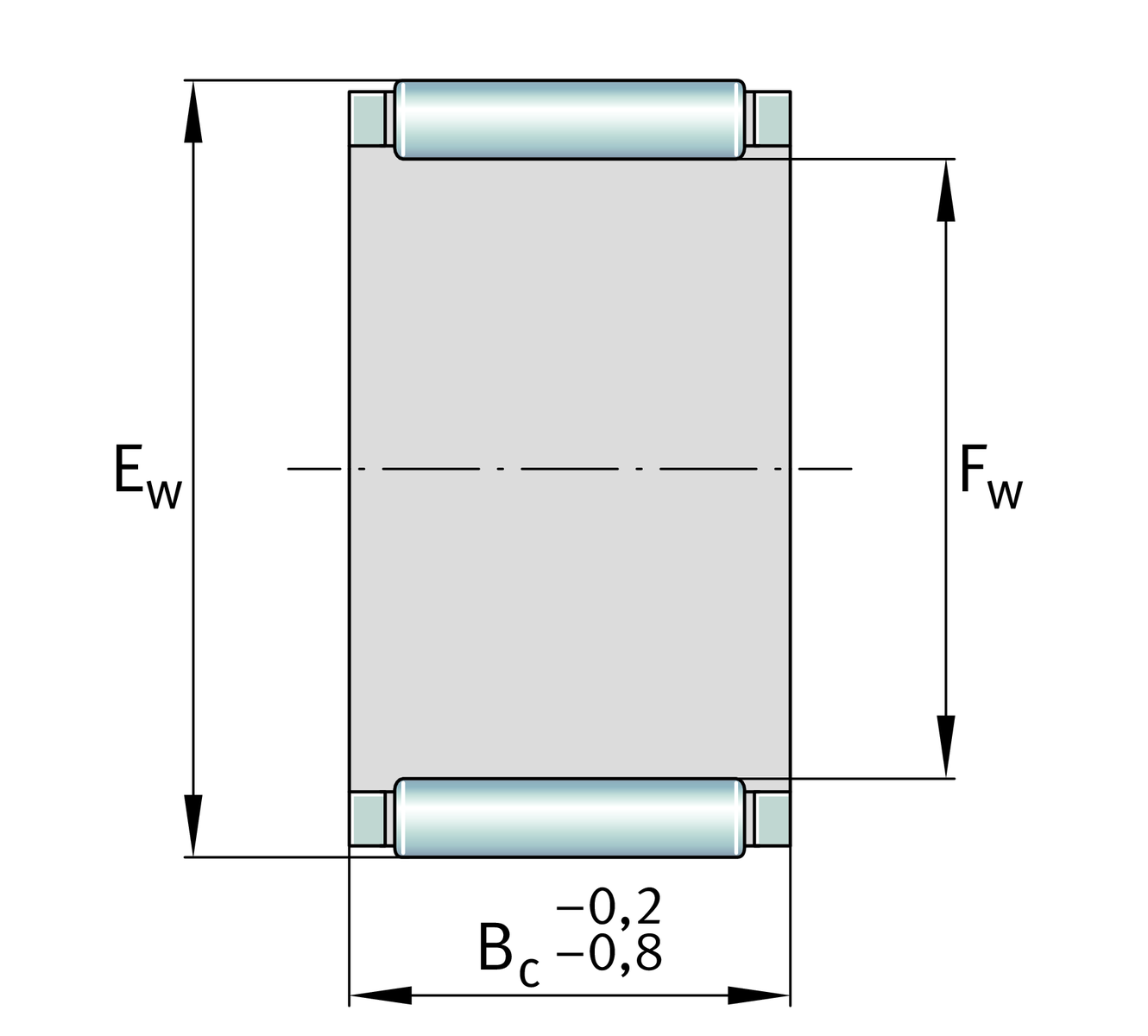

Main Dimensions & Performance Data
Fw
16 mm
Inner diameter of needle roller complement
Ew
20 mm
Outside diameter of needle roller complement
Bc
17 mm
Width
Cr
11,700 N
Basic dynamic load rating, radial
C0r
16,800 N
Basic static load rating, radial
Cur
2,230 N
Fatigue load limit, radial
nG
23,600 1/min
Limiting speed
nϑr
15,200 1/min
Reference speed
≈m
9.5 g
Weight

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
140 °C
Operating temperature max.

Your current product variant
CageJNsteel sheet metal
