ARCALUB-X.TUBEFIT-G1/8-SAT188G

Connector for lubricator ARCALUB-X.TUBEFIT-G1/8-SAT188G

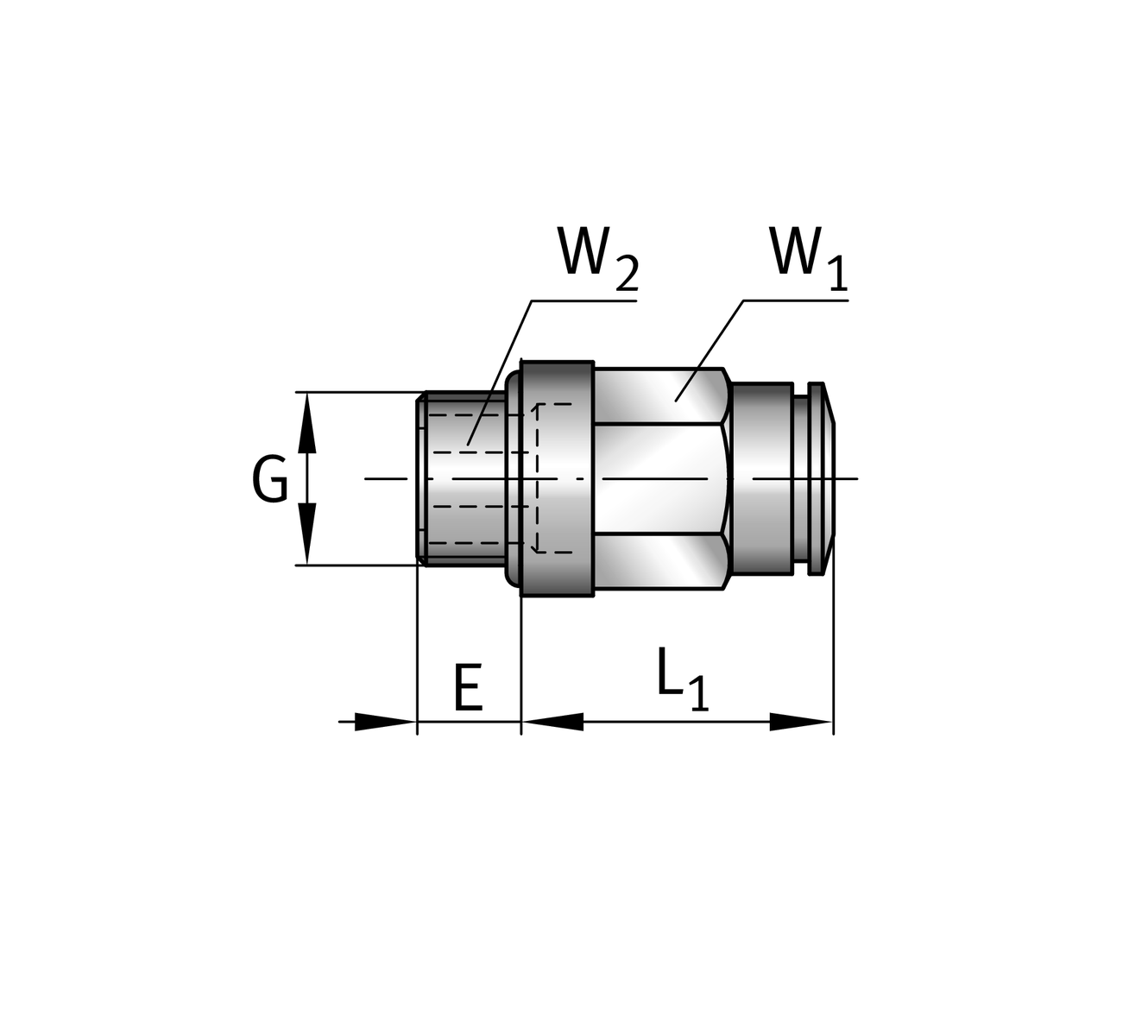

Technical data

G	G1/8	Thread
D_H	8 mm	Hose diameter
	Flat sealing by O ring	Seal
W₁	13 mm	Width across flats
W₂	5 mm	Hexagon socket nominal dimension
L₁	20.5 mm	Length
E	6 mm	Thread length
	push fit	Hose
	18 mm	Hose Insertion depth
≈m	0.02 kg	Weight
