RAE17-XL-NPP-B-OSE
Radial insert ball bearing RAE17-XL-NPP-B-OSE
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
17 mm
Bore diameter
DSP
40 mm
Outside diameter
B
19 mm
Width
Cur
248 N
Fatigue load limit, radial
Cr
9,800 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
≈m
0.07 kg
Weight

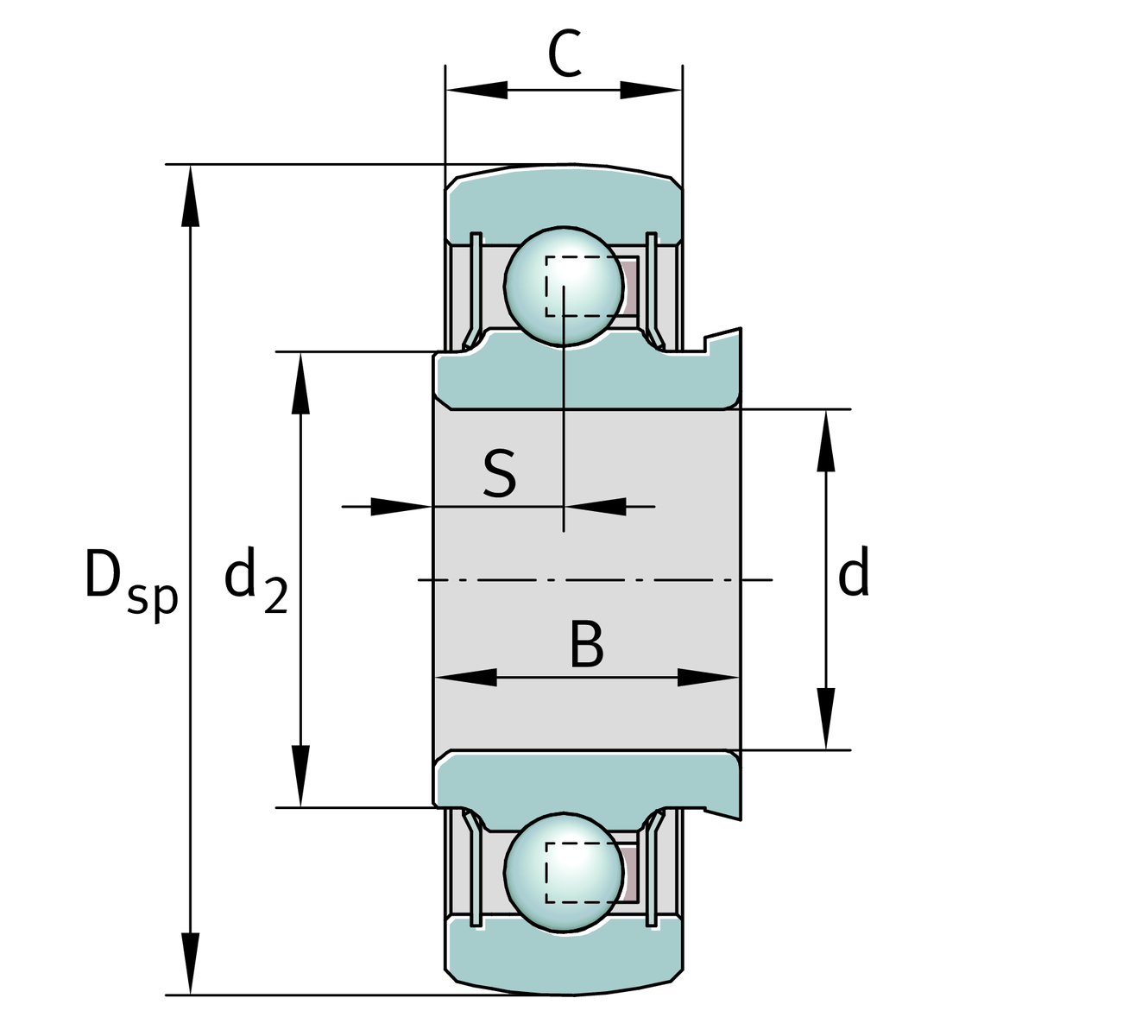

Dimensions
C
12 mm
Width, outer ring
S
6.5 mm
Distance raceway
d2
23 mm
Rib diameter sealing inner ring

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Calculation factors
f0
13
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Shape of outer surfaceB
Without locking deviceOSEBearing without locking element
