Technical data
Lubrication of chains | Usage | |
Duplex (double-row) | Design | |
axial | Lubricant feed | |
Pinion: plastic, roller: open cell PU foam | Material | |
| top | 0 °C … +60 °C | Operating temperature |
7 m/s | Max. permissible circumferential speed at outside diameter | |
Oil | Lubricant | |
16 B-2 | Chain type according to ISO 606 | |

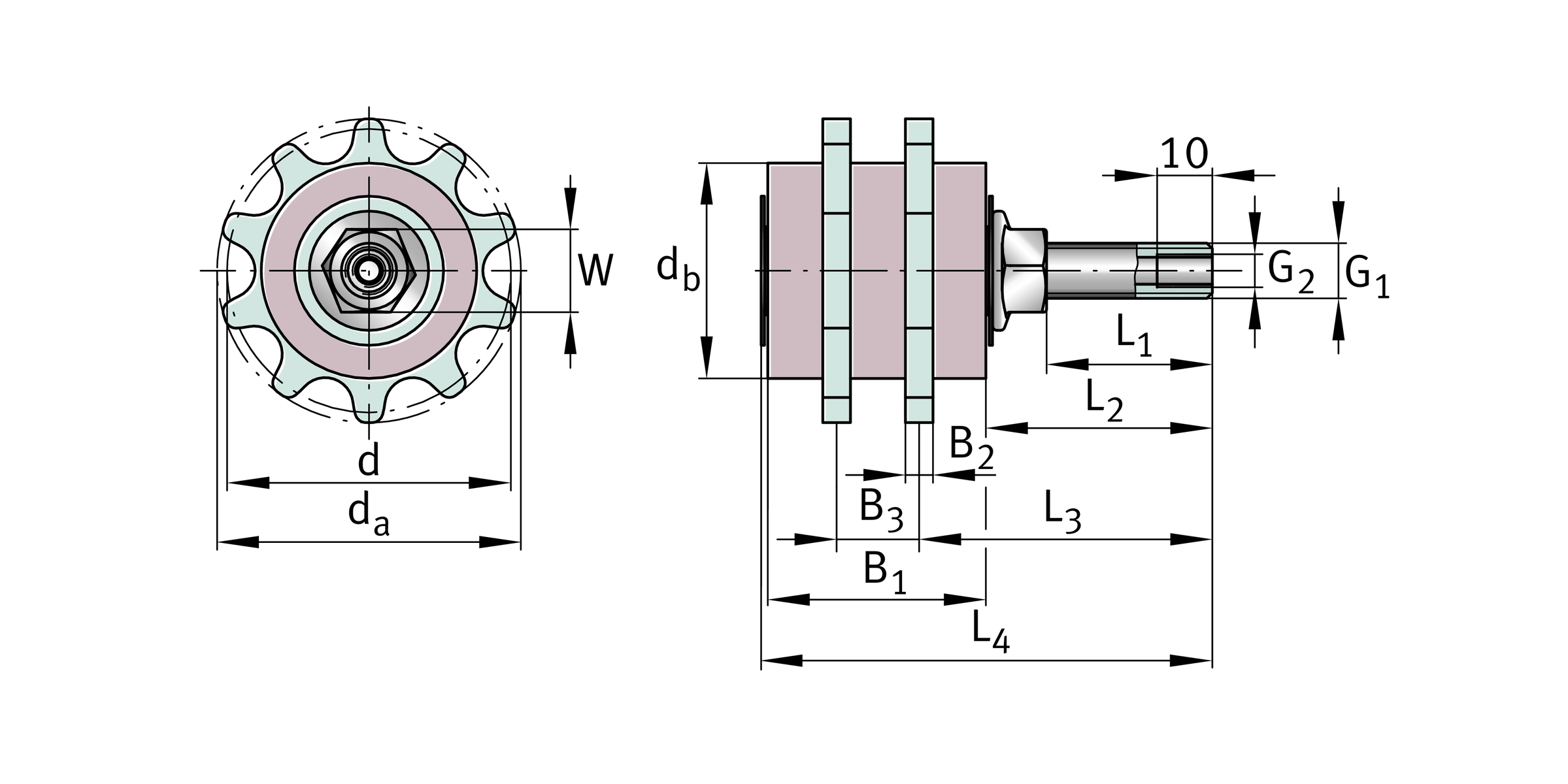

| z | 8 | Teeth number |
| d | 66.37 mm | Pitch circle diameter |
| da | 75 mm | |
| db | 48 mm | |
| B1 | 40 mm | |
| B2 | 10 mm | |
| B3 | 30 mm | |
| L1 | 30 mm | |
| L2 | 40.5 mm | |
| L3 | 40 mm | |
| L4 | 81.2 mm | |
| G1 | M16 | Thread |
| G2 | M10x1 | Thread |
| W | 15 mm | Width across flats |
| ≈m | 0.5 kg | Weight |
Your current product variant
| Version | AB-/B-2 | Chain lubrication pinions, duplex design |
