Main Dimensions & Performance Data
| Cr | 402,000 N | Basic dynamic load rating, radial |
| C0r | 624,000 N | Basic static load rating, radial |
| d | 80 mm | Bore diameter bearing |
| d2 | 180 mm | Outer eye diameter |
| l6 | 231 mm | Total length welding head |
| D | 120 mm | Outside diameter bearing |
| B | 55 mm | Width inner ring, |
| ≈m | 10.1 kg | Weight |

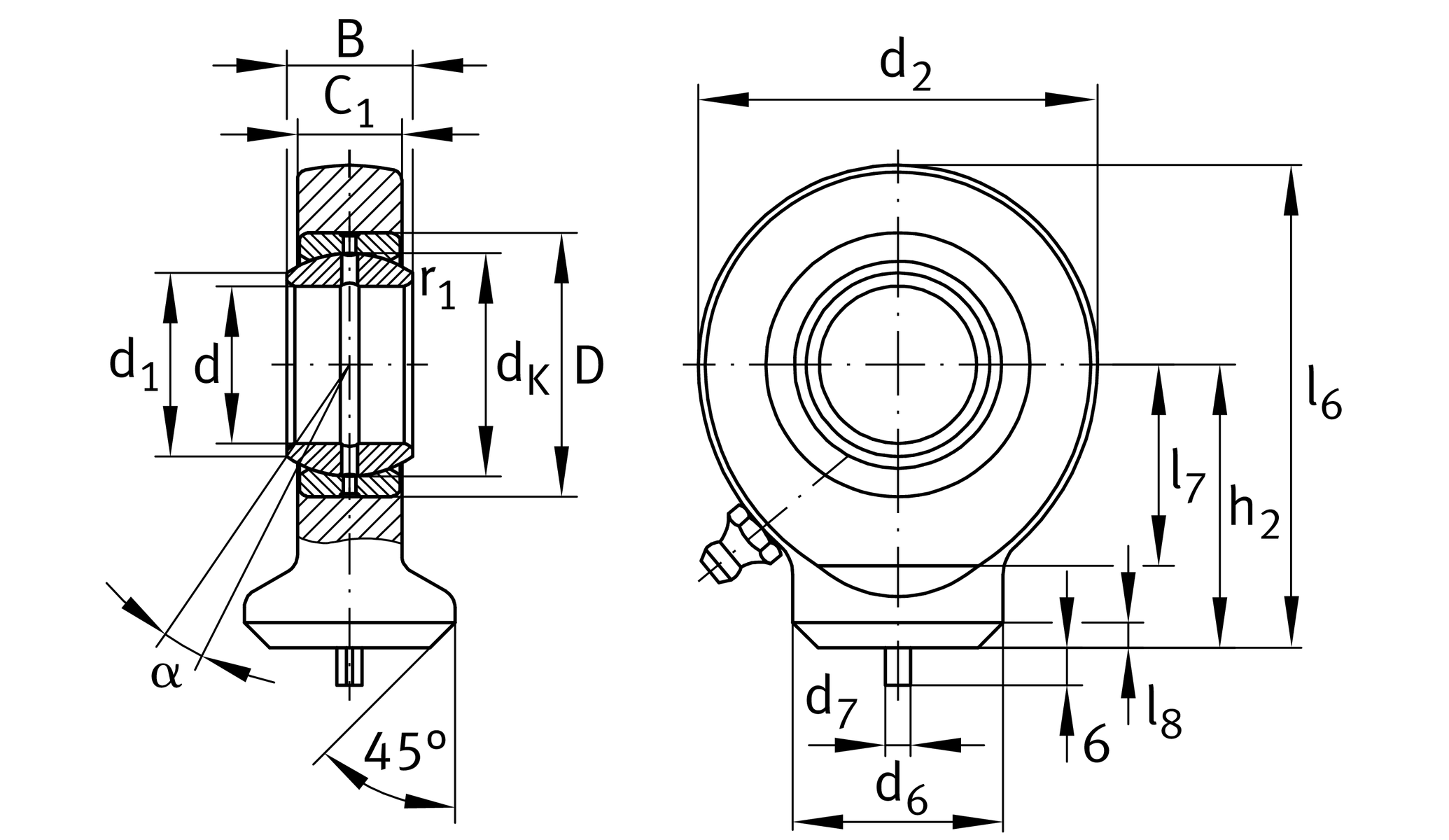

Dimensions
| α | 6 ° | Tilt angle |
| C1 | 47 mm | Width of the rod end |
| dK | 105 mm | Ball diameter |
| d 6 | 95 mm | Welding Shank Diameter |
| d7 | 6 mm | Centering pin diameter |
| h2 | 141 mm | Shank Length Welding Head |
| l7 | 100 mm | Distance drilling with/shaft start |
| l8 | 10 mm | Chamfer |
| dUT | -0.015 mm | Bore diameter bearing, lower tolerance |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| BUT | -0.15 mm | Width inner ring, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| Grmax | 0.142 mm | Radial clearance, maximum |
| Grmin | 0.055 mm | Radial clearance, minimum |
| Gr | 0,055 - 0,142 | Radial Clearance |
Mounting dimensions
| r1smin | 1 mm | Edge Spacing |
| d1 | 89.4 mm | Outer flange diameter inner ring |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
