ARCALUB-X.CHAIN-PINION-08AB1-Z12-G
Chain pinion ARCALUB-X.CHAIN-PINION-08AB1-Z12-G
Thêm vào yêu cầu báo giá
Technical data
Lubrication of chains
Usage
Simplex (single-row)
Design
axial
Lubricant feed
Pinion: plastic, roller: open cell PU foam
Material
top
0 °C … +60 °C
Operating temperature
7 m/s
Max. permissible circumferential speed at outside diameter
Oil
Lubricant
08 A/B-1
Chain type according to ISO 606
z
12
Teeth number

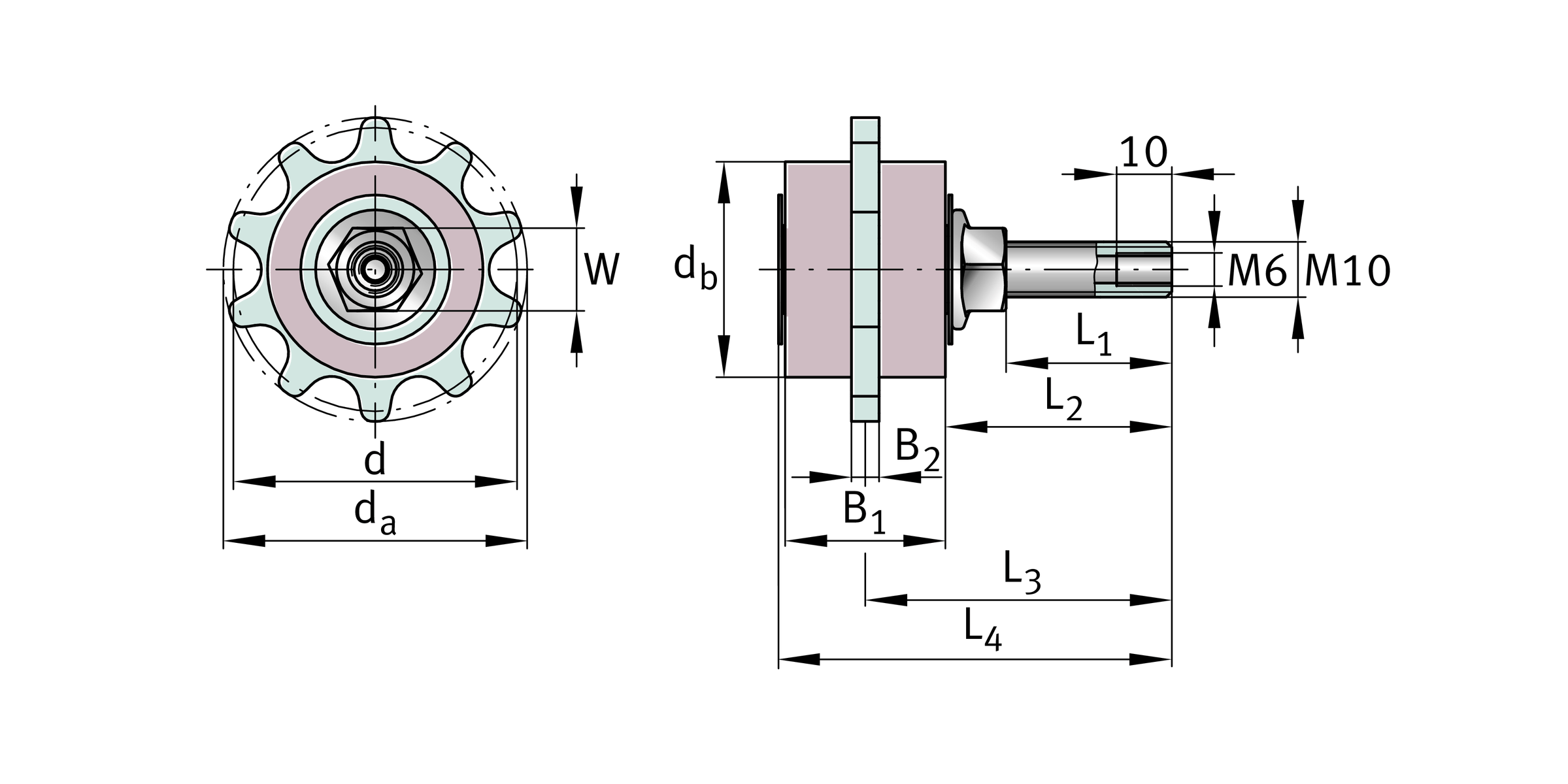

d
49.07 mm
Pitch circle diameter
da
53 mm
db
39 mm
B1
29 mm
B2
5 mm
L1
30 mm
L2
41 mm
L3
55.5 mm
L4
71.2 mm
W
15 mm
Width across flats
≈m
0.3 kg
Weight

Your current product variant
VersionAB-/B-1Chain lubrication pinions, simplex design
