GE80-XL-KTT-B
Radial insert ball bearing GE80-XL-KTT-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
80 mm
Bore diameter
DSP
140 mm
Outside diameter
B
53.2 mm
Width
Cur
2,450 N
Fatigue load limit, radial
B1
70.7 mm
Locking collar total width
Cr
76,000 N
Basic dynamic load rating, radial
C0r
54,000 N
Basic static load rating, radial
≈m
2.78 kg
Weight

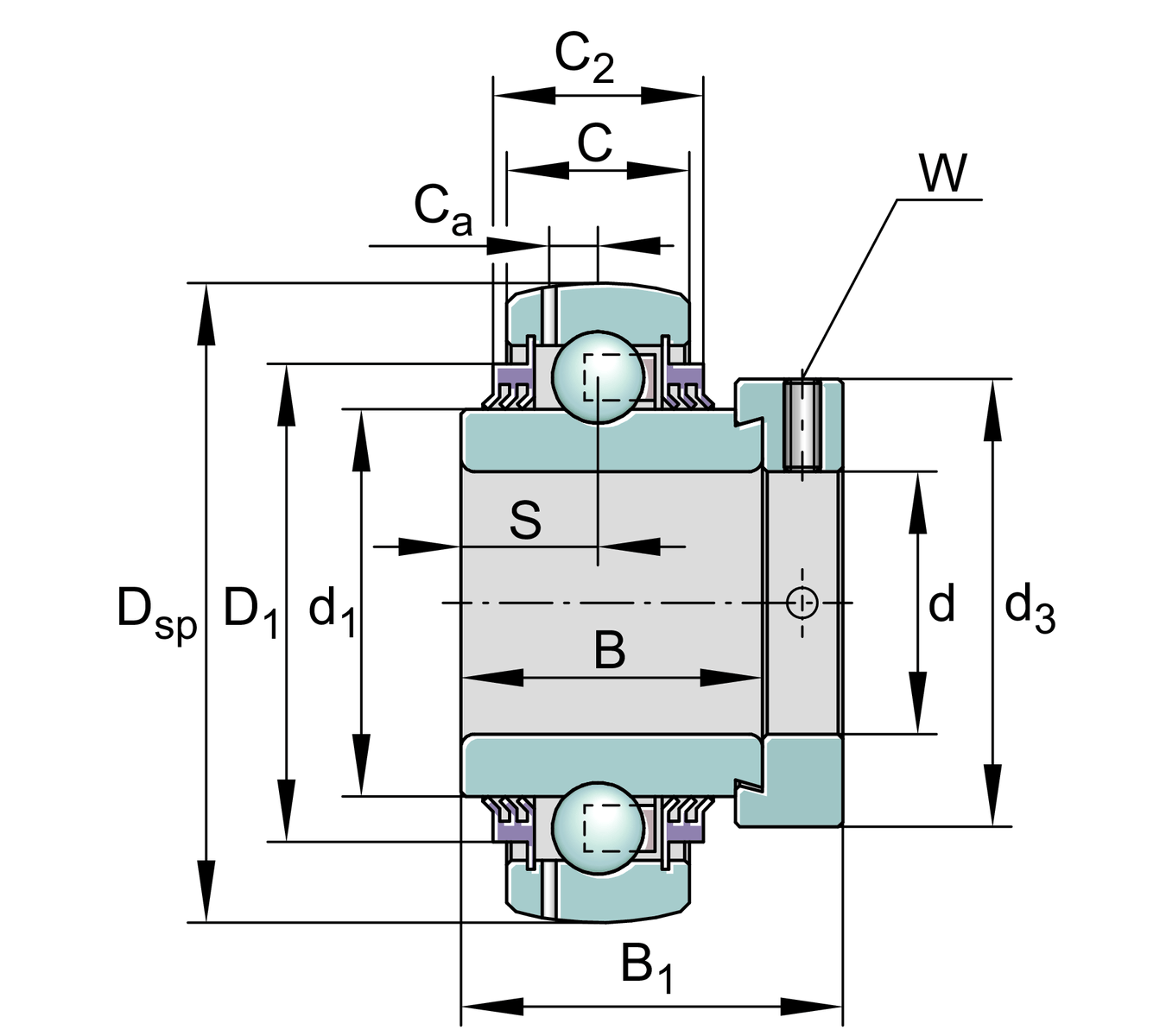

Dimensions
C
30 mm
Width, outer ring
C2
38 mm
Sealing total width
S
23.4 mm
Distance raceway
d1
97 mm
Rib diameter inner ring
D1
120 mm
Outside diameter seal
Ca
8.8 mm
Distance to lubrication hole
d3
108 mm
Outside diameter locking collar/locknut
W
6 mm
Width of flats

Calculation factors
f0
14.7
Calculation factor

Your current product variant
SealingKTTTriple lip seals on both sides
Shape of outer surfaceB
