GE17-XL-KRR-B
Radial insert ball bearing GE17-XL-KRR-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
17 mm
Bore diameter
DSP
40 mm
Outside diameter
B
27.8 mm
Width
Cur
248 N
Fatigue load limit, radial
B1
37.4 mm
Locking collar total width
Cr
9,800 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
≈m
0.12 kg
Weight

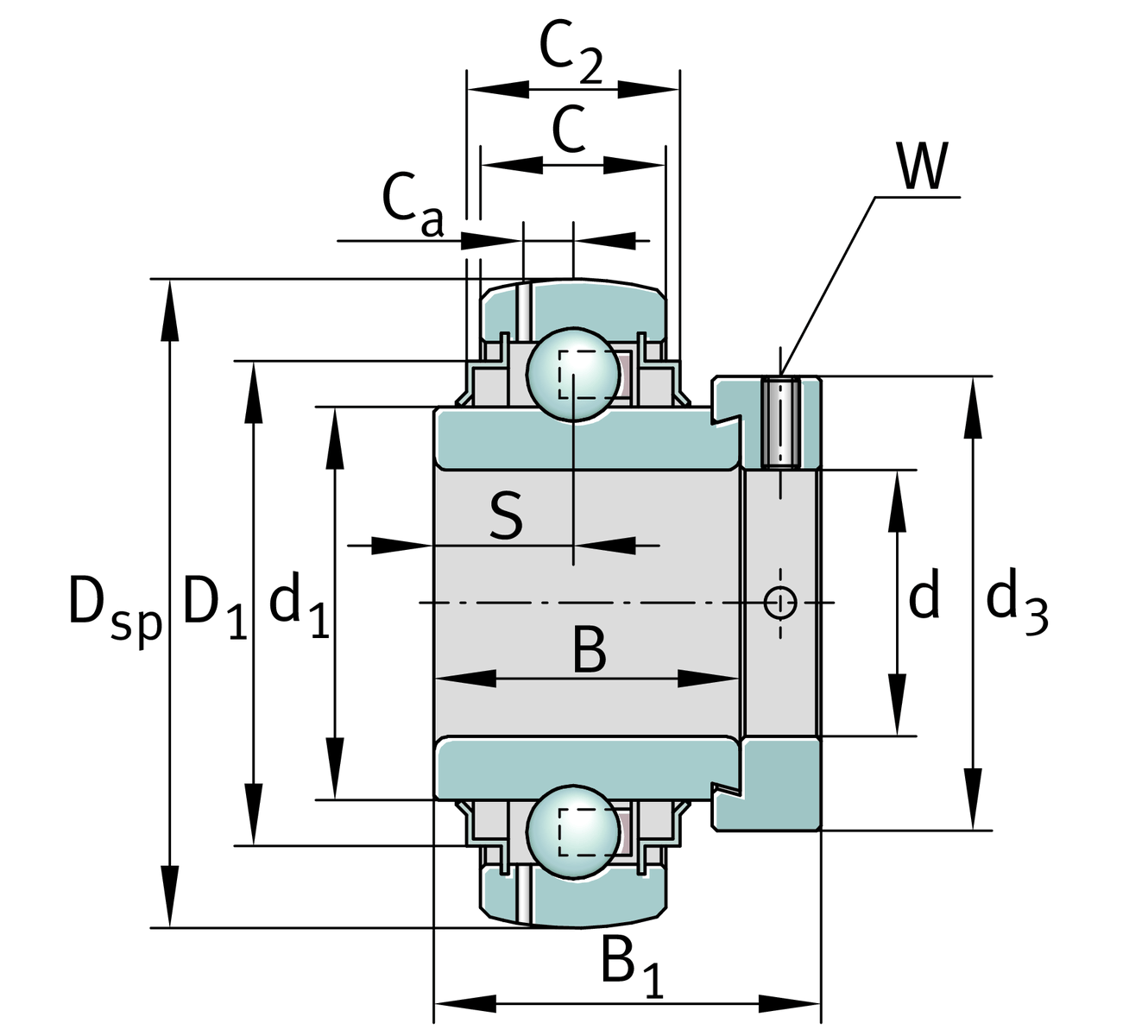

Dimensions
C
12 mm
Width, outer ring
C2
16.6 mm
Sealing total width
S
13.9 mm
Distance raceway
d1
23.9 mm
Rib diameter inner ring
D1
31.6 mm
Outside diameter seal
Ca
3.4 mm
Distance to lubrication hole
d3
28.4 mm
Outside diameter locking collar/locknut
W
3 mm
Width of flats

Calculation factors
f0
13
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
