Main Dimensions & Performance Data
| di | 101.6 mm | Bore Diameter |
0.013 mm | Bore diameter upper tolerance | |
0 mm | Bore diameter lower tolerance | |
| Da | 196.85 mm | Outside Diameter |
0 mm | Outside diameter upper tolerance | |
-0.046 mm | Outside diameter lower tolerance | |
| H | 22.22 mm | Height |
| ≈m | 3.6 kg | Weight |

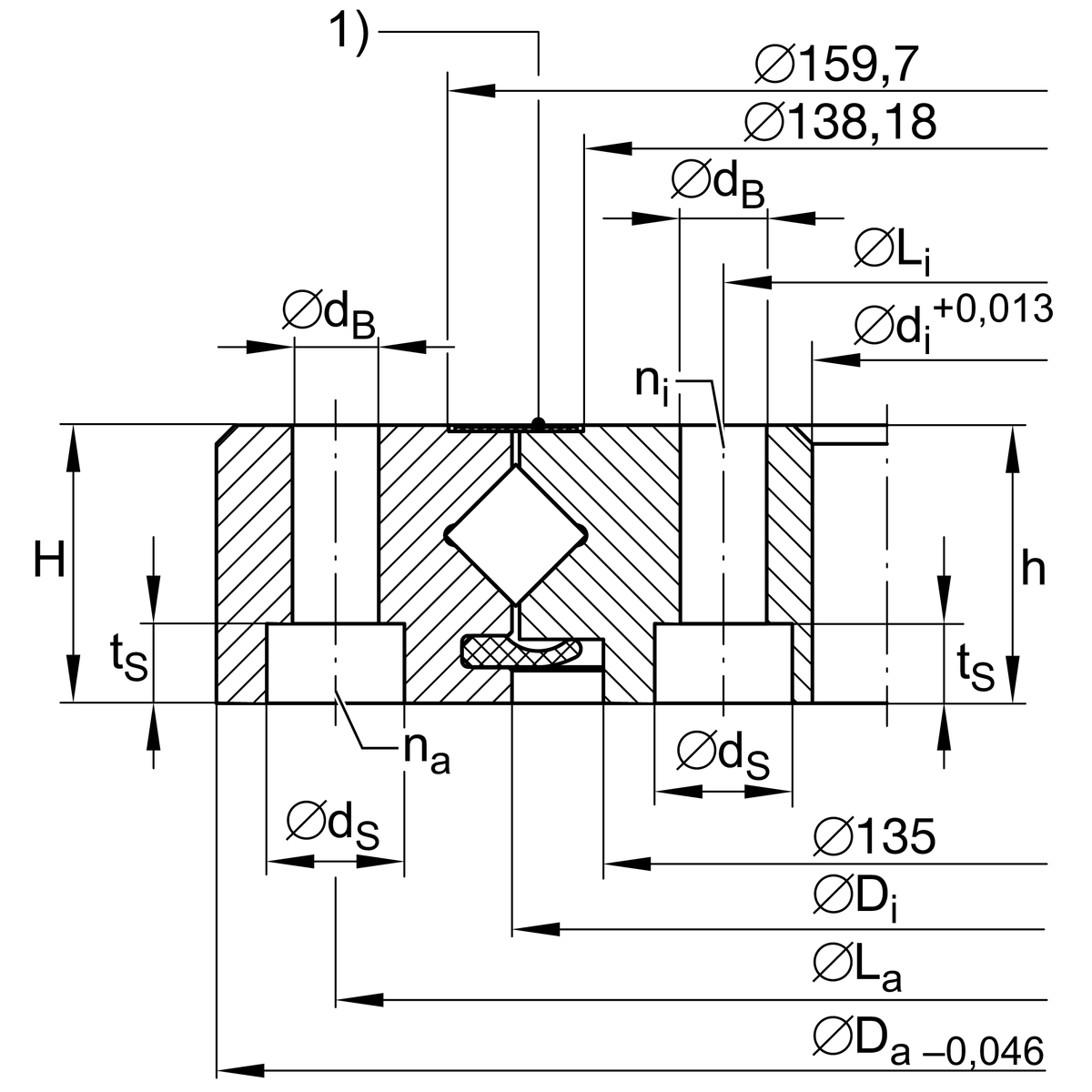

Dimensions
| Di | 149.6 mm | Inner diameter outer ring |
| La | 177.8 mm | Pitchcircle diameter fixing holes outer ring |
| na | 16 | Number of fixing holes in outer ring |
| hi | 22.22 mm | height of inner ring |
| dB | 6.9 mm | Fixing bore |
| dS | 11 mm | Counterbore diameter of fixing holes |
| tS | 6.35 mm | Counterbore depth of fixing holes |
| Li | 115.8 mm | Pitchcircle diameter fixing holes inner ring |
| ni | 16 | Number of fixing holes in inner ring |
| VSPmin | 0.005 mm | Min. bearing preload |
| VSPmax | 0.02 mm | Maximum bearing preload |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 80 °C | Operating temperature max. |
Calculation factors
| Ca | 55,000 N | Basic dynamic load rating, axial |
| Cr | 39,000 N | Basic dynamic load rating, radial (for radial load only) |
| C0a | 77,000 N | Basic static load rating, axial |
| C0r | 37,500 N | Basic static load rating, radial (for radial load only) |
| Fr zu. | 15,400 N | Max. radial load screws |
Your current product variant
| Coating | RR | Protected against corrosion by Corrotect special coating |
