Technical data
| U | 230 V | Voltage |
AC power | Current type | |
| f | 50 – 60 Hz | Power frequency |
| sc max | 260 mm | Max. working stroke cylinder |
| wmax | 430 mm | Grip width, max. |
| FP | 245 kN | Pulling force |

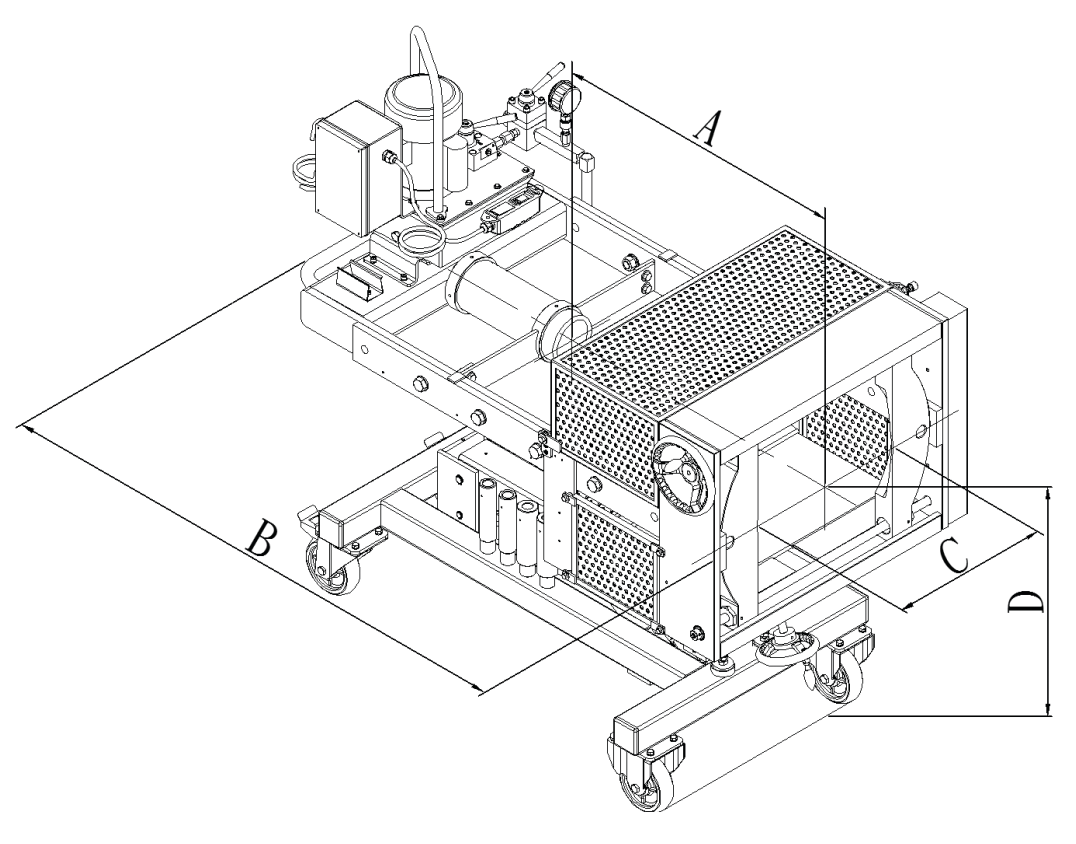

| A | 770 mm | |
| B | 1,560 mm | |
| Cmax | 430 mm | |
| D | 900 – 1430 | Working height range [bottom – center axis cylinder] (mm) |
1570 x 990 x 1510 | Dimensions [LxWxH] (mm) | |
Single acting, electrical | Pump | |
| ≈m | 430 kg | Weight |
Additional information
Plate puller, height adjustable, with safety cage | Functional principle | |
2 swivel castors with brake function, 2 fixed castors | Castors | |
Remote control, 4 adapter pieces (2x Ø 40 mm, 2x Ø 50 mm) | Included in delivery |
