GE17-AW
Spherical plain bearing GE17-AW
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
17 mm
Bore diameter bearing
D
47 mm
Outside diameter bearing
T
16 mm
Height
B
11.5 mm
Width Inner ring
Ca
178,000 N
Basic dynamic load rating, axial
C0a
296,000 N
Basic static load rating, axial
≈m
0.159 kg
Weight

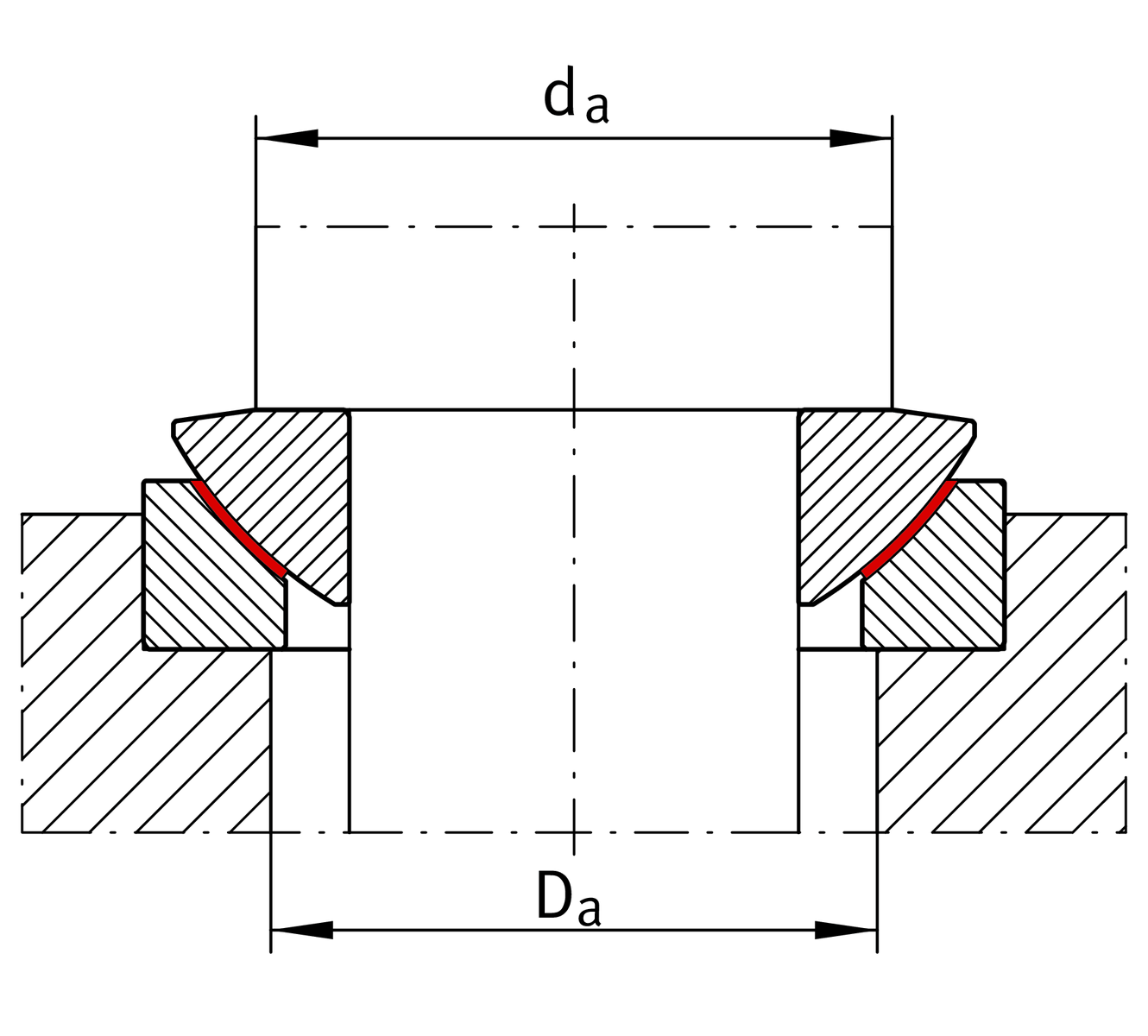

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
0.2 mm
Edge Spacing
da max
34 mm
Connection measure Inner ring
Da min
30.5 mm
Housing Connection Diameter

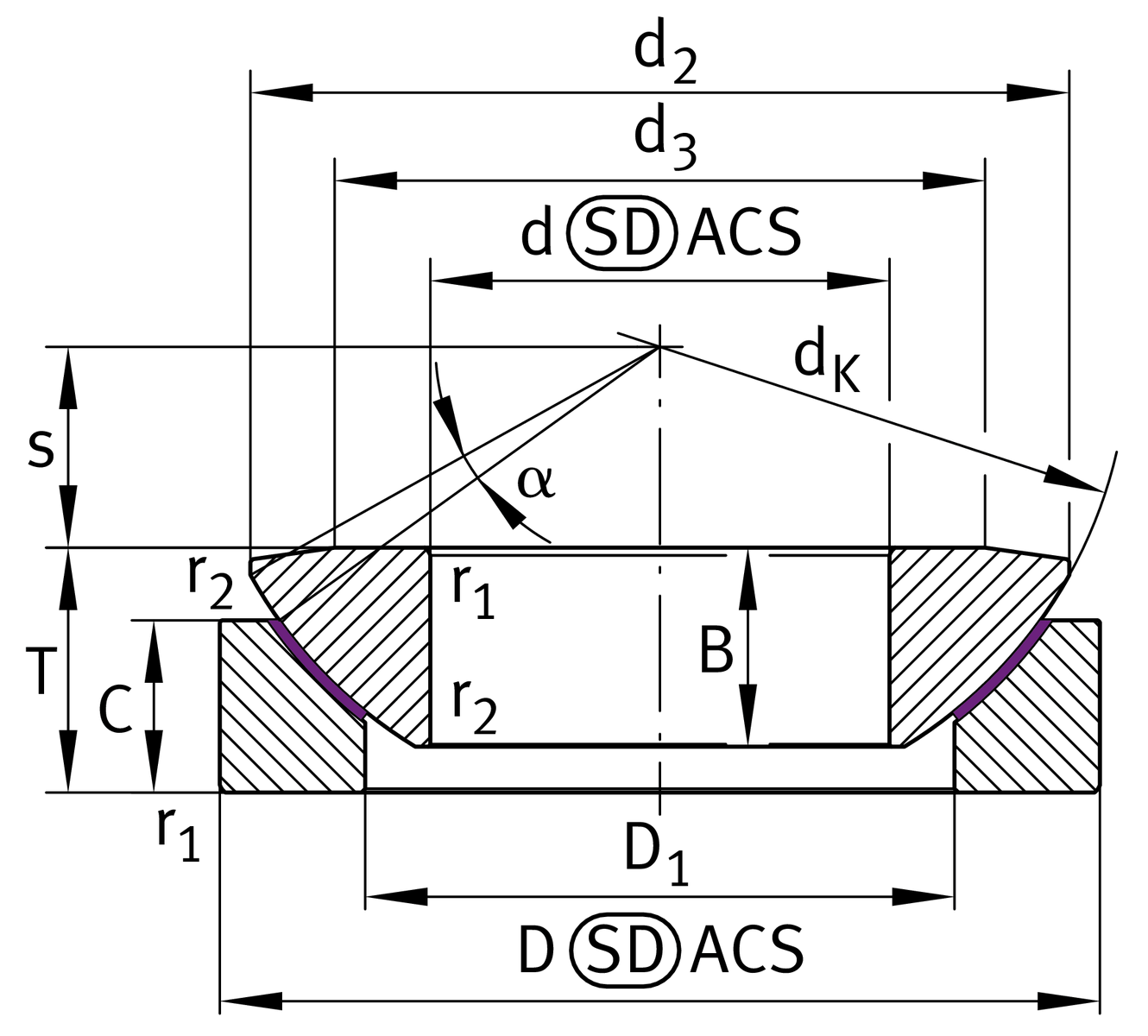

Dimensions
dK
50 mm
Ball diameter
d2
43.4 mm
Outer eye diameter
d3
34 mm
Front surface diameter of shaft washer
D1
28 mm
Bore diameter of housing washer
C
11.5 mm
Width Outer ring
s
11 mm
Plane Surface Spacing
α
6 °
Tilt angle
dOT
0 mm
Bore diameter bearing, upper tolerance
dUT
-0.008 mm
Bore diameter bearing, lower tolerance
DOT
0 mm
Outside diameter, upper tolerance
DUT
-0.011 mm
Outside diameter, lower tolerance
TOT
0 mm
Height, upper tolerance
BOT
0 mm
Width inner ring, upper tolerance
TUT
-0.4 mm
Height, lower tolerance
BUT
-0.24 mm
Width inner ring, lower tolerance
COT
0 mm
Width outer ring, upper tolerance
CUT
-0.24 mm
Width outer ring, lower tolerance

Temperature range
Tmin
-50 °C
Operating temperature min.
Tmax
150 °C
Operating temperature max.

Your current product variant
FabricELGOGLIDEELGOGLIDE
