FLCTEY17-XL

Flanged housing unit FLCTEY17-XL

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	17 mm	Bore diameter
L	58.7 mm	Flange width
H	81 mm	Height flange
U	24.4 mm	Total height unit
C_r	10,100 N	Basic dynamic load rating, radial
C_0r	4,750 N	Basic static load rating, radial
C_ur	219 N	Fatigue load limit, radial
≈m	0.26 kg	Weight

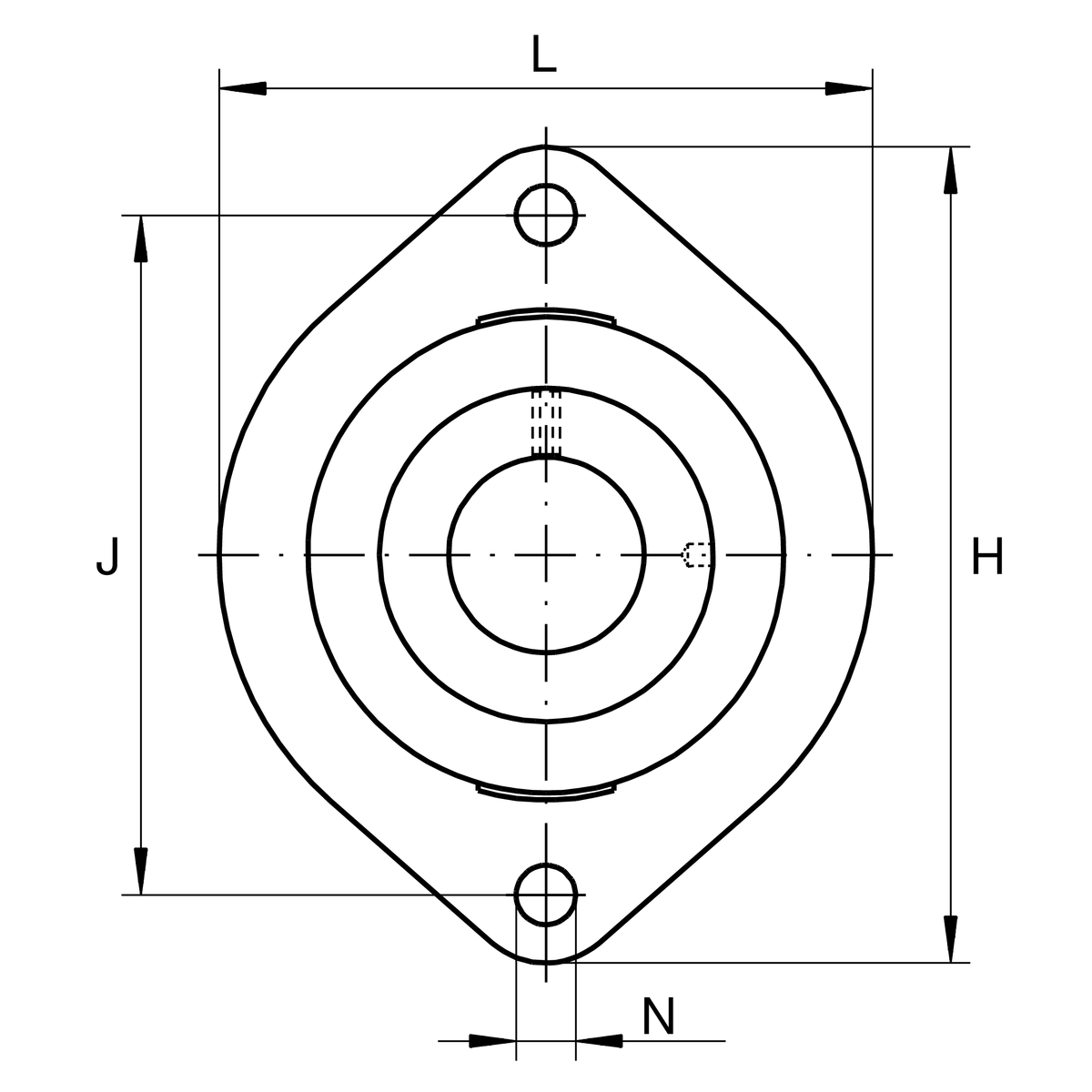

Mounting dimensions

J	63.5 mm	Distance fixing bore
J	63.5 mm	Pitch circle diameter (holes)
N	6.6 mm	Fixing bore
n	2	Number of screwing holes

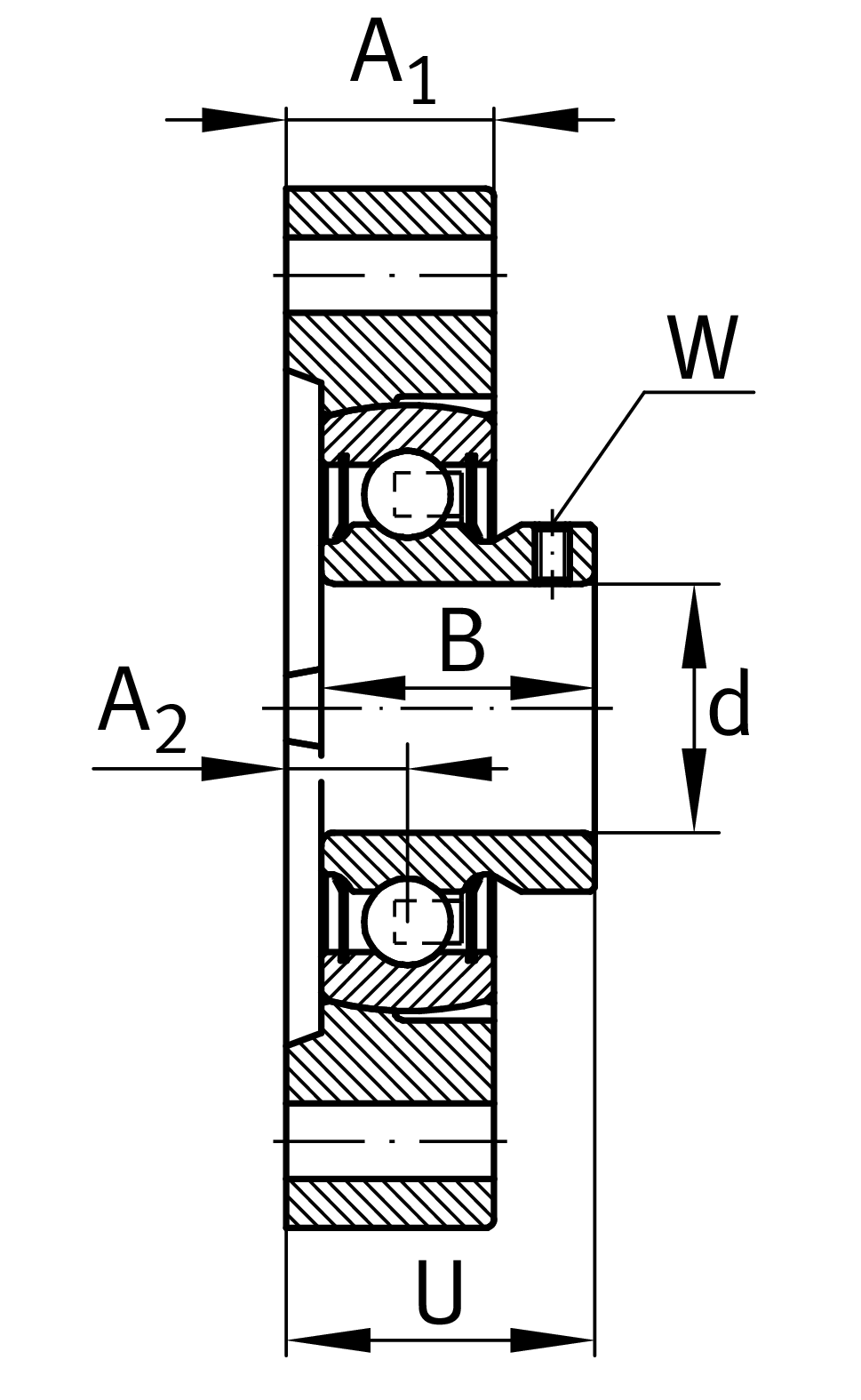

Dimensions

A₁	15 mm	Thickness of flange
A₂	8.4 mm	Distance raceway
d₃	28.4 mm	Outside diameter eccentric locking collar

Additional information

	1	Number of housings
	LCTE03	Housing
	AY17-XL-NPP-B	Bearing designation

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Your current product variant

Material	GG	Grey cast iron
