HEATER800-BASIC-480V-US

Induction heating device HEATER800-BASIC-480V-US

Thêm vào yêu cầu báo giá

Technical data

U	480 V	Operating voltage
f	50 – 60 Hz	Power frequency
P	24 kVA	Power consumption
I	48 A	Current rating
ϑ_{h max}	240 °C	Max. heating temperature
	0 – 99 min	Heating time
	Digital	Display
	1	Magnetic probe, quantity
≈m	307 kg	Weight

Functions

	+	Temperature hold
	+	Automatic demagnetization, <2A/cm
	—	Swivel arm
	—	Log function
	—	Delta-T control
	+	Temperature control
	+	Time control
	—	Temperature and time control
	—	Temperature and speed control
	+	Overheating protection
	+	Automatic power reduction
	+	Device supports horizontal / lying heating of the workpiece
	—	Device supports vertical / hanging heating of the workpiece

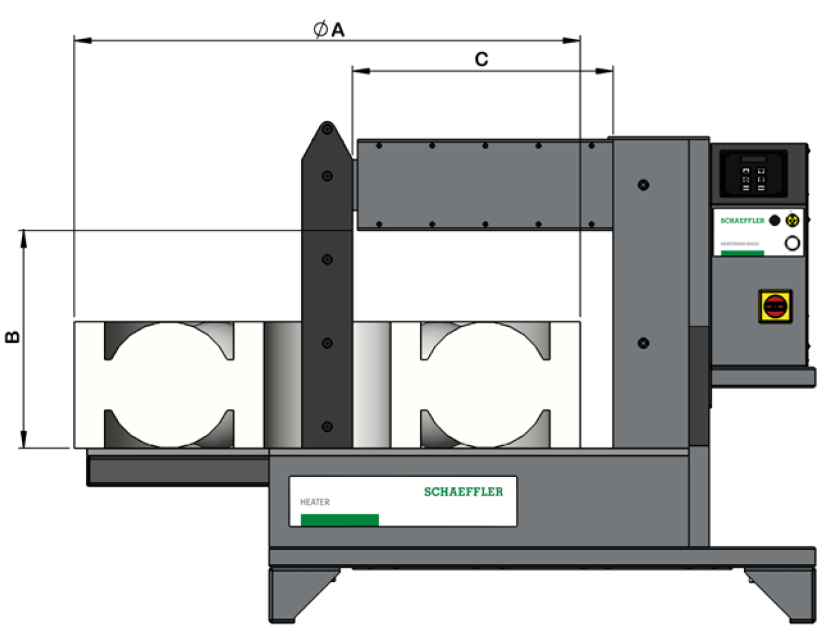

Dimensions

	1,080 mm	Length HEATER
	650 mm	Width HEATER
	955 mm	Height HEATER
B	430 mm	Space between poles
C	515 mm	Pole length

Workpiece to be heated

	145 mm	Min. inner diameter workpiece, horizontal heating: with included yoke
	60 mm	Min. inner diameter workpiece, horizontal heating: with optional yoke
ØA_max	1,150 mm	Max. outer diameter workpiece
	420 mm	Max. workpiece width, horizontal heating
m_{b max}	800 kg	Max. workpiece weight

Additional information

	1	Yokes included, quantity
	100x100	Yokes included, cross section (mm²)

Your current product variant

Series	BASIC	Base version
Version	800	mb max = 800 kg
