HEATER100-BASIC-240V-US

Induction heating device HEATER100-BASIC-240V-US

Thêm vào yêu cầu báo giá

Technical data

U	240 V	Operating voltage
f	50 – 60 Hz	Power frequency
P	3.6 kVA	Power consumption
I	15 A	Current rating
ϑ_{h max}	240 °C	Max. heating temperature
	0 – 99 min	Heating time
	Digital	Display
	1	Magnetic probe, quantity
≈m	36.3 kg	Weight

Functions

	+	Temperature hold
	+	Automatic demagnetization, <2A/cm
	+	Swivel arm
	—	Log function
	—	Delta-T control
	+	Temperature control
	+	Time control
	—	Temperature and time control
	—	Temperature and speed control
	+	Overheating protection
	+	Automatic power reduction
	+	Device supports horizontal / lying heating of the workpiece
	+	Device supports vertical / hanging heating of the workpiece

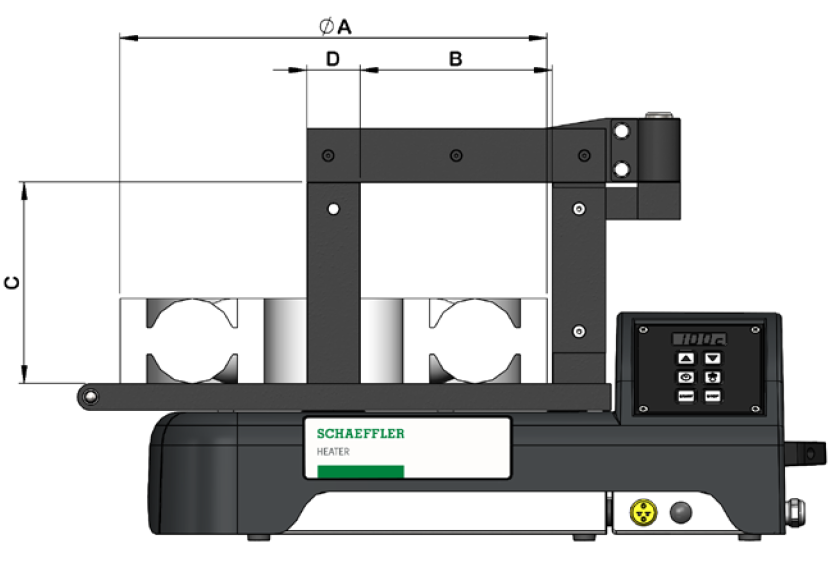

Dimensions

	702 mm	Length HEATER
	256 mm	Width HEATER
	392 mm	Height HEATER
B	180 mm	Space between poles
C	185 mm	Pole length
D	50x50	Pole cross section (mm²)

Workpiece to be heated

	30 mm	Min. inner diameter workpiece, vertical heating: with included yoke
	15 mm	Min. inner diameter workpiece, vertical heating: with optional yoke
	72 mm	Min. inner diameter workpiece, horizontal heating
ØA_max	500 mm	Max. outer diameter workpiece
	175 mm	Max. workpiece width, vertical heating
	180 mm	Max. workpiece width, horizontal heating
m_{b max}	100 kg	Max. workpiece weight

Additional information

	2	Yokes included, quantity
	20x20, 50x50	Yokes included, cross section (mm²)

Your current product variant

Series	BASIC	Base version
Version	100	mb max = 100 kg
