Technical data
| U | 230 V | Operating voltage |
| f | 50 - 60 Hz | Power frequency |
| P | 3.7 kVA | Power consumption |
| I | 16 A | Current rating |
| HR | < 2 A/cm | Residual magnetism |
| ≈m | 35 kg | Weight |

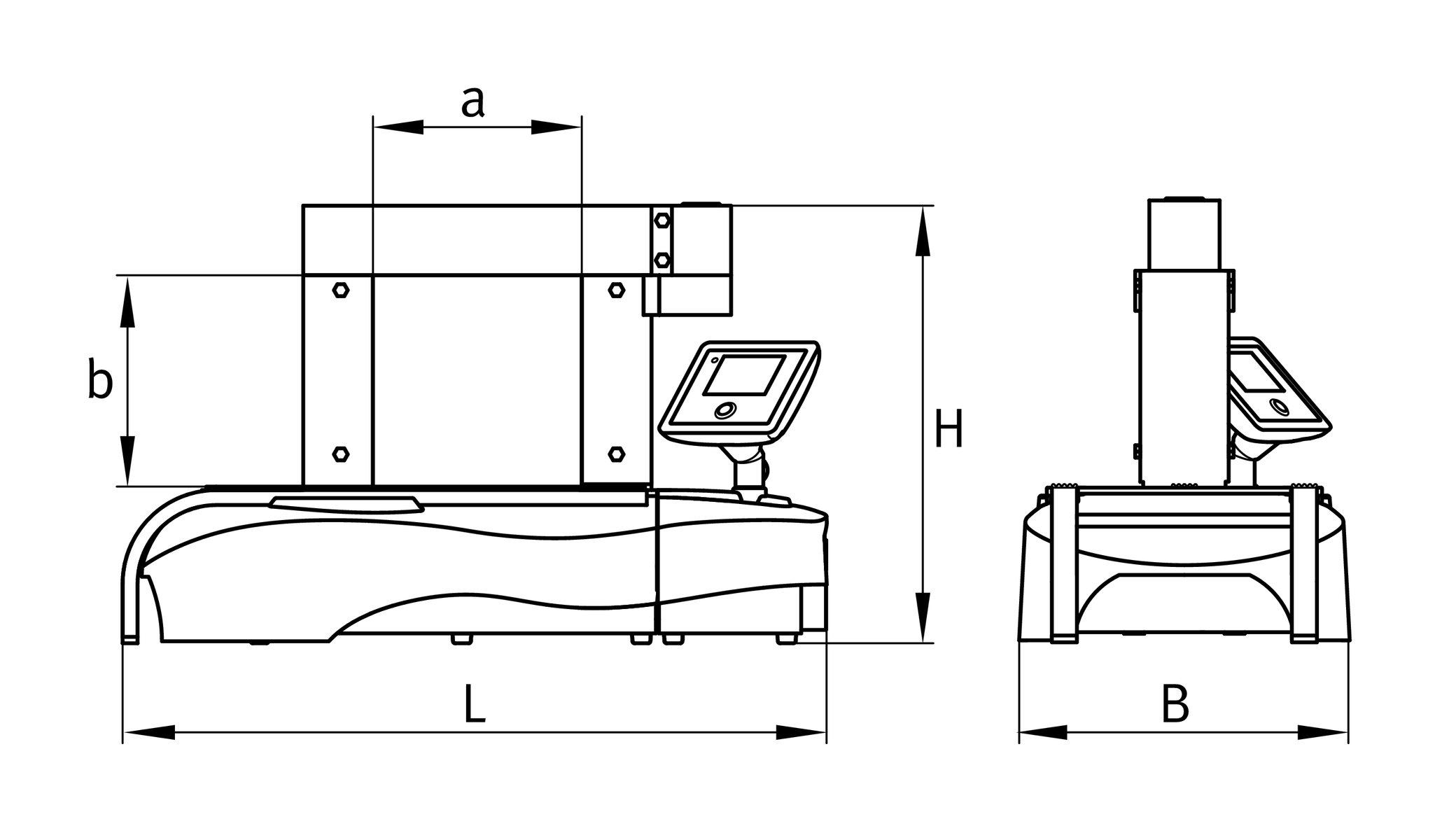

Dimensions
540 mm | Length HEATER | |
275 mm | Width HEATER | |
310 mm | Height HEATER | |
| a | 180 mm | |
| b | 180 mm |
Workpiece to be heated
70 mm | Min. inner diameter workpiece (by using the ledge in scope of delivery) | |
| ØAmax | 500 mm | Max. outer diameter workpiece |
| mb max | 100 kg | Max. workpiece weight |
| mc | 80 kg | Max. workpiece weight: other component |
