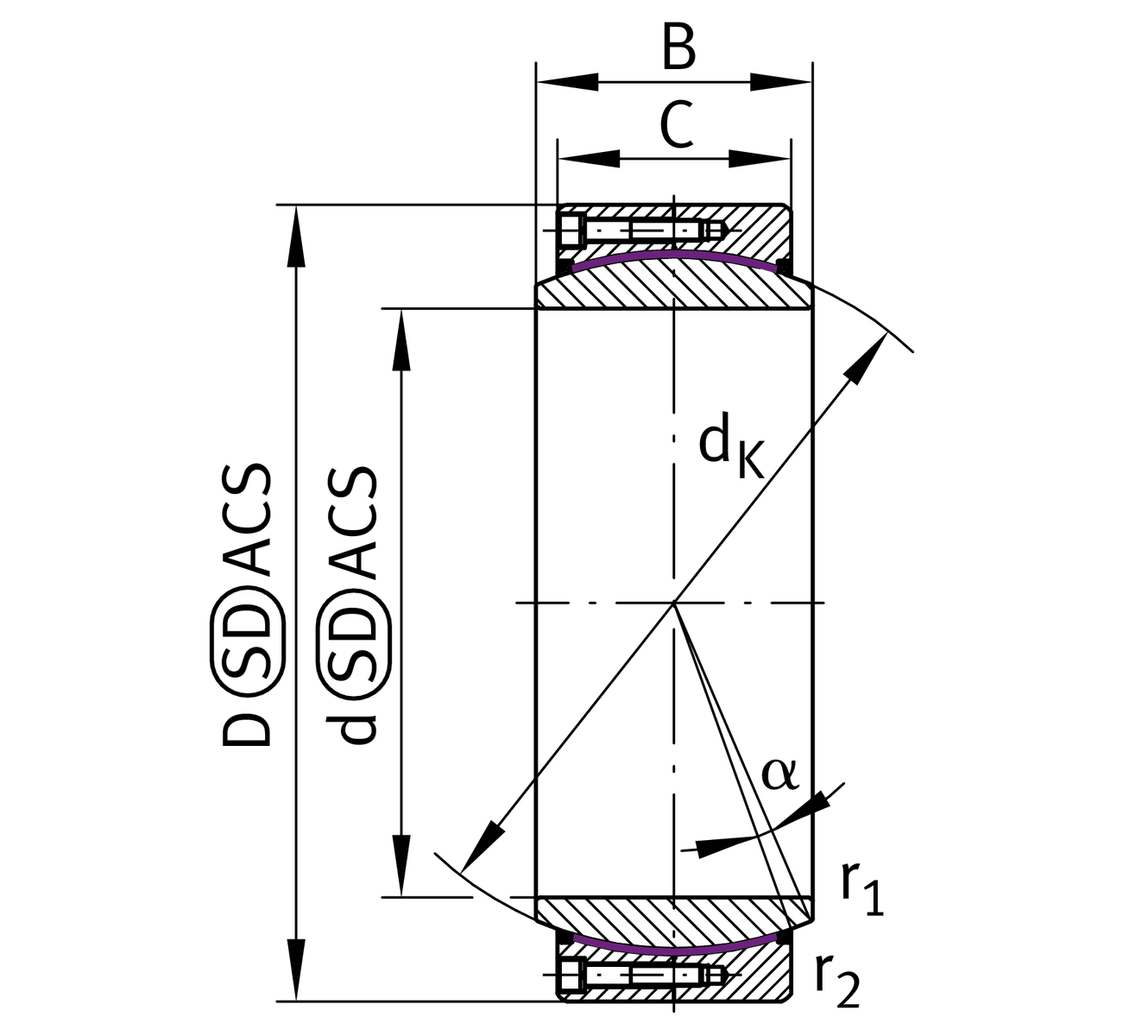

Main Dimensions & Performance Data
| d | 400 mm | Bore diameter bearing |
| D | 540 mm | Outside diameter bearing |
| B | 190 mm | Width Inner ring |
| C | 160 mm | Width Outer ring |
| Cr | 19,500,000 N | Basic dynamic load rating, radial |
| C0r | 32,500,000 N | Basic static load rating, radial |
| ≈m | 132.1 kg | Weight |

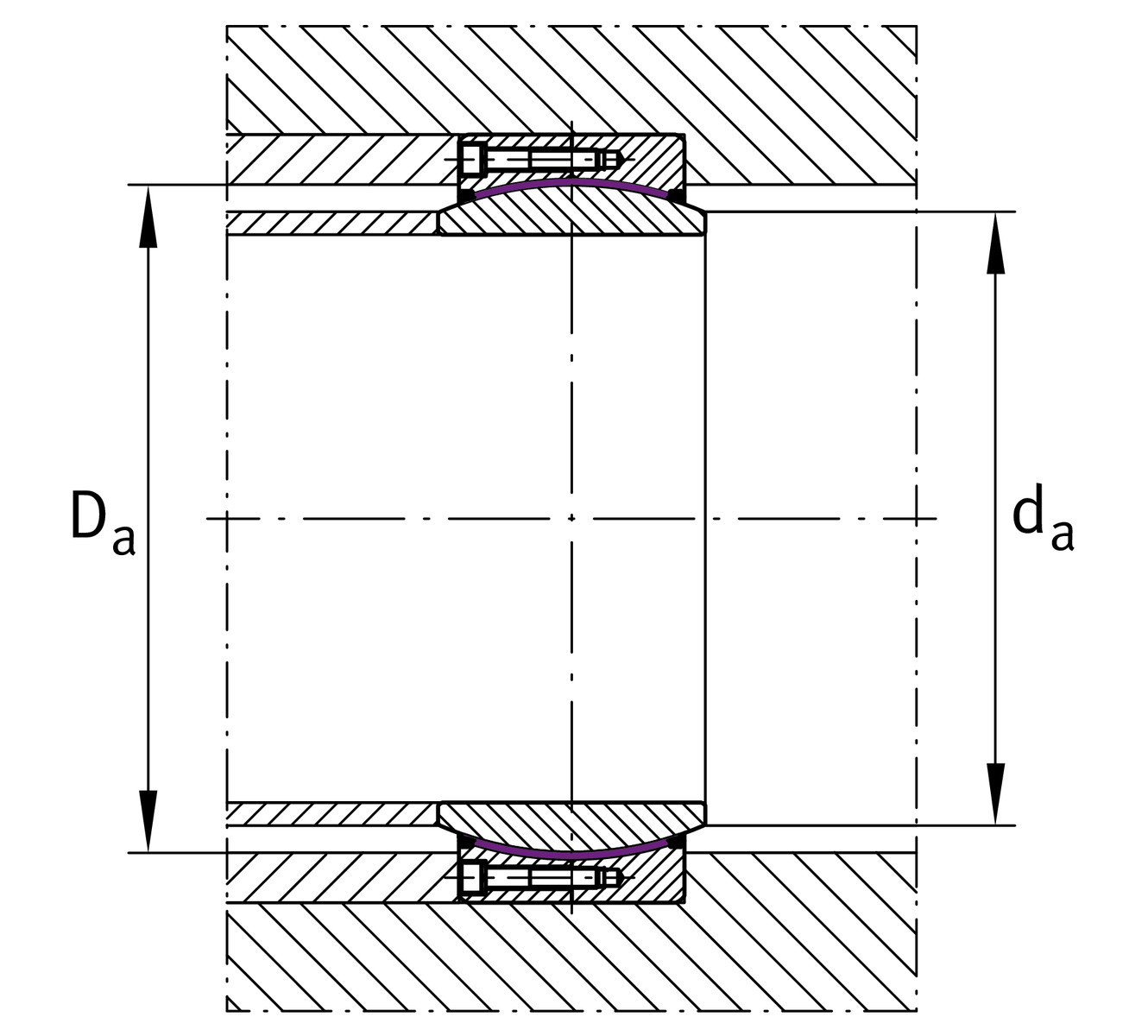

Mounting dimensions
| r1smin | 1.5 mm | Edge Spacing |
| r2smin | 4 mm | Edge Spacing |
| Da min | 447 mm | Housing Connection Diameter |
| damax | 429.8 mm | Connection measurement, inner ring |
Dimensions
| dK | 470 mm | Ball diameter |
| α | 3.9 ° | Tilt angle |
| dT | H8 | Bore diameter bearing, tolerance |
| DOT | 0 mm | Outside diameter, upper tolerance |
| DUT | -0.05 mm | Outside diameter, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| dUT | 0 mm | Bore diameter bearing, lower tolerance |
| BUT | -0.4 mm | Width inner ring, lower tolerance |
| dOT | 0.089 mm | Bore diameter bearing, upper tolerance |
| COT | 0 mm | Width outer ring, upper tolerance |
| CUT | -1 mm | Width outer ring, lower tolerance |
| Gr | 0 - 0,135 | Radial Clearance |
| Grmax | 0.135 mm | Radial clearance, maximum |
| Grmin | 0 mm | Radial clearance, minimum |
Temperature range
| Tmin | -40 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |

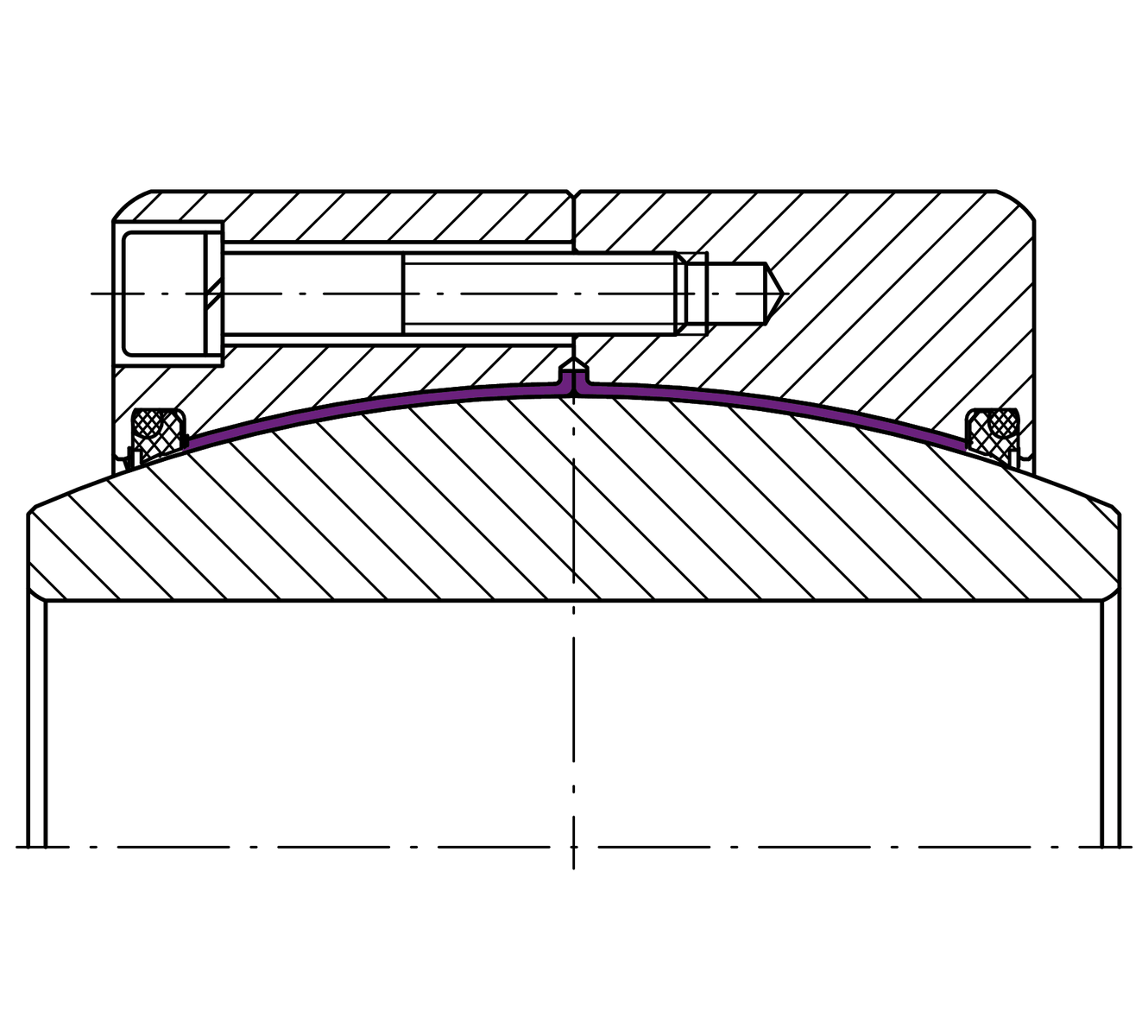

Your current product variant
| Sealing | 2RS2 | lip seals with increased sealing action on both sides |
| Bore lining | W7 | Inner ring bore with ELGOGLIDE lining, inside diameter d reduced by ELGOGLIDE thickness |
| Coating | Without | |
| Material | Steel | Steel |
| Fabric | ELGOGLIDE | ELGOGLIDE |
