Main Dimensions & Performance Data
| Cr | 3,570,000 N | Basic dynamic load rating, radial |
| C0r | 5,440,000 N | Basic static load rating, radial |
| d | 250 mm | Bore diameter bearing |
| d2 | 570 mm | Outer eye diameter |
| l4 | 815 mm | Total length internal thread head |
| D | 400 mm | Outside diameter bearing |
| B | 250 mm | Width inner ring |
| ≈m | 395 kg | Weight |

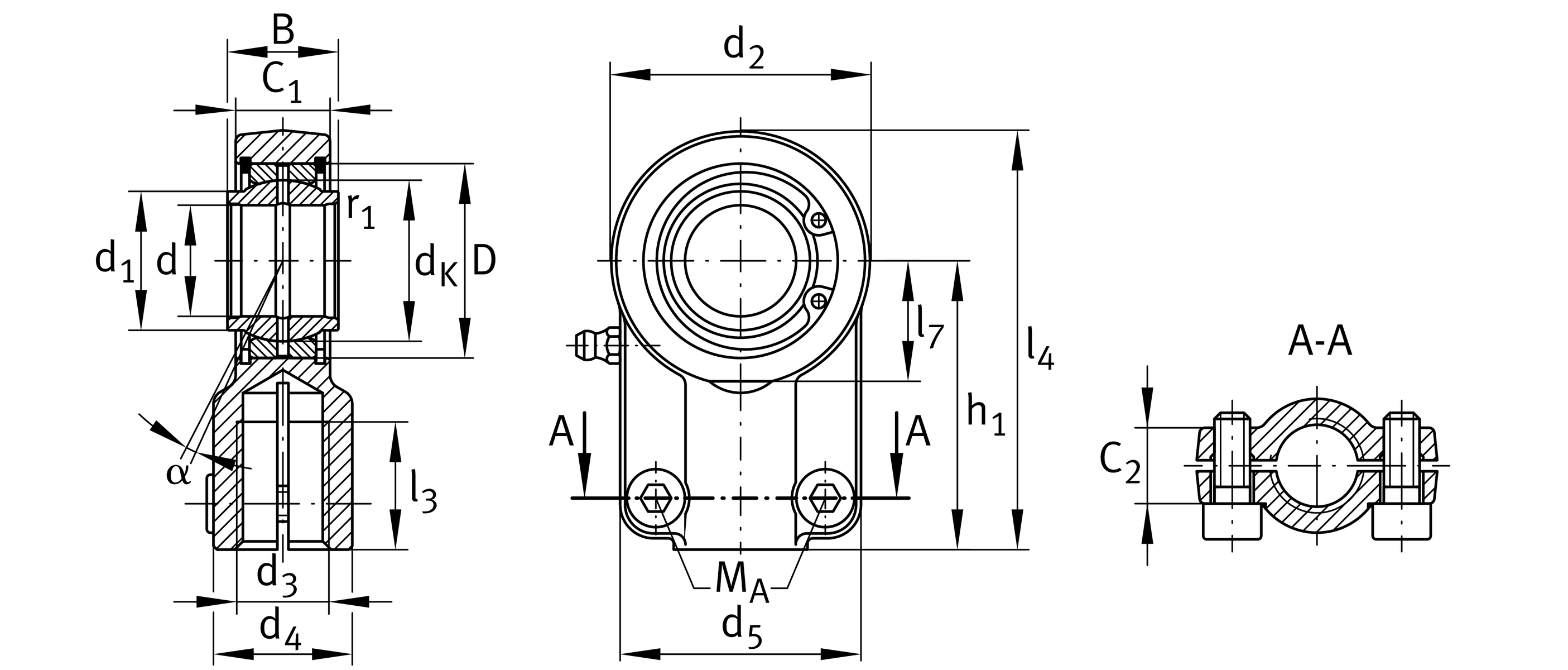

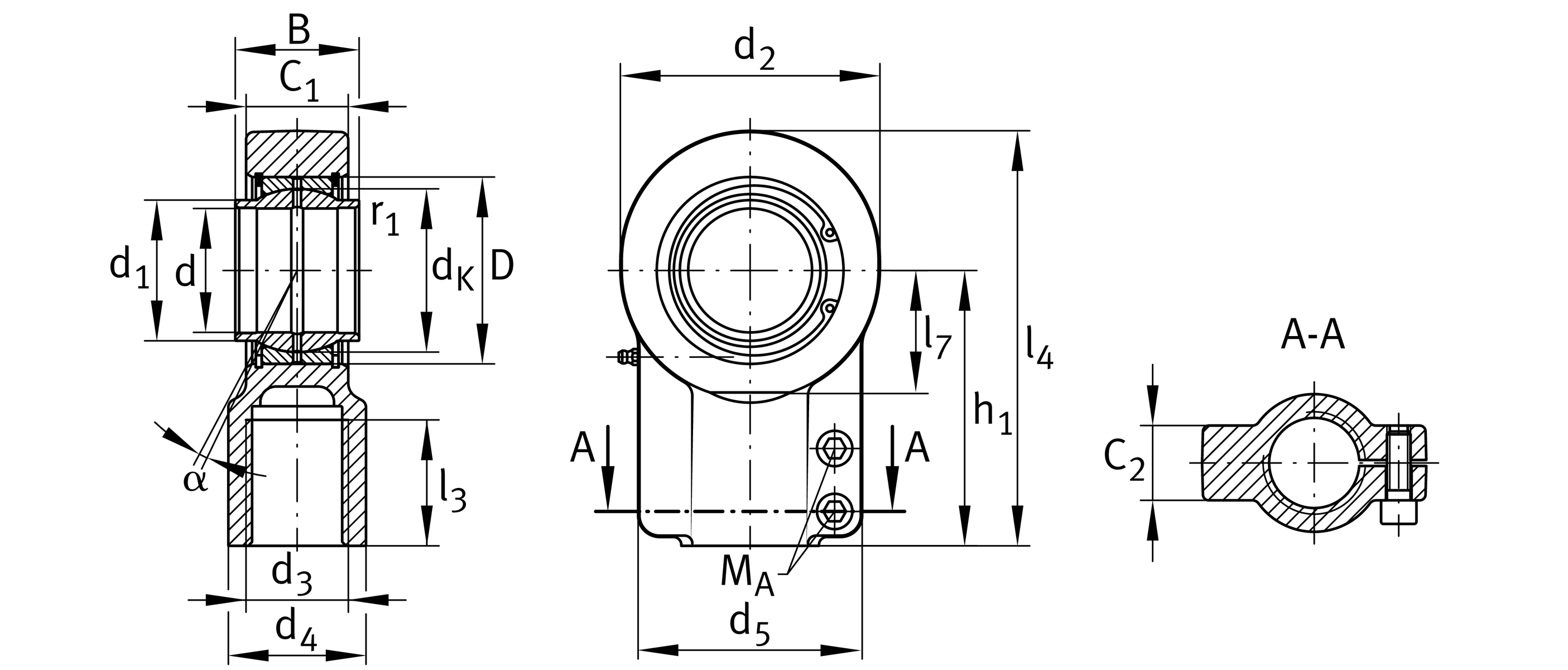

Dimensions
| α | 4 ° | Tilt angle |
| C1 | 192 mm | Width of the rod end |
| C2 | 142 mm | Width |
| dK | 350 mm | Ball diameter |
| d3 | M200x4 | Thread size |
| d4 | 300 mm | Shank diameter |
| d5 | 420 mm | Shank diameter, large |
| d 7 | M36x140 | Diameter |
| h1 | 530 mm | Shank Length Internal thread head |
| l3 | 205 mm | Thread length Internal thread |
| l7 | 265 mm | Distance drilling with/shaft start |
| dUT | 0 mm | Bore diameter bearing, lower tolerance |
| dT | H7 | Bore diameter bearing, tolerance |
| dOT | 0.046 mm | Bore diameter bearing, upper tolerance |
| BUT | -0.46 mm | Width inner ring, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| MA | 2,280 Nm | Tightening torque |
| FZ | 3,200,000 N | Cylinder Force |
| Gr | 0,065 - 0,239 | Radial Clearance |
| Grmin | 0.065 mm | Radial clearance, minimum |
| Grmax | 0.239 mm | Radial clearance, maximum |
Mounting dimensions
| r1smin | 0.6 mm | Edge Spacing |
| d1 | 317 mm | Outer flange diameter inner ring |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Your current product variant
| Sealing | Without |
