FAG INA Schaeffler
FAG
SNW44X0800
Adapter sleeve SNW44X0800
Thêm vào yêu cầu báo giá

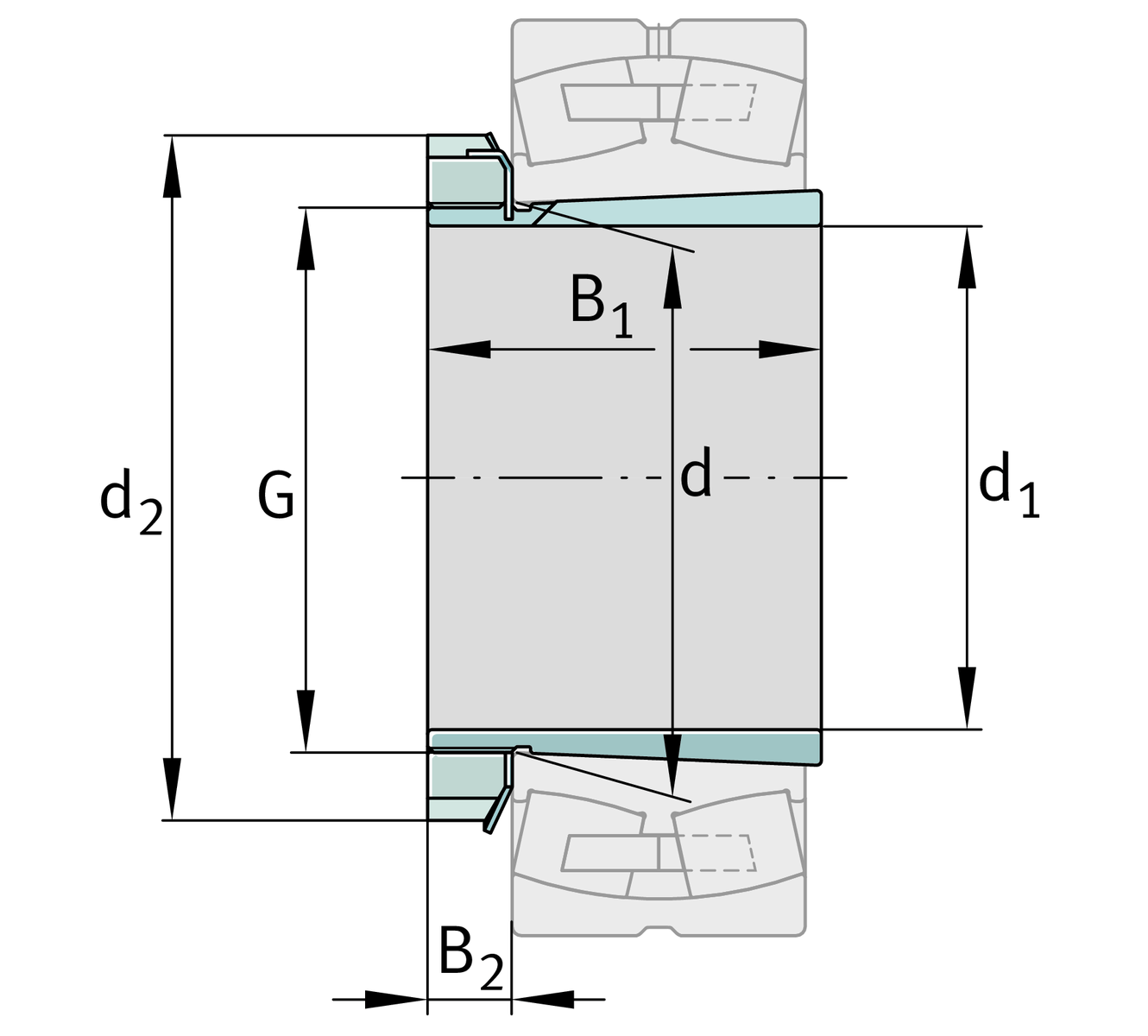

Main Dimensions & Performance Data
d1
8 in
bore diameter (Inch)
G
8,628
Thread
8
Threads per inch
B1
5.891 in
sleeve length (Inch)
d2
11.005 in
Outside diameter nut (Inch)
≈m
15.3 lbs
Weight

Dimensions
d
8.6614 in
Bore diameter bearing (Inch)
B2
4.97 in
Width nut and lock (Inch)

Additional information
N-44
Locknut
W-44
Fuse
1:12
Taper
