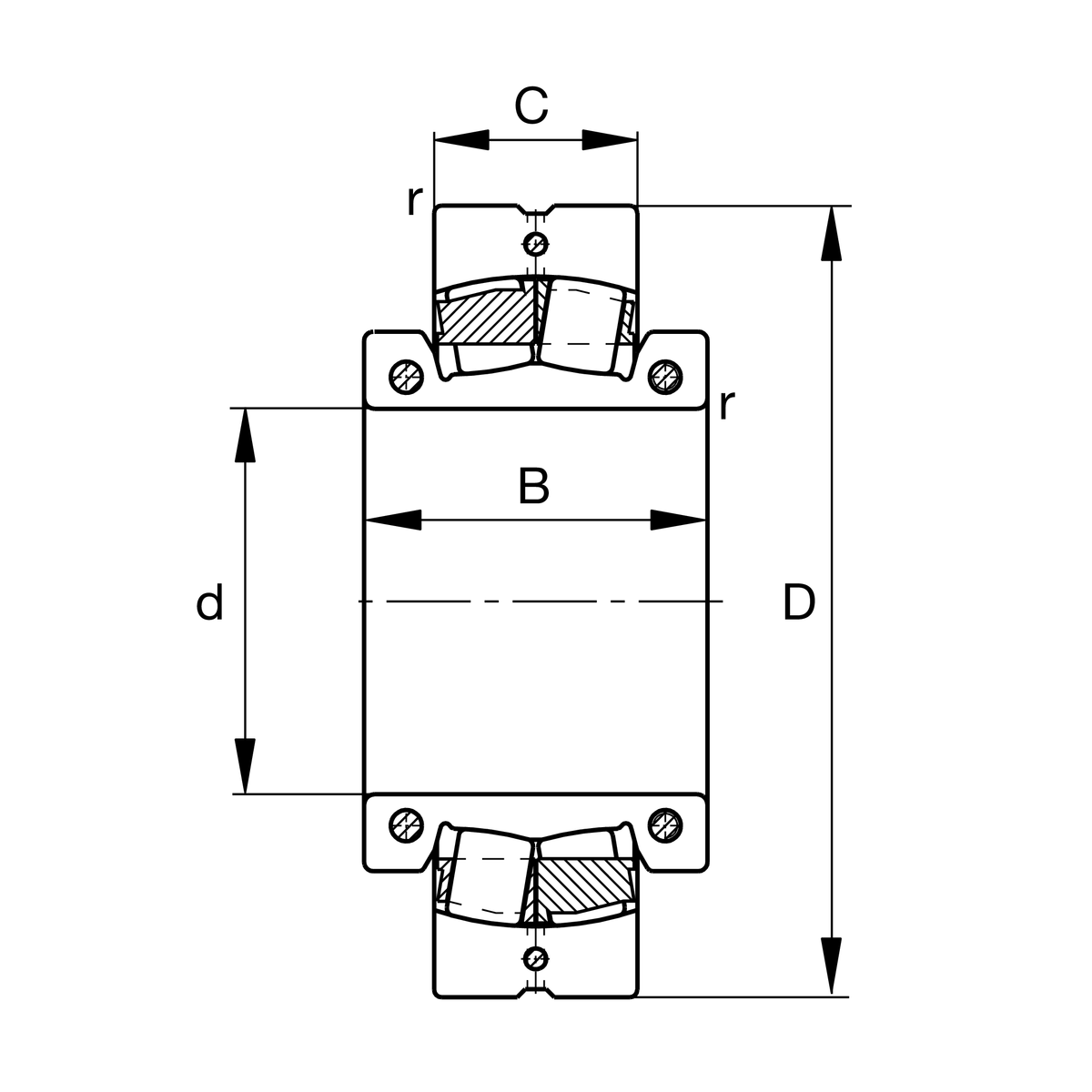

Main Dimensions & Performance Data
| d | 139.7 mm | Bore diameter |
| D | 240 mm | Outside diameter |
| C | 60 mm | Width, outer ring |
| Cr | 445,000 N | Basic dynamic load rating, radial |
| C0r | 690,000 N | Basic static load rating, radial |
| Cur | 52,000 N | Fatigue load limit, radial |
| nG | 1,130 1/min | Limiting speed |
| Fa max | 13,800 N | Maximum axial load |
| ≈m | 15.5 kg | Weight |
Mounting dimensions
| Mi | 35 Nm | Tightening torque clamping screw |
| Ma | 8.5 Nm | Tightening torque clamping screw |
Dimensions
| rmin | 2.1 mm | Minimum chamfer dimension |
| B | 106 mm | Width, inner ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Calculation factors
| e | 0.22 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 3.1 | Dynamic axial load factor |
| Y2 | 4.62 | Dynamic axial load factor |
| Y0 | 3.03 | Static axial load factor |
Additional information
23032K | Bearing designation | |
H3032X508 | Adapter sleeve |
Your current product variant
| Design | E1A | without central rip |
| Bore type | Z | Cylindrical |
| Cage | MA | Solid brass cage |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Relubrication feature | Standard | |
| Splitted | S. | Split bearing inch |
