Main Dimensions & Performance Data
| d | 95 mm | Bore diameter |
| D | 200 mm | Outside diameter |
| B | 67 mm | Width |
| Cr | 650,000 N | Basic dynamic load rating, radial |
| C0r | 710,000 N | Basic static load rating, radial |
| Cur | 126,000 N | Fatigue load limit, radial |
| nG | 2,600 1/min | Limiting speed |
| nϑr | 1,620 1/min | Reference speed |
| ≈m | 10.2 kg | Weight |

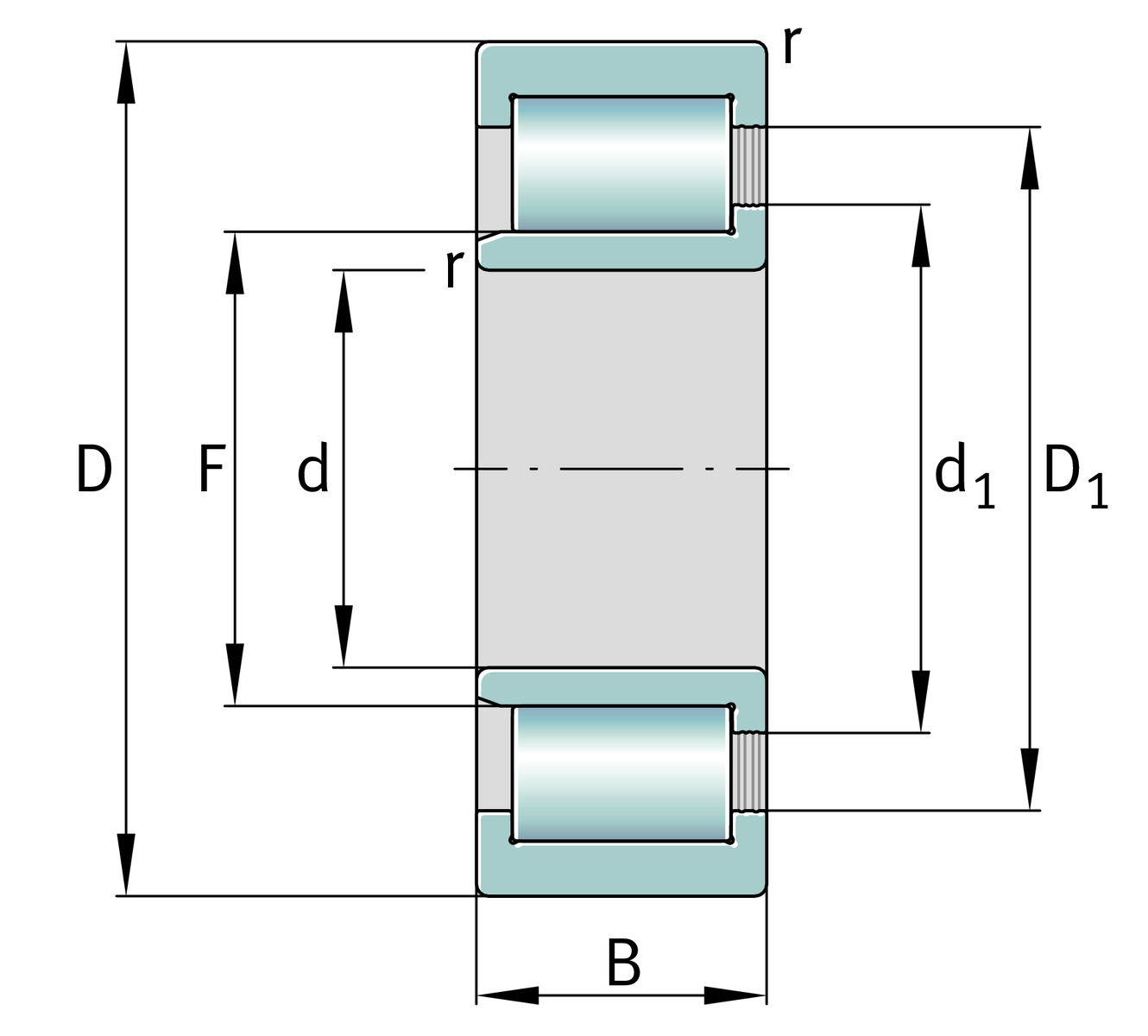

Dimensions
| D1 | 161.9 mm | Shoulder diameter outer ring |
| Da max | 161.5 mm | Maximum diameter of housing shoulder |
| d1 | 126.6 mm | Shoulder diameter inner ring |
| da min | 114.5 mm | Minimum diameter shaft shoulder |
| dc min | 126.5 mm | Minimum shaft shoulder |
| F | 114.7 mm | Raceway diameter inner ring |
| ra max | 3 mm | Maximum fillet radius |
| rmin | 3 mm | Minimum chamfer dimension |
| s | 4 mm | Axial displacement |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Number of rolling element rows | 1 | Single-row design |
