GE75-XL-KTT-B
Radial insert ball bearing GE75-XL-KTT-B
Thêm vào yêu cầu báo giá

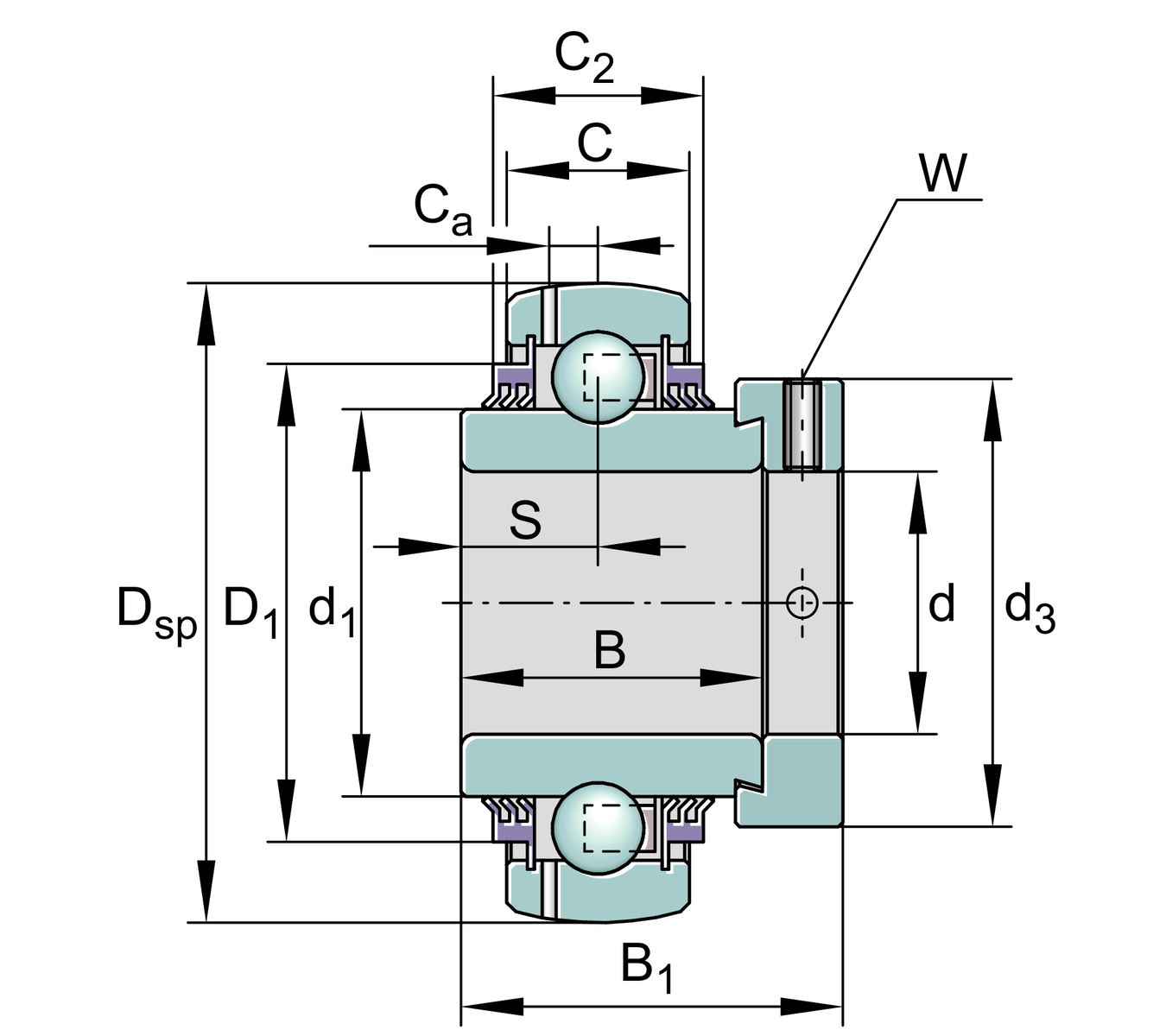

Main Dimensions & Performance Data
d
75 mm
Bore diameter
DSP
130 mm
Outside diameter
B
49.5 mm
Width
Cur
2,300 N
Fatigue load limit, radial
B1
67 mm
Locking collar total width
Cr
62,000 N
Basic dynamic load rating, radial
C0r
44,500 N
Basic static load rating, radial
≈m
2.156 kg
Weight

Dimensions
C
28 mm
Width, outer ring
C2
30.5 mm
Sealing total width
S
21.5 mm
Distance raceway
d1
90 mm
Rib diameter inner ring
D1
113 mm
Outside diameter seal
Ca
8.5 mm
Distance to lubrication hole
d3
100 mm
Outside diameter locking collar/locknut
W
6 mm
Width of flats

Calculation factors
f0
14.6
Calculation factor

Your current product variant
SealingKTTTriple lip seals on both sides
Shape of outer surfaceB
