Main Dimensions & Performance Data
| d1 | 90 mm | Bore Diameter |
0.004 mm | Bore diameter upper tolerance | |
-0.018 mm | Bore diameter lower tolerance | |
| Da | 115 mm | Outside Diameter |
0 mm | Outside diameter upper tolerance | |
-0.022 mm | Outside diameter lower tolerance | |
| H | 13 mm | Height of the assembled bearing |
| hi | 13 mm | heigth inner ring |
0.06 mm | Width upper tolerance | |
-0.06 mm | Width lower tolerance | |
| ≈m | 364 g | Weight |

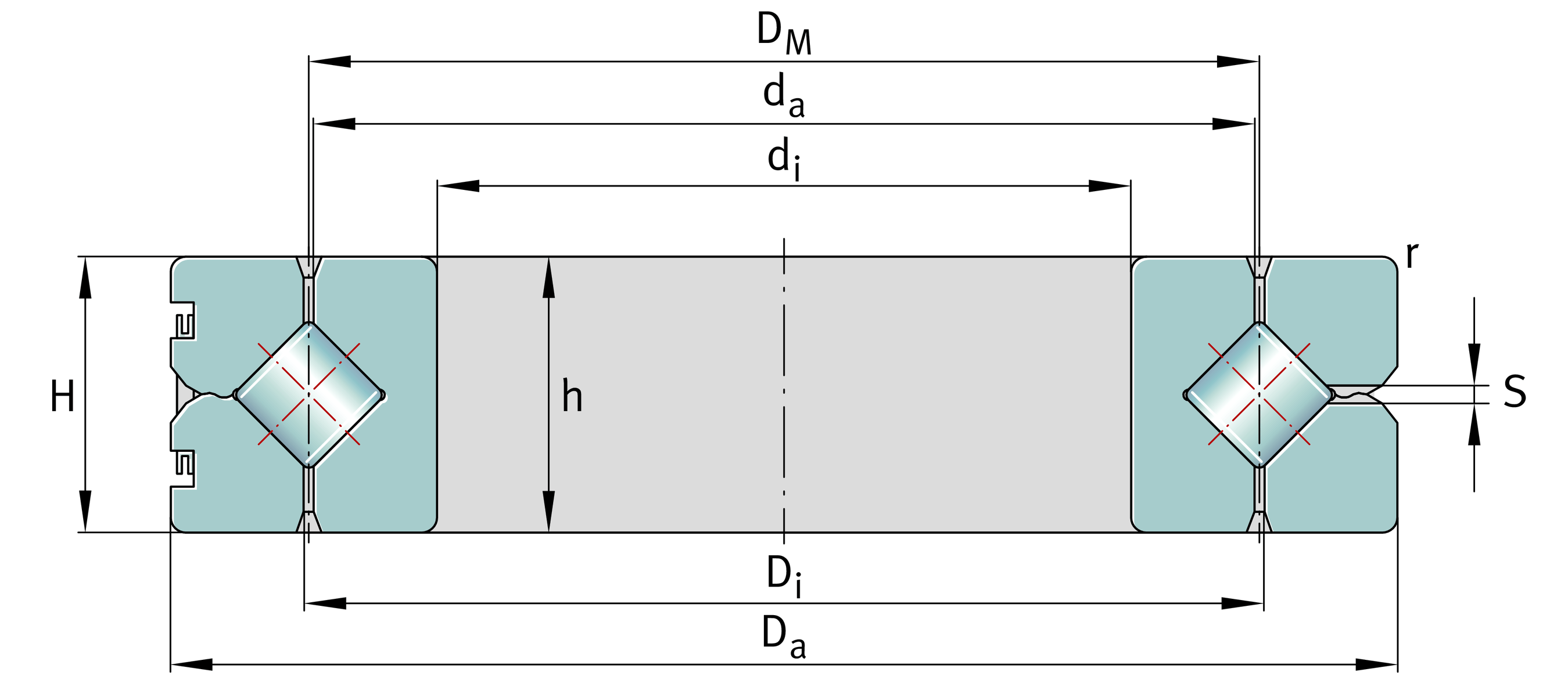

Dimensions
| Di | 102.5 mm | Inner diameter outer ring |
| DM | 102 mm | rolling element pitch circle diameter |
| da | 101.5 mm | outer diameter inner ring |
| h | 13 mm | height of individual ring |
0 mm | Height of individual ring upper tolerance | |
-0.01 mm | Height of individual ring lower tolerance | |
| rmin | 1 mm | chamfer dimension |
| S | 1.2 mm | diameter of lubrication hole |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 80 °C | Operating temperature max. |
Calculation factors
0.01 mm | Running accuracy, radial | |
0.01 mm | Running accuracy, axial | |
| RLOmax | 0.003 mm | Low clearance: Radial clearance |
| RLOmax | 0.006 mm | Low clearance: Preload |
| Ca | 26,500 N | Basic dynamic load rating, axial |
| C0a | 87,000 N | Basic static load rating, axial |
| Cr | 18,900 N | Basic dynamic load rating, radial (for radial load only) |
| C0r | 43,000 N | Basic static load rating, radial (for radial load only) |
| NG oil | 1,500 1/min | Limiting speed for oil lubrication with normal clearance |
| NG Grease | 750 1/min | Limiting speed for grease lubrication with normal clearance |
| NG oil | 750 1/min | Limiting speed for oil lubrication with preload |
| NG Grease | 375 1/min | Limiting speed for grease lubrication with preload |
61818 | Dimensions identical to ISO dimension series 18 |
Your current product variant
| Preload | R+4/-8 | equals RL0 standard |
