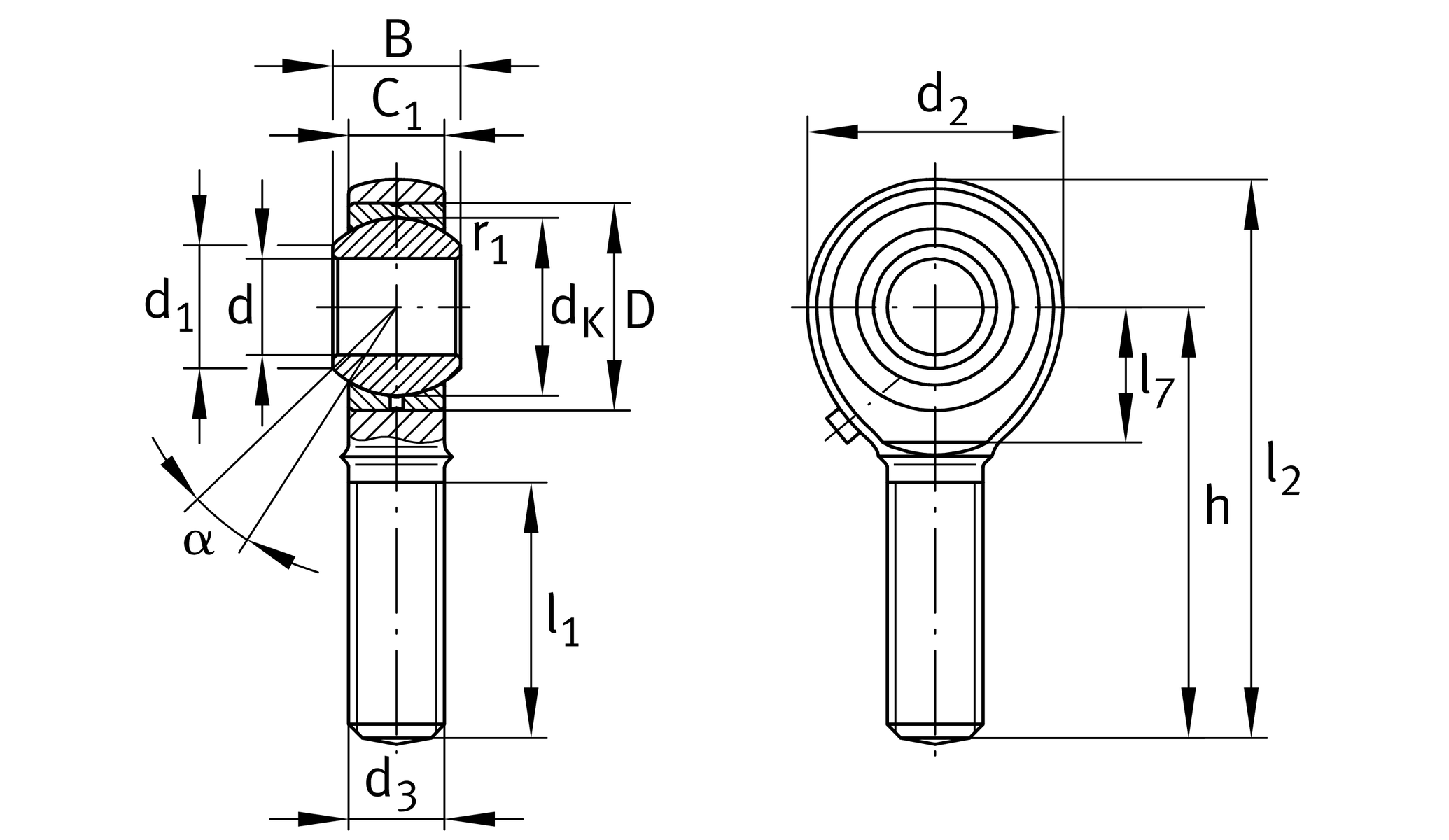

Main Dimensions & Performance Data
| Cr | 17,100 N | Basic dynamic load rating, radial |
| C0r | 32,000 N | Basic static load rating, radial |
| d | 14 mm | Bore diameter bearing |
| D | 28 mm | Outside diameter bearing |
| l2 | 78 mm | Total length external thread head |
| B | 19 mm | Width inner ring |
| d2 | 36 mm | Outer eye diameter |
| ≈m | 0.157 kg | Weight |
Mounting dimensions
| d1 | 16.8 mm | Outer flange diameter inner ring |
| r1smin | 0.3 mm | Edge Spacing |
Dimensions
| dK | 25.4 mm | Ball diameter |
| d3 | M14 | Thread size |
| h | 60 mm | Shank Length External thread rod |
| C1 | 13.5 mm | Width of the rod end |
| α | 16 ° | Tilt angle |
| l1 | 36 mm | Shank Length External thread head |
| l7 | 18 mm | Distance drilling with/shaft start |
| dOT | 0.018 mm | Bore diameter bearing, upper tolerance |
| dUT | 0 mm | Bore diameter bearing, lower tolerance |
| dT | H7 | Bore diameter bearing, tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| BUT | -0.12 mm | Width inner ring, lower tolerance |
| Gr | 0 - 0,035 | Radial Clearance |
| Grmax | 0.035 mm | Radial clearance, maximum |
| Grmin | 0 mm | Radial clearance, minimum |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 250 °C | Operating temperature max. |
Your current product variant
| Sealing | Without |
